t bend - Mandrel Bending Machines
with servo-electric motors for better efficiency.



  • High tech bending freedom without any limitations
  • Industry 4.0 / t project
  • Accurate, great performance and fast
  • Durable, also in multi-shift operations

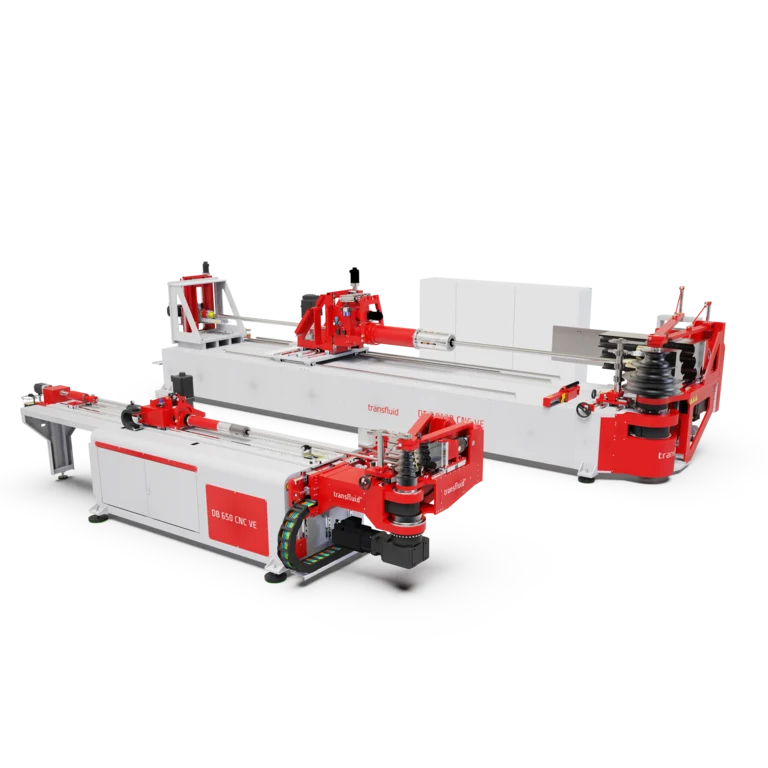

transfluid® t bend DB CNC-VE

All-electric CNC mandrel tube bending machines.



The DB CNC VE series are absolute powerhouses of machines. They can bend tubes in round, oval, square, rectangular, and other special profile shapes. In addition, they are known for outstanding rigidity and power which is unmatched in the market for this size of machines.

Explore our machine virtually

Move the slider and click the info points for more information.

Regardless of the material, the end result is always perfect.

Our robust machine construction means customers have come to expect decades of heavy use. This machine is supplied with an easy-to-use Siemens CNC control system, which utilizes an intuitive program in a Windows based operating system set up for networking.



For better efficiency. The electric axes can be programmed in synchronicity to give optimum cycle times.Tools for bending on multiple levels with automated tool change makes it possible to achieve various radii and the most complex geometries on tubes. Also available with push bending function – the most complex bends become reality with great accuracy.

The right machine for your task

arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right

MANDREL BENDING MACHINES Full electric with CNC-Control

Type: DB 622-CNC VE
Type: DB 630 CNC VE
Type: DB 642 CNC VE
Type: DB 650 CNC VE
Type: DB 2060 CNC VE
Type: DB 2080 CNC VE
Type: DB 20100 CNC VE
Type: DB 40130 CNC VE
Type: DB 40150 CNC VE
Range 3/16" - 7/8"
Max. capacity 7/8" x .72" (mild steel)
7/8" x .049" (stainless steel)
5/8" x .049" (square mild steel)
Max. Radii 2 5/8"
Usable length 6.5 ft (standard)
10 ft
15 ft
20ft (special)
Speed of bending axis 300 °/sec.
Range 3/16" - 1 1/16"
Max. capacity 1 1/16" x .72" (mild steel)
1 1/16" x .049" (stainless steel)
3/4" x .1" (square mild steel)
Max. Radii 3.5"
Usable length 6.5 ft (standard)
10 ft
15 ft
20 ft (special)
Speed of bending axis 275 °/sec.
Range 1/4" - 1 5/8"
Max. capacity 1 5/8" x .120" (mild steel)
1 5/8" x .049" (stainless steel)
1" x .1" (square mild steel)
Max. Radii 6.6"
Usable length 6.5 ft 10 ft (standard)
15 ft 20 ft (special)
Speed of bending axis 180 °/sec.
Range 1/4" - 2"
Max. capacity 2" x .120" (mild steel)
2" x .072" (stainless steel)
1 3/8" x .157" (square mild steel)
Max. Radii 6"
Usable length 6.5 ft
10 ft (standard)
15 ft
20 ft (special)
Speed of bending axis 180 °/sec.
Range 1/4" - 2 1/2"
Max. capacity 2 1/2" x .072" (mild steel)
2 1/2" x .049" (stainless steel)
1 3/8" x .157" (square mild steel)
Max. Radii 6"
Usable length 6.5 ft
10 ft (standard)
15 ft
20 ft (special)
Speed of bending axis 180 °/sec.
Range 1/4" - 3 1/16"
Max. capacity 3 1/16" x .120" (mild steel)
3 1/16" x .072" (stainless steel)
2 1/8" x .157" (square mild steel)
Max. Radii 9.4"
Usable length 10 ft (standard)
15 ftmm
20 ft (special)
Speed of bending axis 100 °/sec.
Range 3/4" - 4"
Max. capacity 4" x .120" (mild steel) 4" x .120" (stainless steel) 2.75" x .157" (square mild steel)
Max. Radii 12"
Usable length 10 ft (standard) 15 ft 20 ft (special)
Speed of bending axis 80 °/sec.
Range 3/4" - 5"
Max. capacity 5" x .120" (mild steel)
5" x .095" (stainless steel)
3.5" x .196" (square mild steel)
Max. Radii 15.4"
Usable length 15 ft
20 ft (special)
Speed of bending axis 65 °/sec.
Range 3/4" - 6"
Max. capacity 6" x .120" (mild steel) 6" x .095" (stainless steel) 3.5" x .196" (square mild steel)
Max. Radii 17.7"
Usable length 15 ft (standard) 20 ft (special)
Speed of bending axis 65 °/sec.

Your benefits at a glance

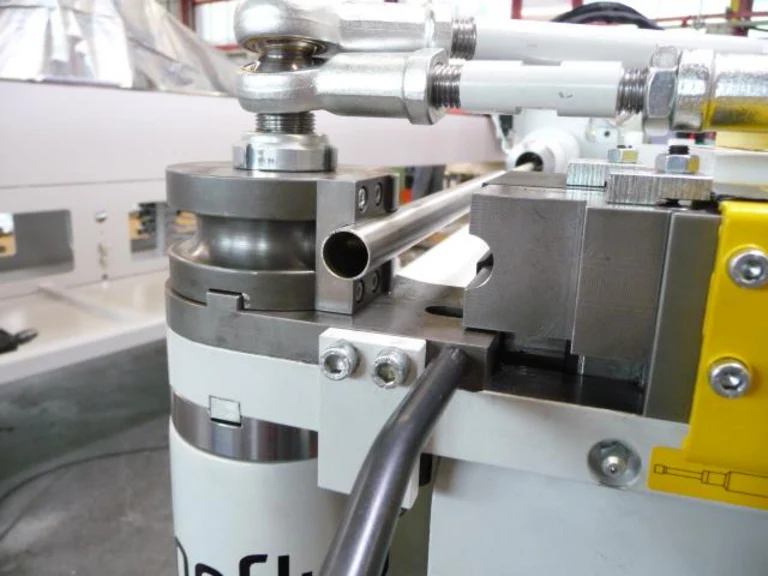

  • MULTILEVEL BENDING

    Each bending head can be equipped with minimum two tool sets, e.g. with different bending radii or form-clamps, max. changing height for standard machine is 60 mm.

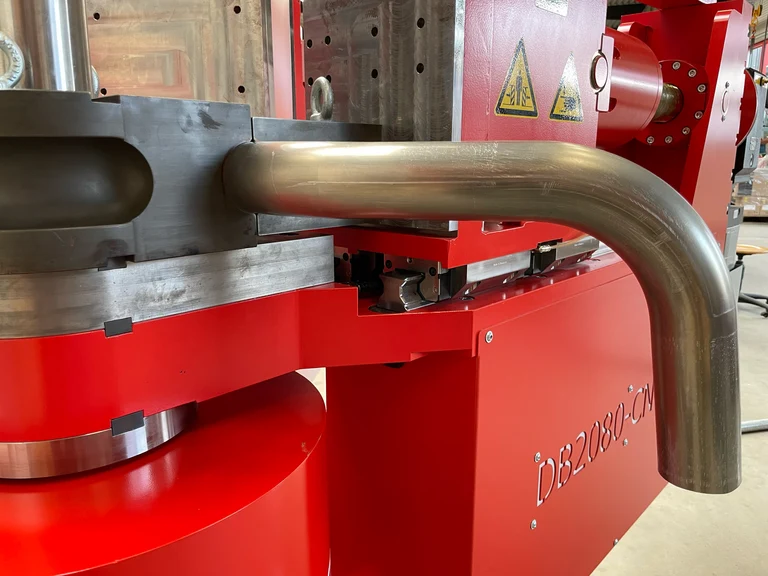

    Bending tools for tubes with already formed tube ends.

  • CUSTOM BENDING TOOLS

    Bending tools for tubes with already formed tube ends

  • SOLID MATERIAL

    Adaptation of the bending machine for bending busbars/ conductor rails/ flat conductors.

  • BENDING MANDRELS

    Bending mandrels in different contours or materials.

  • FULLY ELECTRIC

    100% electric drive of all 11 axes. Compared to hydraulic machines, energy savings of up to 50% can be achieved.

  • CONTROL UNIT

    The control unit is equipped with high-quality electronic components from leading suppliers. This ensures a long service life and a reliable supply of spare parts over a long period of time.

  • PUSH BENDING

    Boost and Multi-Stack option to allow maximum flexibility on part production. The machine is capable to do multi radius parts, push bending and tight radius below 1xD. This versatility sets the machine for any industry challenges.

  • Solid welded construction

    This series will win you over with its special stability, performance very durable machine design.

Images 1/0

COST-EFFECTIVE MATERIAL LOADING

We offer a great variety of loading systems for all the machines, dependent on the material, tube diameter and tube length. Tubes that have already been formed and with added components can also be loaded without any issues. The appropriate orientation is therefore very important, when loading the tube into the production cell. External workpieces, such as nuts, flanges, supporting sleeves can be added to the system in a controlled manner and included in any subsequent processing steps. A great variety of loading volumes is possible.

Powerful Software

Go directly from CAD to the tube bender with t-project tube bending software and upload functions. The virtual bending simulation determines exact bending timings and cutting lengths; it also tests tube geometries in advance for feasibility. Tube data and bending results are documented with accuracy and they can then be replicated 100%. Easy programming from the desk, fast estimating of new projects, collision testing before running the machine and direct upload of the tube bending sequence to tube bender.

Catalog Download

transfluid® offers the complete package for the production of tubing.

Download our new catalogue.
