Loading systems

We offer a great variety of loading systems for all the machines, dependent on the material, tube diameter and tube length. Tubes that have already been formed and with added components can also be loaded without any issues. The appropriate orientation is therefore very important, when loading the tube into the production cell.



External workpieces, such as nuts, flanges, supporting sleeves can be added to the system in a controlled manner and included in any subsequent processing steps. A great variety of loading volumes is possible.

Various loading systems in operation:

  • Loading system

    Alignment station

  • Loading system

    Loading table

  • Loading system

    Conveyor feeder

  • Loading system

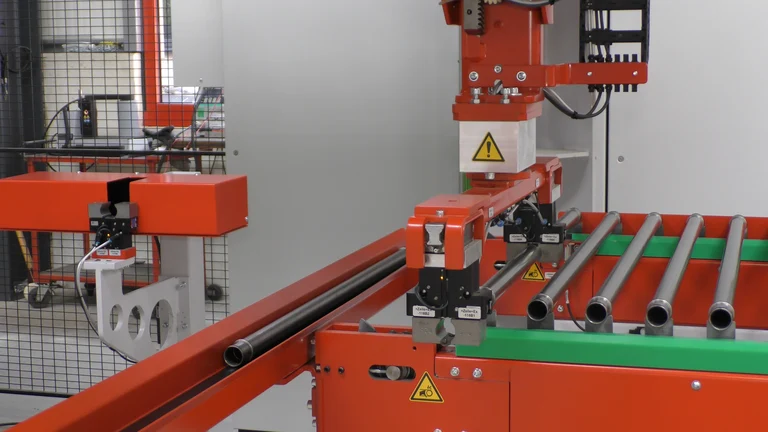

    Chain feeder

  • Loading system

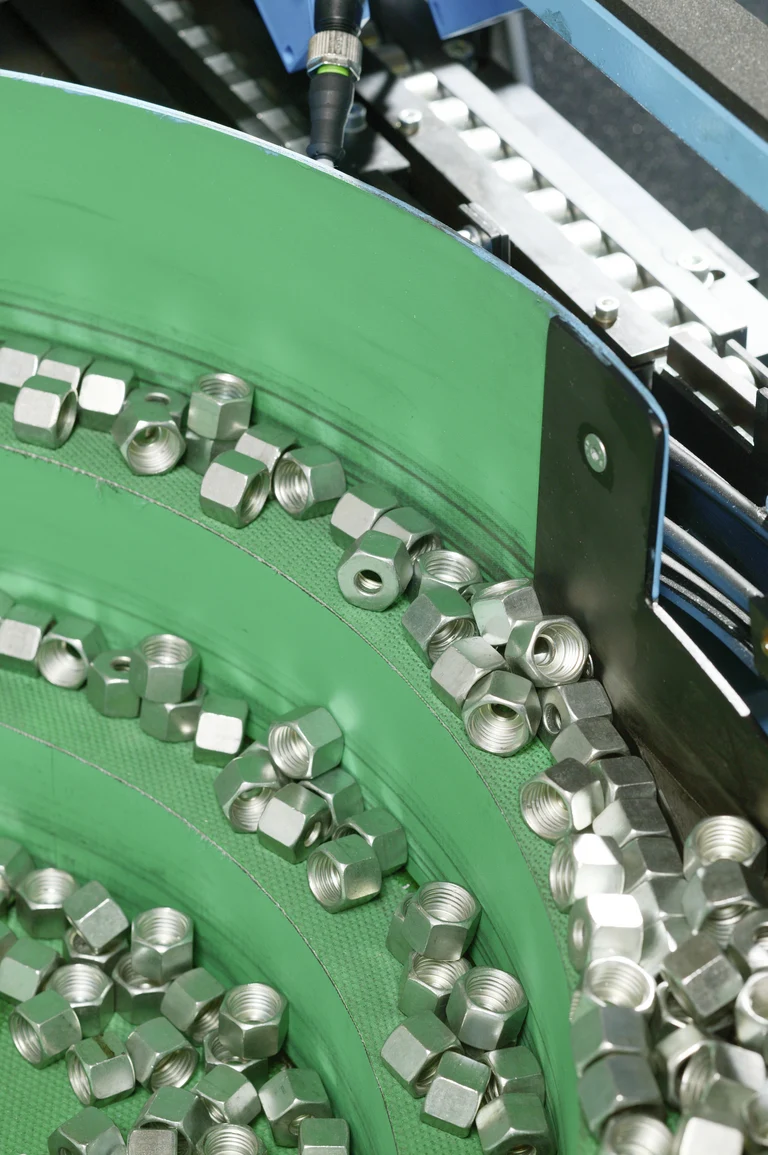

    Bowl feeder

  • Loading system

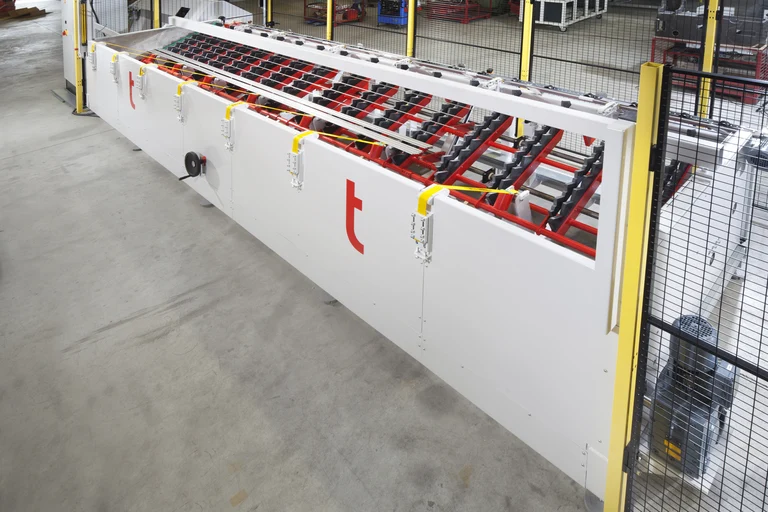

    Step feeder

  • Loading system

    Swivel arm feeder

Images 1/0

Cost efficient loading

Simple and flexible. Transfluid offers a great variety of loading systems for different materials, tube diameters and tube lengths. We have developed a simple and more cost efficient loading unit specifically to add even greater flexibility to our CNC tube bending machine; it offers our clients the option of using the machine as a small production cell with automated unloading, for instance with a conveyor belt.

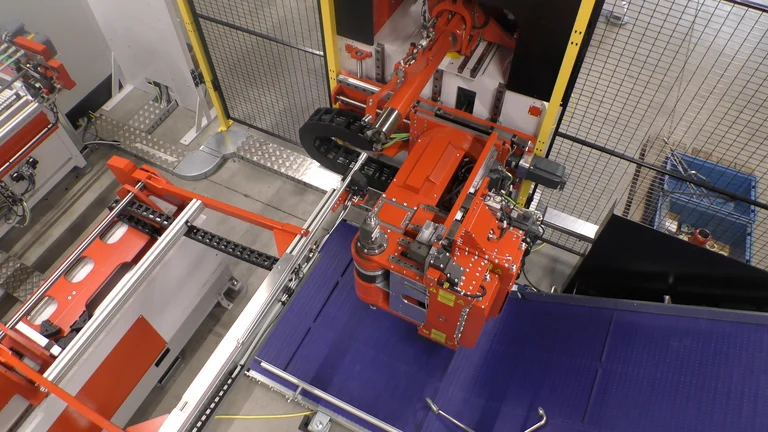

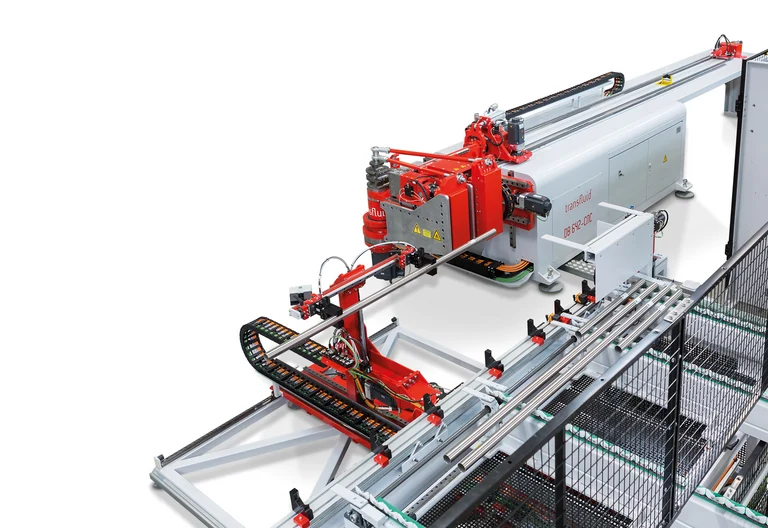

The feeding magazine is filled with the necessary number of units either by the production staff or a robot. The guiding rails can be adjusted quickly to fit the different tube lengths and diameters. The tube is transferred to the gripper and the machine and fed into the bending process.



The loading system can be equipped with various sensors, if the customer requests it, so that the loading can be controlled and monitored digitally. This is particularly useful in the production of different tube geometries for special projects or spare parts.
