t form - Type REB axial forming machines
Our solution for complex forming geometries!

  • For extreme forming degrees with highest precision
  • Modular design with up to 6 forming stages
  • Compression power of up to 1,300 kN
  • Low energy consumption and highest precision due to servo drives

transfluid® t form REB AXIAL FORMING MACHINES
Our solution for complex forming geometries!

Our type REB axial forming machines, with their compression power of up to 287,000 lbs, are particularly well-suited to effortlessly master complex geometries. With up to 6 forming steps in combination with an additional clamping unit, they will satisfy almost all requirements. The operation is simple and intuitive with a touch panel. The sequence control makes each separate movement of the respective forming step user-friendly and fully programmable.



We offer the option to equip our systems with electric or hydraulic-numerical drives. These forming processes can be completed stepwise in transfer systems to achieve very short cycle times. Simultaneous axis movements ensure fast production processes and an efficient and highly dynamic production.



Getting flexible in tube end forming

Ideally suited for the production of challenging contours for sealing elements and for the generation of extremely good surfaces.

The right machine for your task

arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right

REB AXIAL FORMING MACHINES

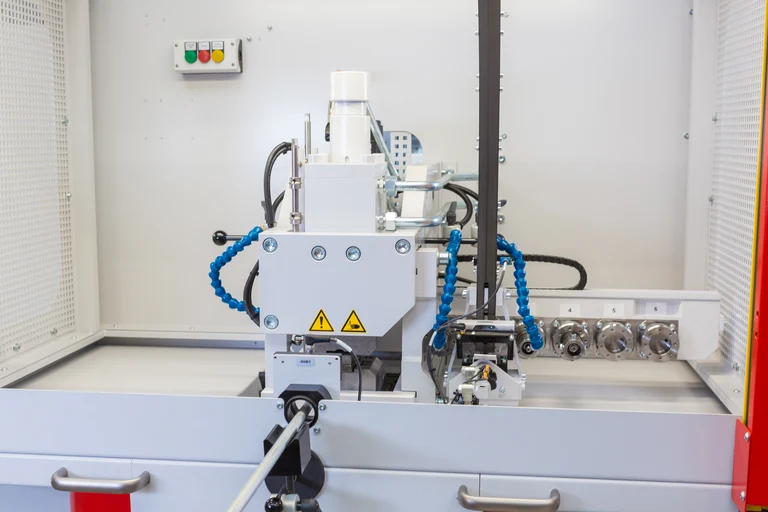

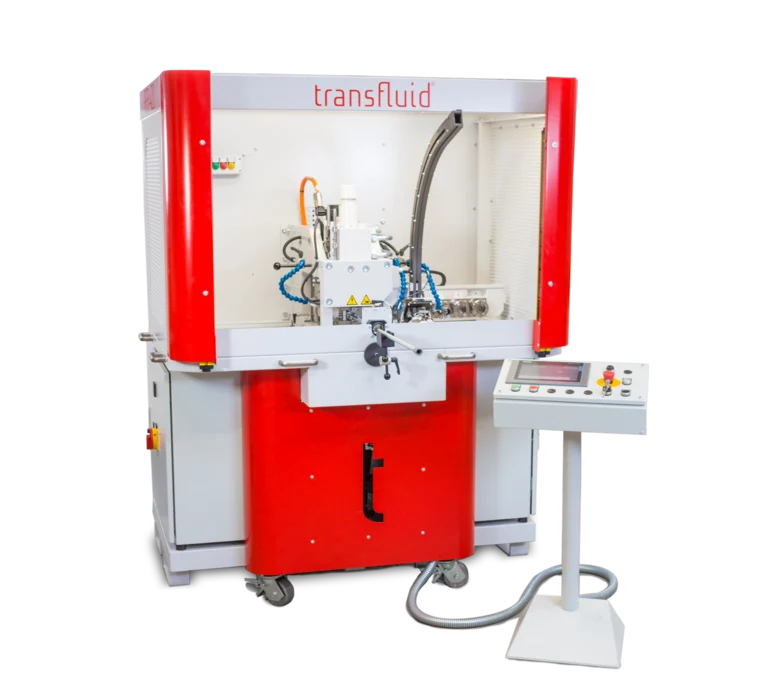

Type: REB 420
Type: REB 632

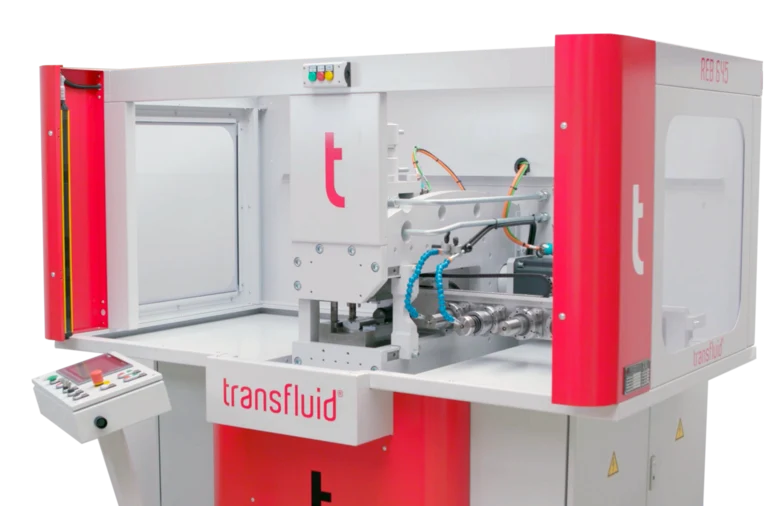

Type: REB 645
Type: REB 660
Max. capacity 3/16" - 3/4 in
Wall thickness .047" in
Cycle time stage 2 - 3 sec.
Forming length 2 3/8" in
Number of forming stages 3
Power 5 kW
Weight 3190 lb
L x W x H  59 x 59 x 79 in
Max. capacity 1/4" - 1 1/4" in
Wall thickness .058" in
Cycle time stage 2 - 3 sec.
Forming length 3 1/8" in
Number of forming stages 3
Power 10 kW
Weight 4180 lb
L x W x H 73 x 63 x 79 in
Max. capacity  1/4" - 1 3/4" in
Wall thickness .095" in
Cycle time stage 3-5 sec.
Forming length  3 1/2" in
Number of forming stages 3
Power 10 kW
Weight  4620 lb
L x W x H 73 x 71 x 79 in
Max. capacity 1/4" - 2 3/8" in
Wall thickness .095" in
Cycle time stage  5-8 sec.
Forming length  7" in
Number of forming stages 3
Power 10 kW
Weight  5280 lb
L x W x H  83 x 71 x 79 in

Your benefits at a glance

  • MODULAR DESIGN

    With up to 6 forming steps in combination with an additional clamping unit they will satisfy almost all requirements.

  • SERVOELECTRIC DRIVES

    All the drives are servoelectric by design and, if needed, CNC-operated.

  • FORMING DEGREES WITH HIGHEST PRECISION

    Our axial technology increase the possibilities of forming on tubes with minimal expenditure on tools.

  • EASY CONTROL VIA TOUCH PANEL

    In our SRM typeforming machines, all the settings are preloaded, so there is no longer any need for costly adjustments.

  • PERFECT TUBE END PROCESSING FOR ALREADY BENT TUBES.

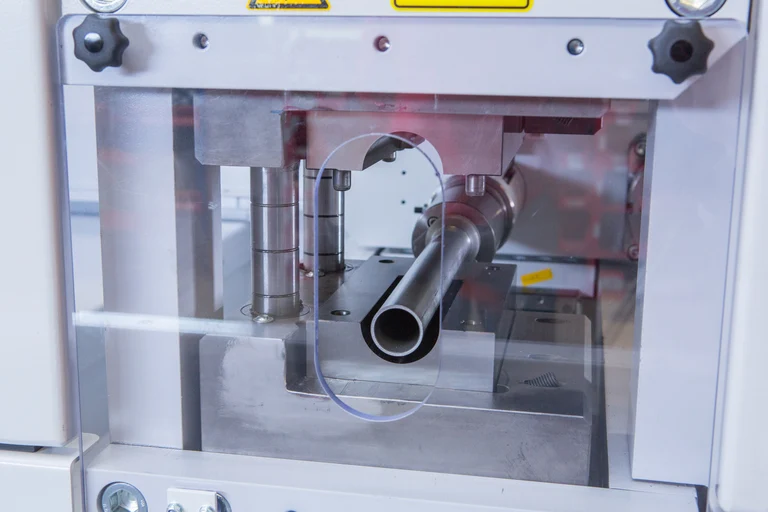

    The possible clamping lengths for machining are extremely short. This gives the user the possibility to always perform the forming after the bending process.

  • CHIPLESS CUTTING

    Different tool variants further expand the processing possibilities for chipless cutting or post-bending cutting.

Images 1/0

T FORM ABSOLUTE HIGH TECH:
WITH-AUTOMATIC-TOOL-DETECTION

transfluid have developed a solution with automatic tool detection for tube forming. Hence, the new axial tube forming machine form REB 645 allows for tube end forming with fast tool changes for complex geometries and extreme degrees of forming.

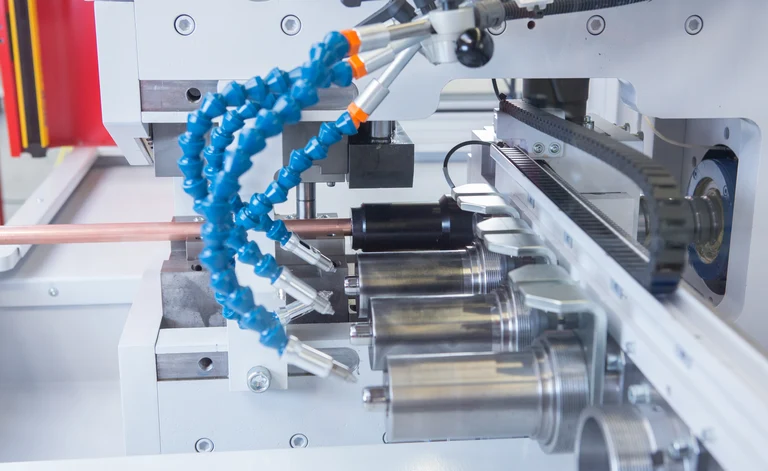

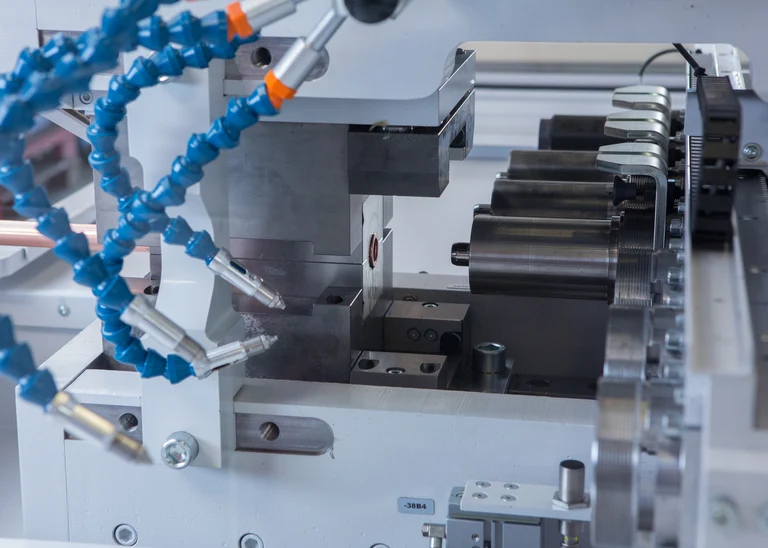

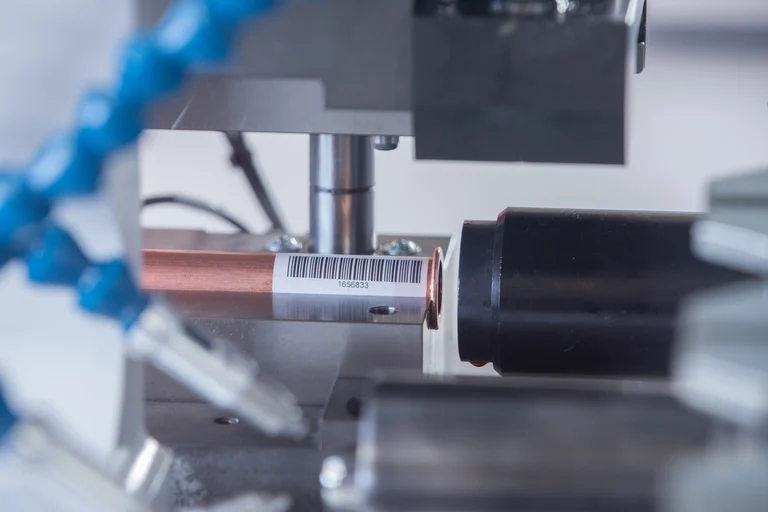

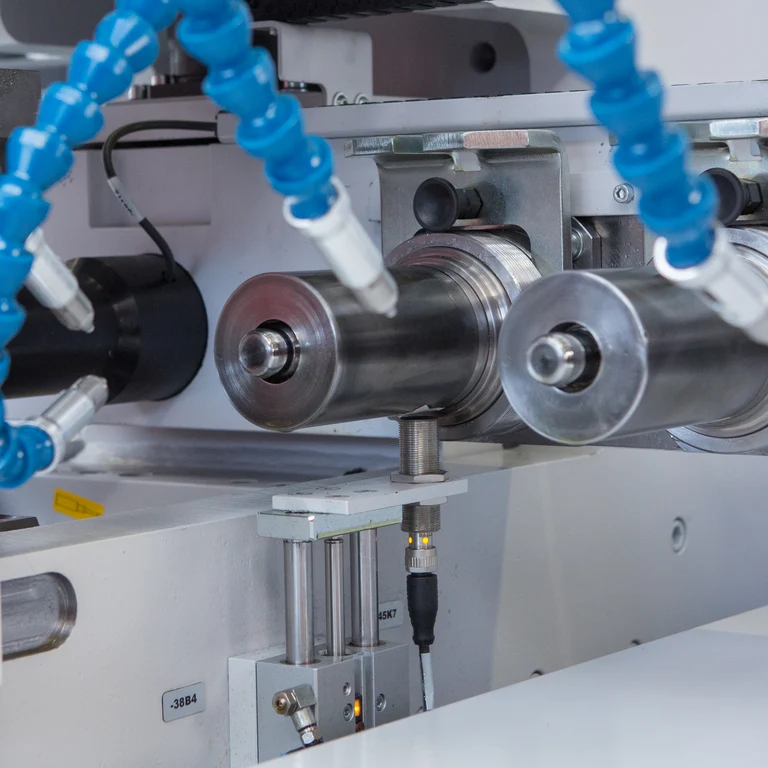

The starting point is a barcode scanning system. Using this system, the operation data of a tube with individual barcode can be easily read – for an end forming for example. For this purpose, all tools of the machine, which is equipped with 6 forming stations, have sensors (RFID). This ensures that the right programme and the appropriate tools are available. If the automatic inspection unit detects a wrong tool, the operating panel with data memory displays this information immediately. Here, the identification for the correct tool for the change is indicated as well. Using the convenient quick-connecting system of the transfluid solution with fork for fixing and locking bolt for securing the mount, the machine operator can directly change the tool and precisely perform the tube end forming afterwards.

PREPARED FOR INTEGRATION INTO PRODUCTION CELLS

The forming processes can be completed stepwise in transfer system to achieve very short cycle times. Simultaneous axis movements ensure fast production processes and an efficient and highly dynamic production.

EASY CONTROL VIA TOUCH PANEL

Setting of all parameters centrally in the machine control system, controlled positioning of the forming axis and the stop position.

The SRM is equipped with a completely electronic preselection of the flanging geometry. The stop position and all strokes and machining operations are servo-electrically controlled and can be called up via a touch panel.


Decisive for the exact machining time is which material is used and which shaping is to be implemented. The machine carries out the processing quasi automatically if it is possible to call up the tube size with the necessary process parameters. In individual cases, the clamping lengths for machining are 1 to 1.5 x the pipe diameter.

The solution for any geometry with outstanding sealing surfaces

Tailored to your individual requirements and needs, we create optimal solutions with our expertise.

Production samples

Catalog Download

transfluid® offers the complete package for the production of tubing.

Download our new catalogue.
