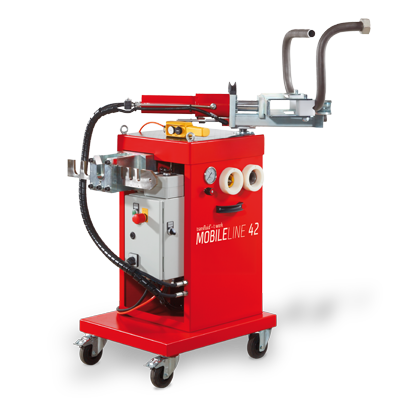

transfluid - t work MOBILELINE
Mobile bender
Mobile and compact - ready for immediate use without set-up time, flexible at any location- Expandable - wide range of special equipment for hydraulic tubes
- User-friendly - quick setup, easy operation
- Robust & durable - for reliable performance even under harsh conditions
The right machine for your task
Product video
Mobile and compact pipe processing
| Capacity | 1/4" - 1 5/8" |
| Max. Max. capacity | 1 5/8" x .191" (mild steel) 1 5/8" x .120" (stainless steel) 1" x .125" (Square section) |
| Max. Radius | 4.1" |

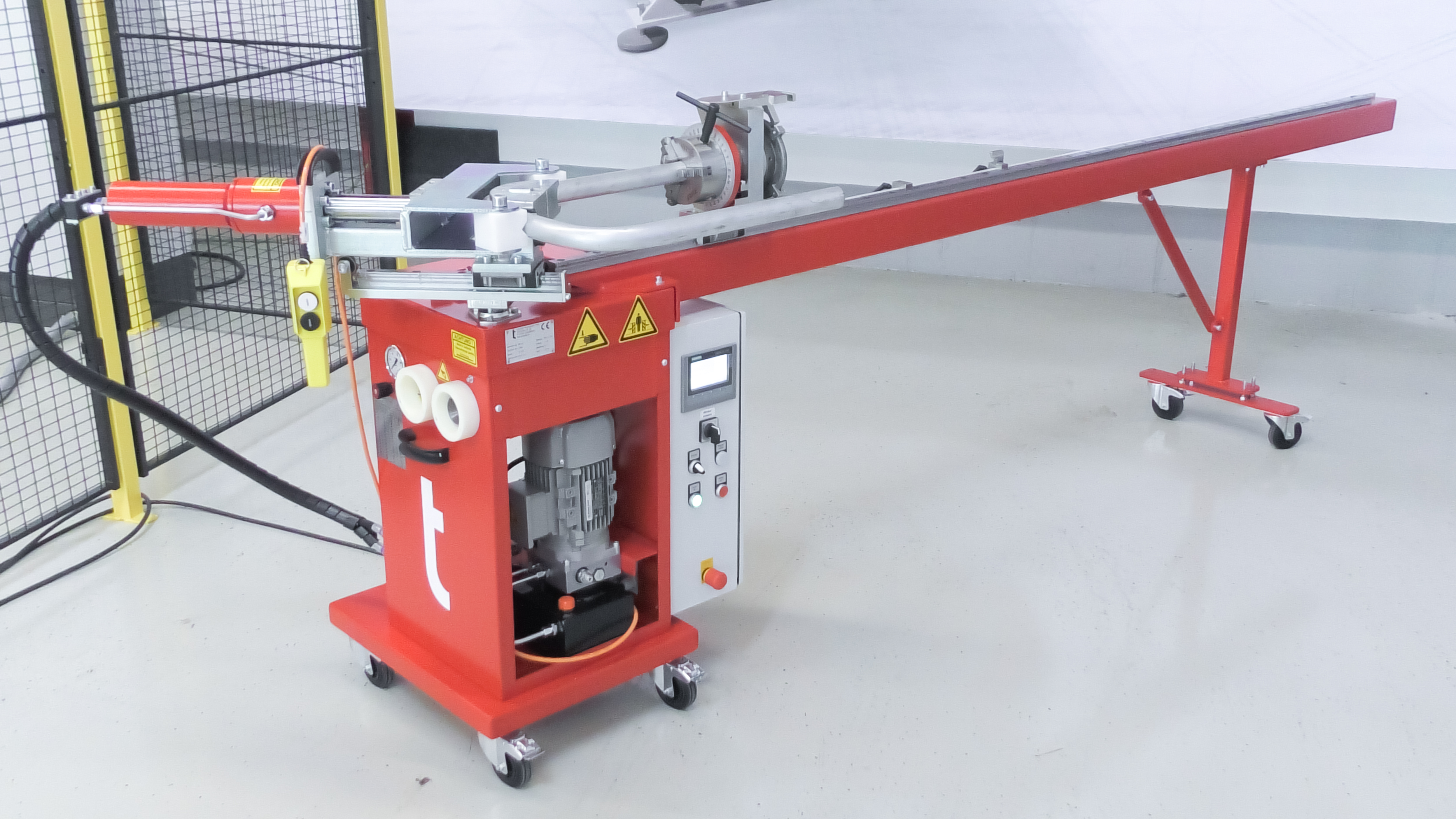

| Usable length | 5 ft 10 ft (standard) 15 ft 20 ft |
| Speed of the bending axis | 13 °/sec. |
| Capacity | 1/4" - 2 3/8" |
| Max. Capacity | 2 3/8" x .188" (mild steel) 1 3/8" x .120" (stainless steel) 1 1/2" x .120" (square mild steel) |
| Max. Radius | 15'' |
| Usable length | 15 ft 20 ft (standard) |
| Speed of the bending axis | 35 °/sec. |
| Capacity | 1/4" - 3 1/2" |
| Max. Max. capacity | 3 1/2" x .120" (mild steel) 3 1/2" x .072" (stainless steel) 2 1/8" x .157" (square mild steel) |
| Max. Radius | 9.4" |
| Usable length | 10 ft (standard) 15 ft 20 ft (special) |
| Speed of the bending axis | 100 °/sec. |
| Capacity | 1/4” – 4 1/2” |
| Max. Max. capacity | 4 1/2” x 3/16” (mild steel) 4 1/2” x 1/8” (stainless steel) on request (square mild steel) |
| Max. Radius | 14 3/16” |
| Usable length | 20 ft (standard) |
| Speed of the bending axis | 15 °/sec. |
Your advantages at a glance
-

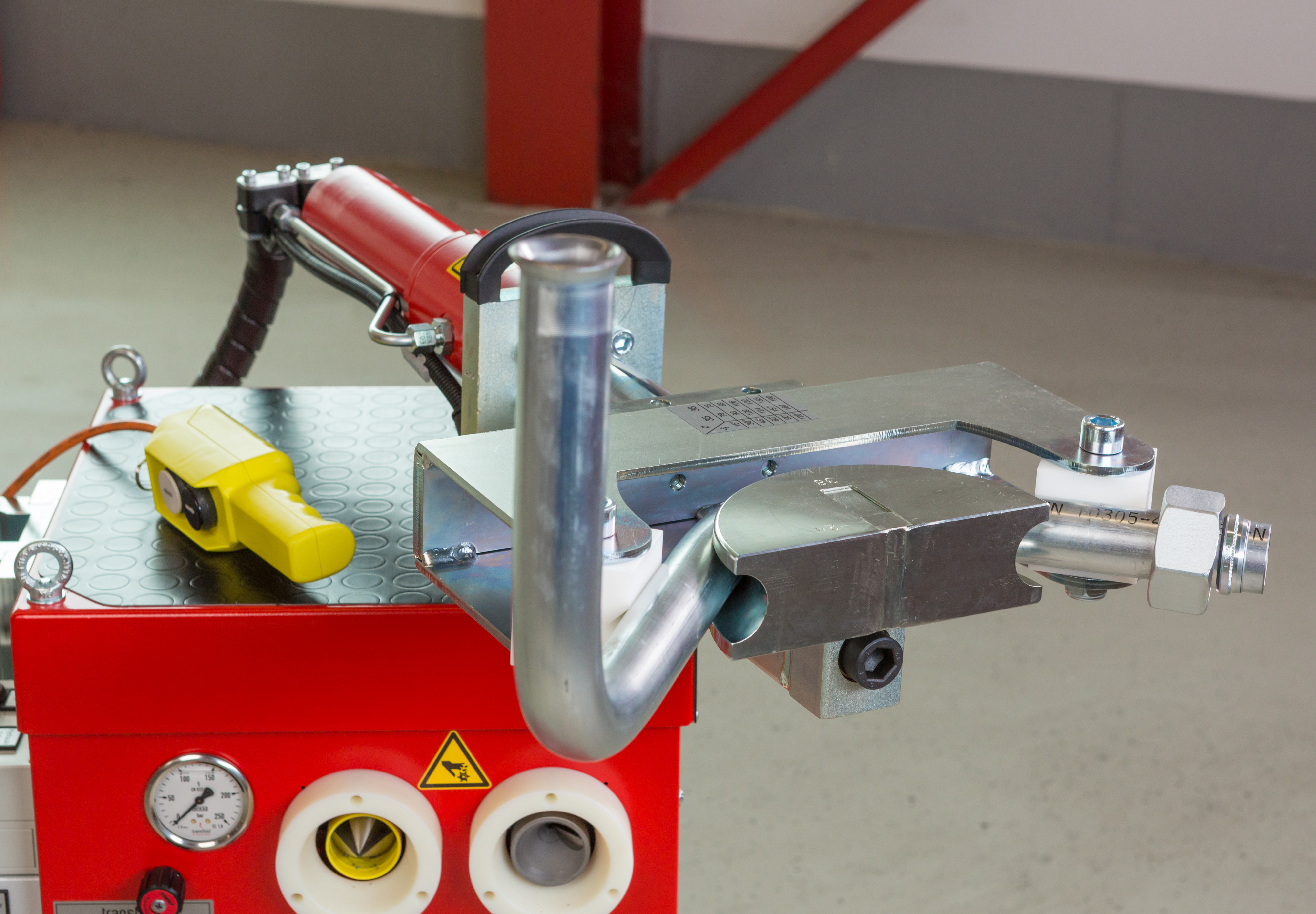

ROTATING BENDING UNIT
For ergonomic working, reduction of the tube swivel range
-
DEBURRING MACHINE
The separating cut is made directly after the last bend. No further re-cutting is required.
Capacity:
For tubes from 6 - 42 mm ø
Machine equipment/basic accessories:
Deburring tools
Tools are easy to sharpen and adjust
Internal deburrer with three HSS cutting edges
External deburrer with one HSS cutting edge
-
ATTACHMENTS FOR CUTTING RING ASSEMBLY
For tubes from 6 - 42 mm ø
Cutting ring pre-assembly for all common systems with minimum set-up effort thanks to combination tool
For pre-assembly of single and multi-cutting rings to DIN 2353
-
FOR INDIVIDUAL PIPING

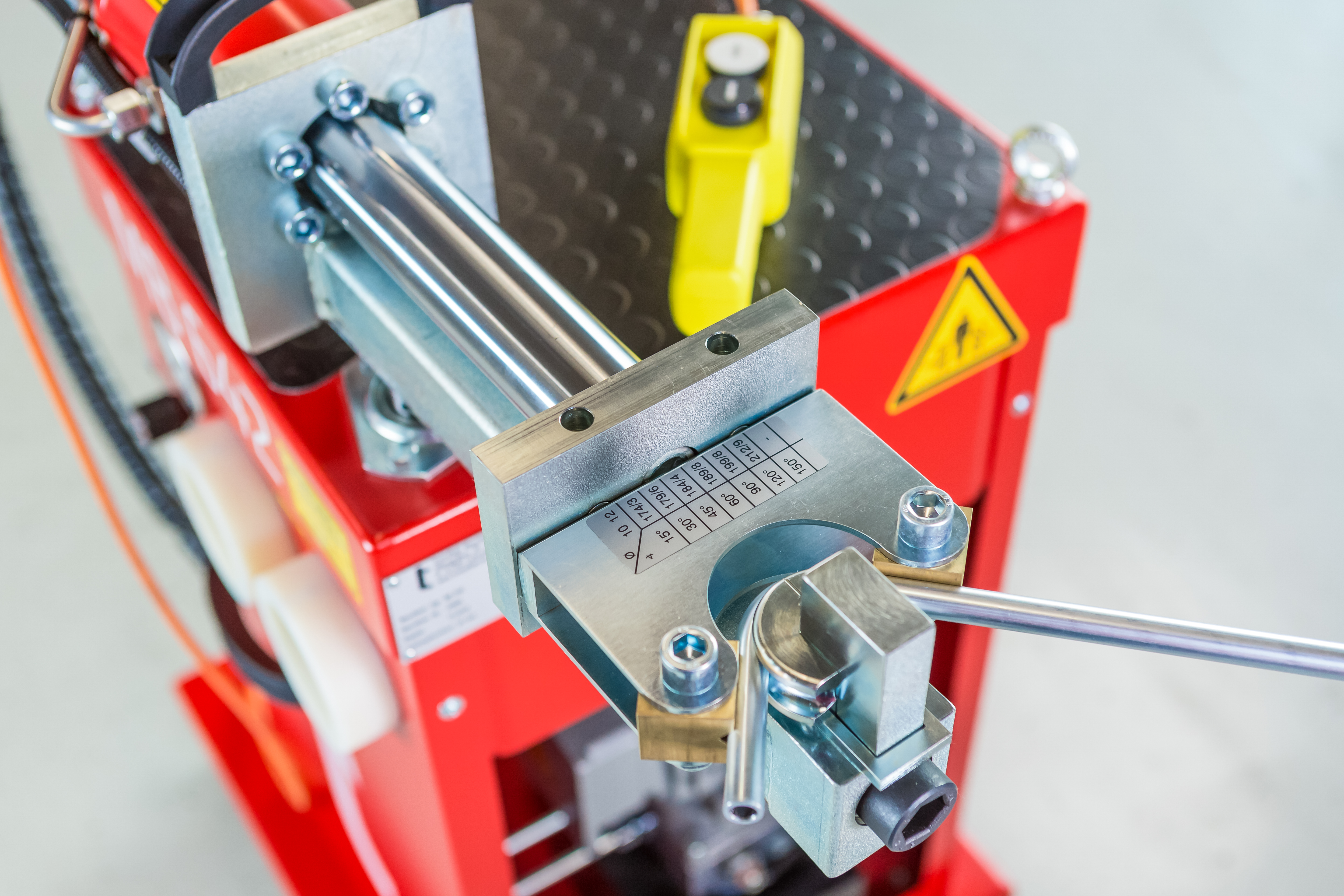

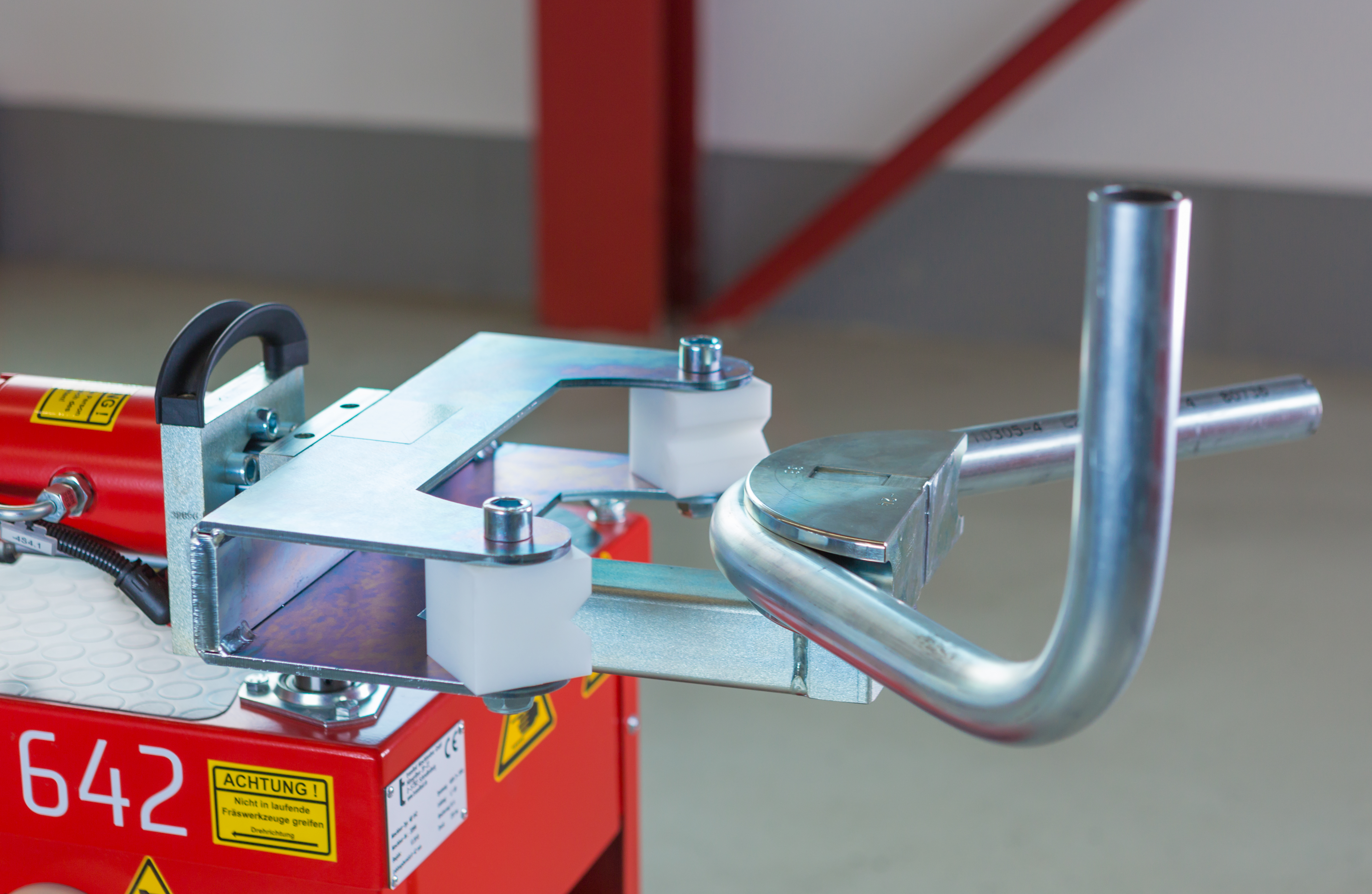

Optimized bend quality thanks to special tools for hydraulic pipelines
-
FOR STEEL AND STAINLESS STEEL TUBES
Product selection for tubes from 6-168 mm in various gradations
-

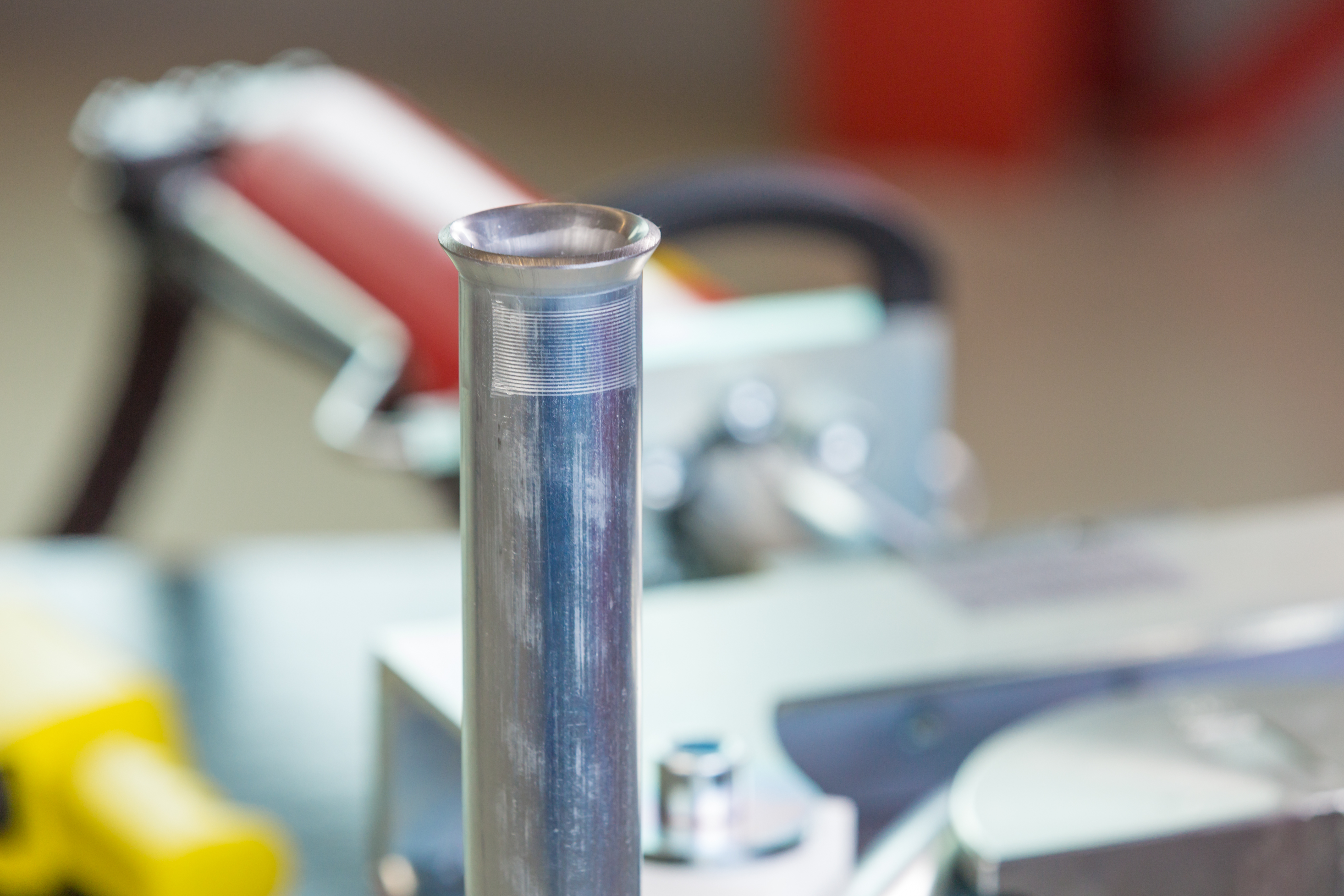

FLANGING FUNCTION 10° & 37
The standard tools available on the market can be used.
-
TWISTING ANGLE UNIT
For 360° rotation via scale, with 4 adjustable stops
With chuck for all dimensions up to 101.6 mm
Including length stop device with scale and 4 adjustable stops
Usable length 6 m
-

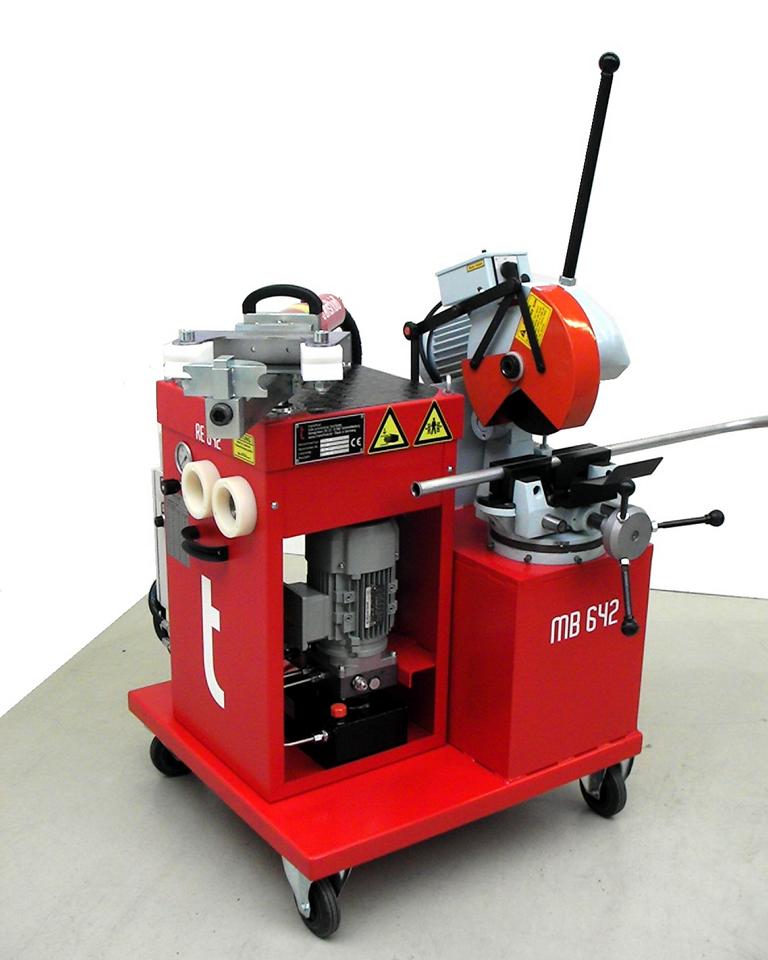

CHOP SAW
Saw attachment for right-angled cuts.

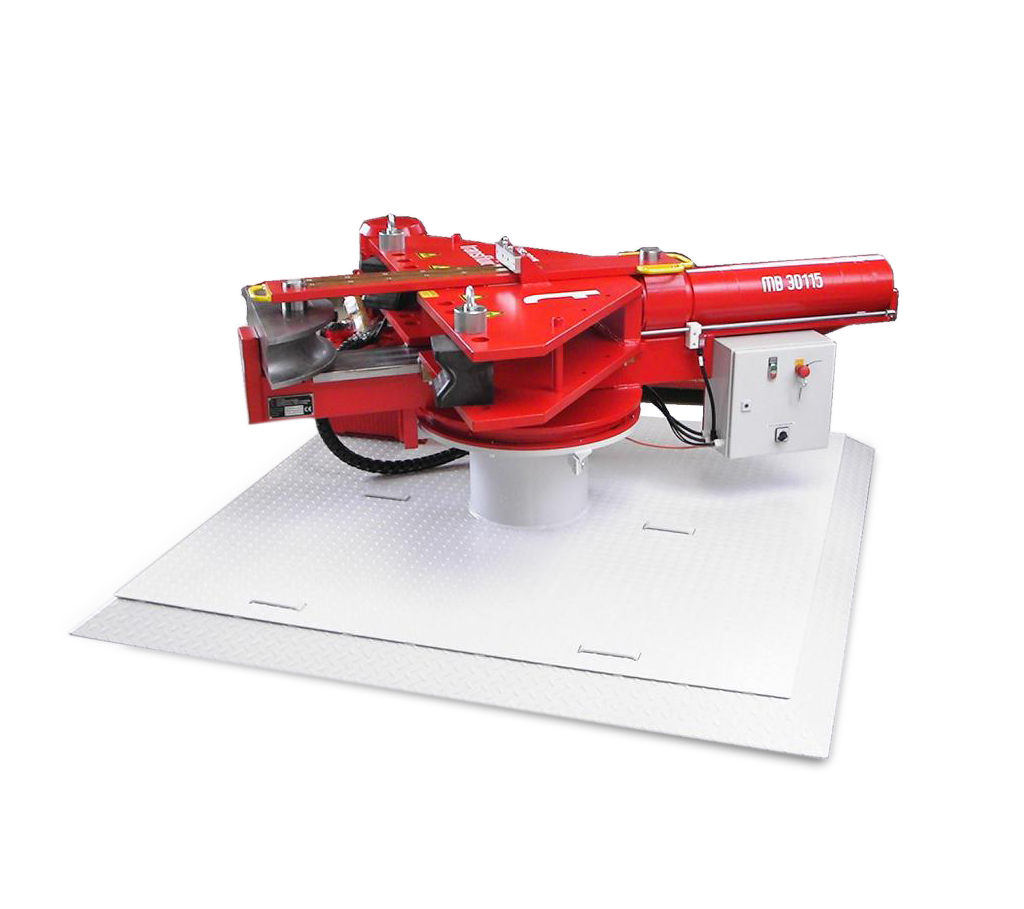

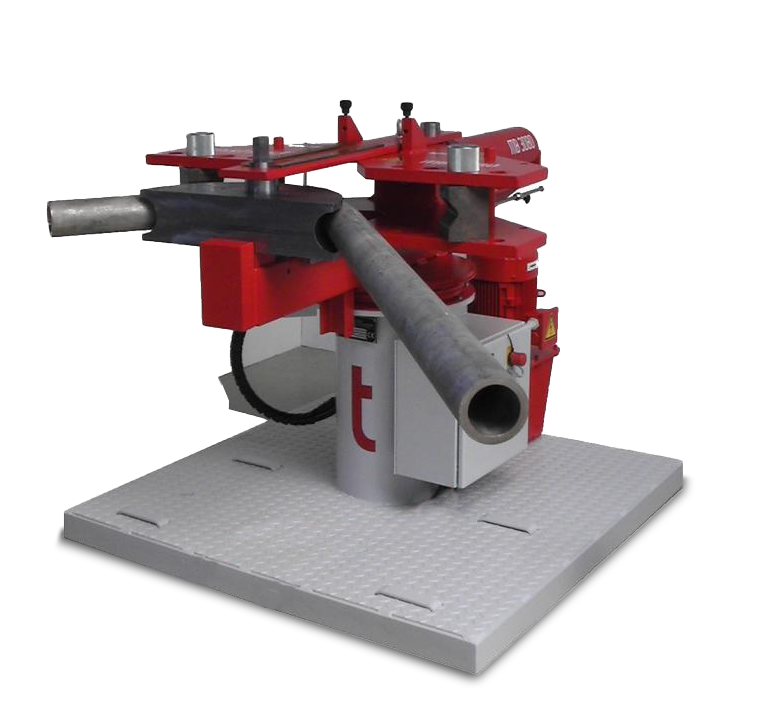

STABLE, FLEXIBLE AND ECONOMICAL
This series impresses with its particular stability and performance. Individual pieces and small batches can be produced extremely economically with this machine concept. The use of high-quality components ensures the longevity of the machine.

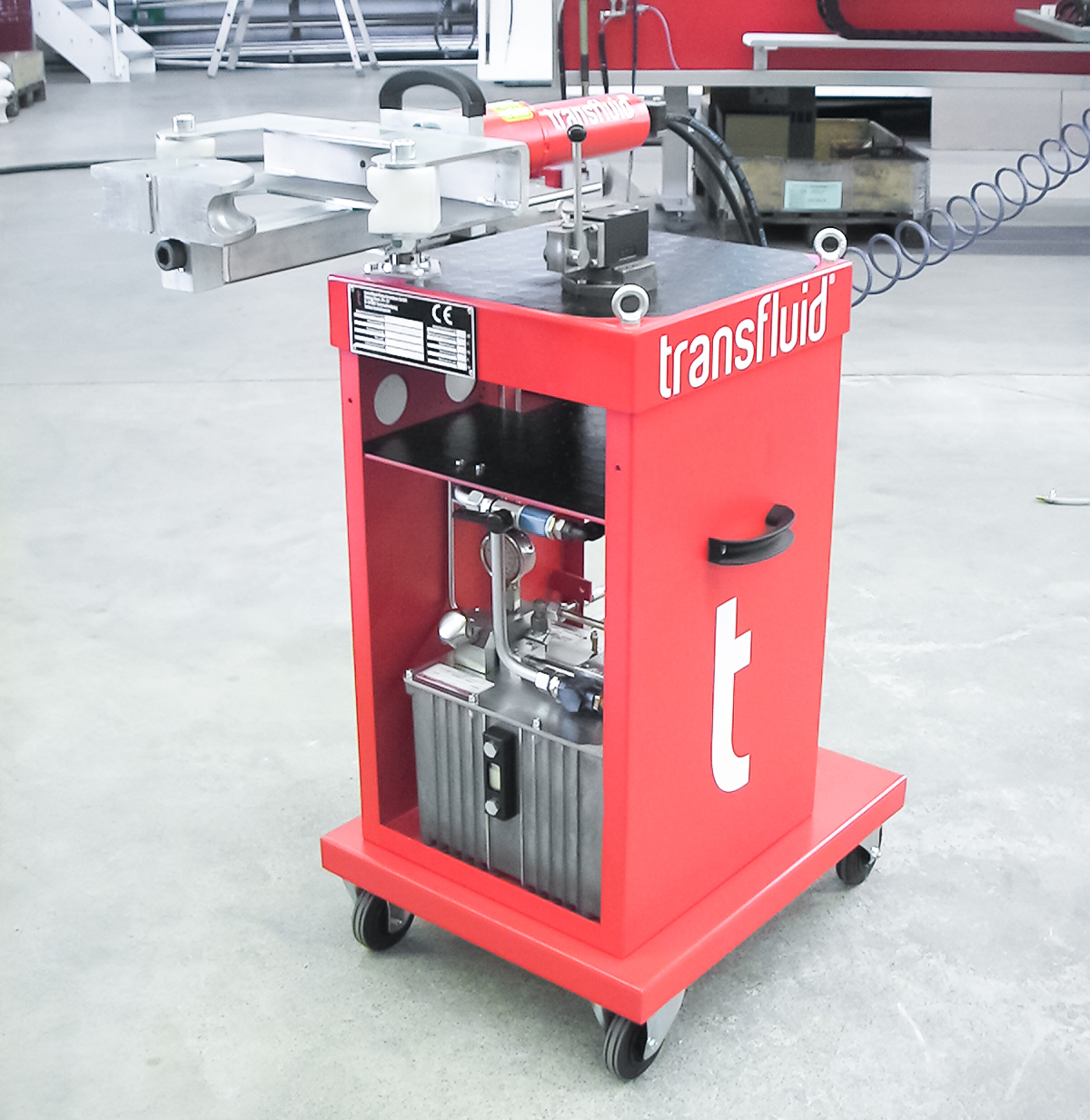

ALTERNATIVE DRIVE
A pneumatically driven version for offshore applications is available as an option.
CATALOG DOWNLOAD
transfluid offers the complete package for the production of tubes.
Download our new catalog.
