transfluid - t cut ROTOLINE
Chipless orbital cutting systems

Automatisierte transfluid t cut ROTOLINE Rohrtrennanlage mit Zuführsystem für präzises, spanloses Orbitaltrennen von Metallrohren in der Serienfertigung.
  • Clean cut surfaces - low burr, optimized, without chips, without contamination
  • Precision cuts - shortest cutting lengths from 25 mm possible
  • High cycle output - up to 2,000 cuts per hour (from 55 mm with tear function)
  • Modular design - loading systems, coil feed, scanner, labeler or laser marking
  • Perfect cut without collapse - two clamping units that pull the tube apart

EFFICIENTLY SEPARATED.

t cut ROTOLINE - Fast. Clean. Economical.

The t cut ROTOLINE stands for cutting technology at the highest level. With its chipless orbital cutting principle and the tear function, it delivers smooth, optimized cut surfaces with minimal burrs. This makes it the ideal solution for industrial applications where speed, process reliability and cutting quality are paramount.



The t cut ROTOLINE guarantees precise, clean and economical cuts in record time. A robust design ensures a long service life, maximum reliability and safe continuous operation.



Whether series production or flexible small batch production - these machines ensure maximum productivity and quality.


t cut ROTOLINE - efficiently separated.

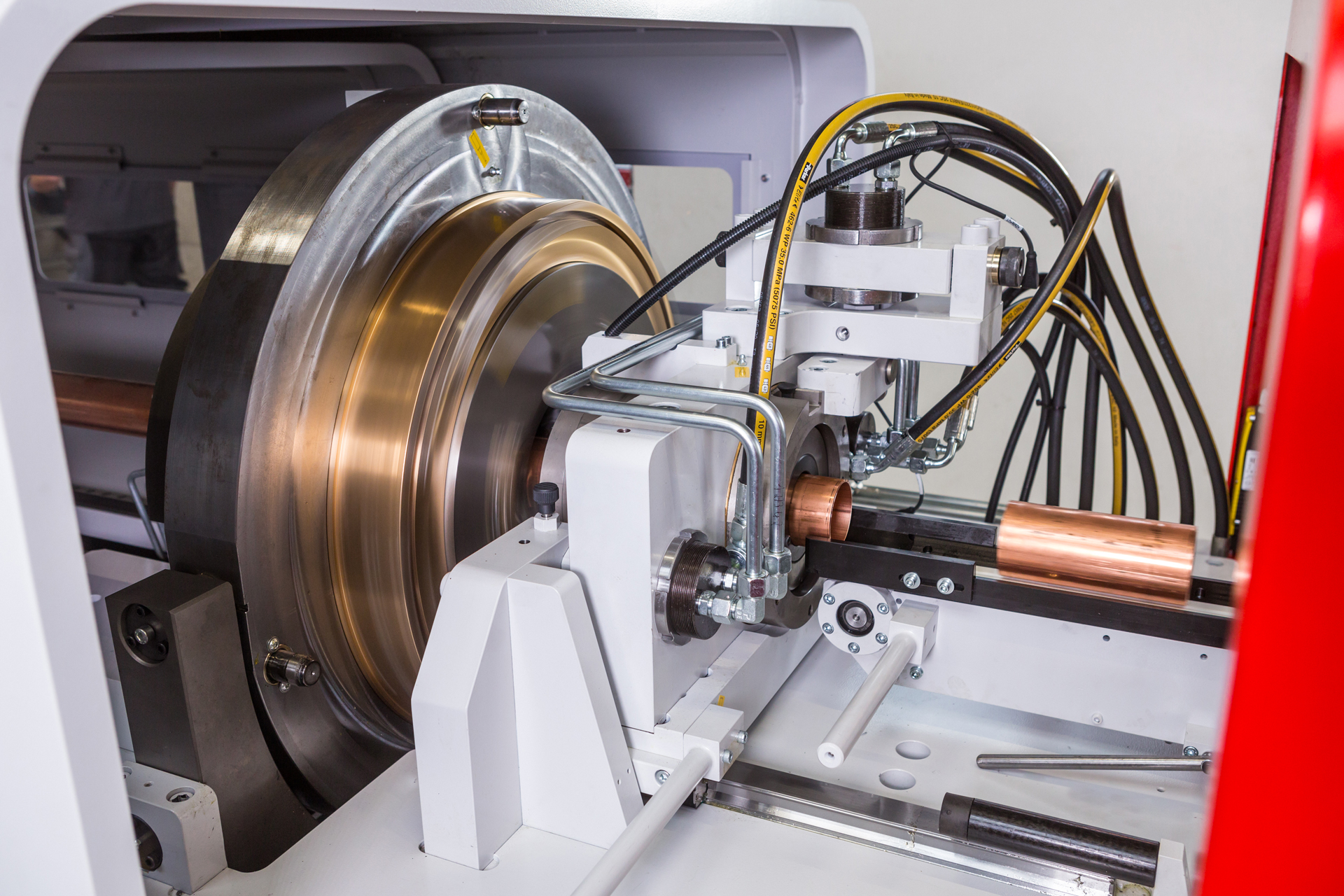

Innenansicht einer orbitalen Rohrtrennmaschine mit rotierendem Schneidrad und automatischer Zuführung eines Kupferrohrs.

PERFECT CUTS WITH MAXIMUM PRECISION

All transfluid machines deliver the highest cutting quality and the workpieces can be further processed without any additional work steps.

The right machine for your task

arrow-left
Images /
arrow-right
Product video Product video
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right
arrow-left
Images /
arrow-right

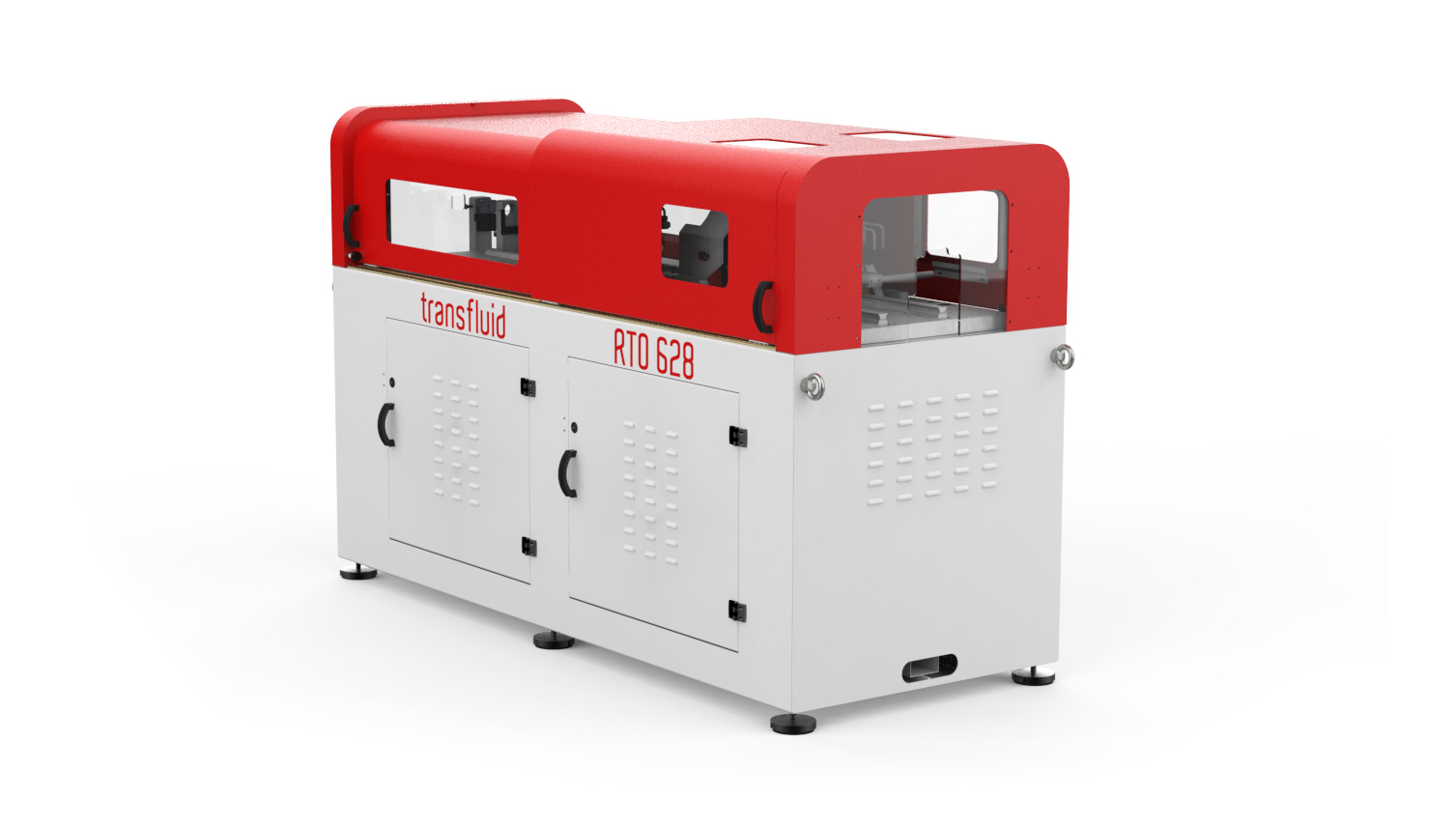

Pipe cutting machines type ROTOLINE

Type: ROTOLINE 28
Type: ROTOLINE 80
Type: ROTOLINE 50
Type: ROTOLINE 100
Max. Capacity1/4" - 1 1/8" in
Wall thickness.072" in
Shortest cutting length
(pull apart)		2.1" in
Shortest cutting length
(continuous cut)		1" in
Adjustable cycle time2.2 - 8.0 sec.
Power output7 kW
Machine weight3740 lb
L x W x H110 x 41 x 63 in
Max. Capacity3/4" - 3"
Wall thickness.120"
Shortest cutting length
(pull apart)		3.9"
Shortest cutting length
(continuous cut)		2.7"
Adjustable cycle time5 - 10 sec.
Power output10 kW
Machine weight6600 lb
L x W x H150 x 55 x 63 in
Max. Capacity1/4" - 2"
Wall thickness.095"
Shortest cutting length
(pull apart)		2.1"
Shortest cutting length
(continuous cut)		1"
Adjustable cycle time2.2 - 8.0 sec.
Power output7 kW
Machine weight3740 lb
L x W x H110 x 41 x 63 in
Max. Capacity3/4" - 4"
Wall thickness.120"
Shortest cutting length
(pull apart)		6.7"
Shortest cutting length
(continuous cut)		3.9"
Adjustable cycle time5 - 10 sec.
Power output15 kW
Machine weight9020 lb
L x W x H122 x 51 x 65

Your advantages at a glance

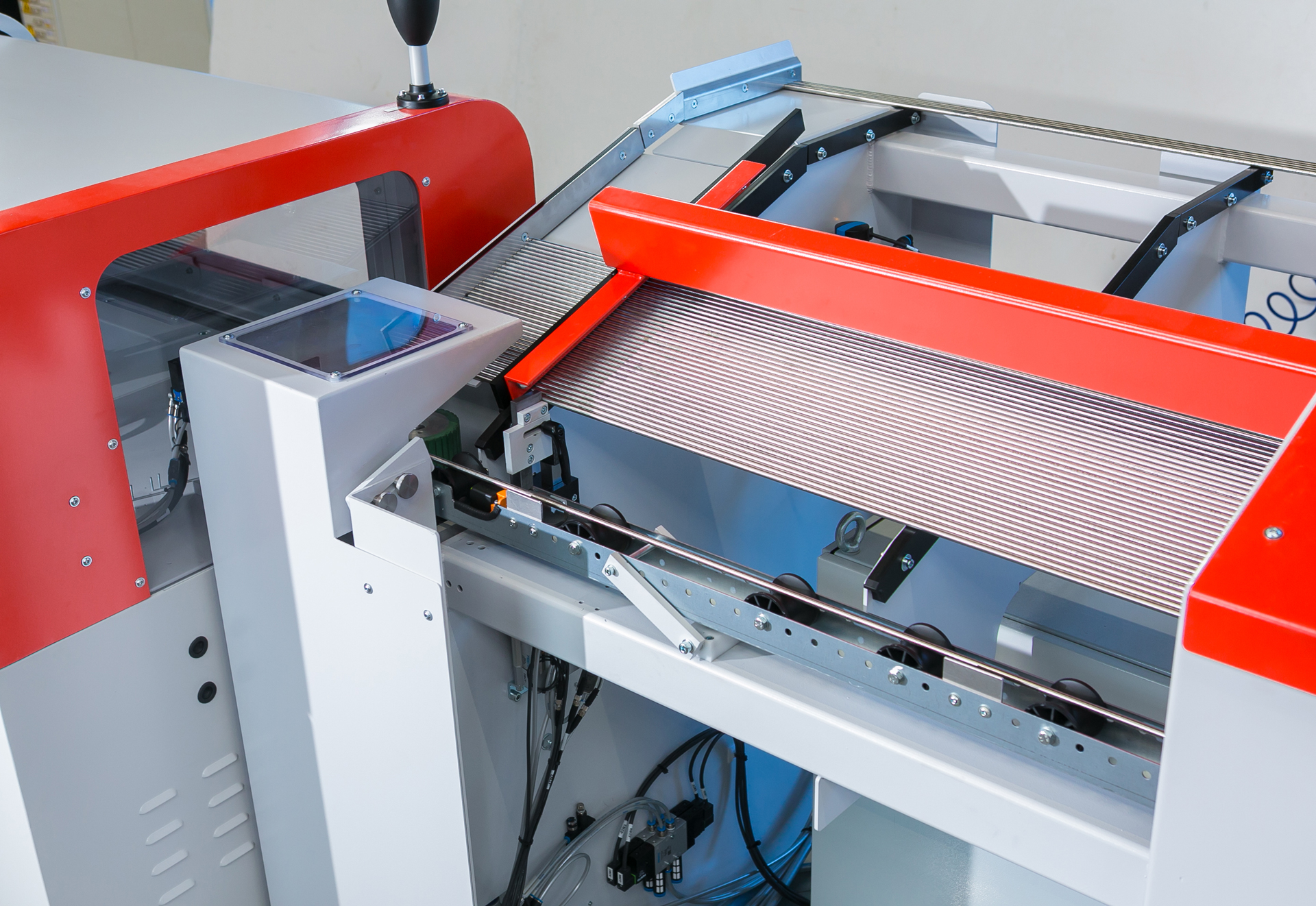

  • Automatisches Zuführsystem einer CNC Rohrtrennmaschine t cut ROTOLINE 28 mit Rollenbahn und Bedienpanel für präzise und effiziente Rohrbearbeitung.

    MODULAR STRUCTURE

    The systems for chipless cutting of tubes can be individually equipped with a loading magazine for manual feeding or with a straightening unit for separation from the coil.

  • Nahaufnahme von zwei Kupferrohren mit glatter, gratfreier Schnittkante für industrielle Anwendungen und Rohrbearbeitung.

    ECONOMIC

    Hardly any material loss, immediate further processing possible.

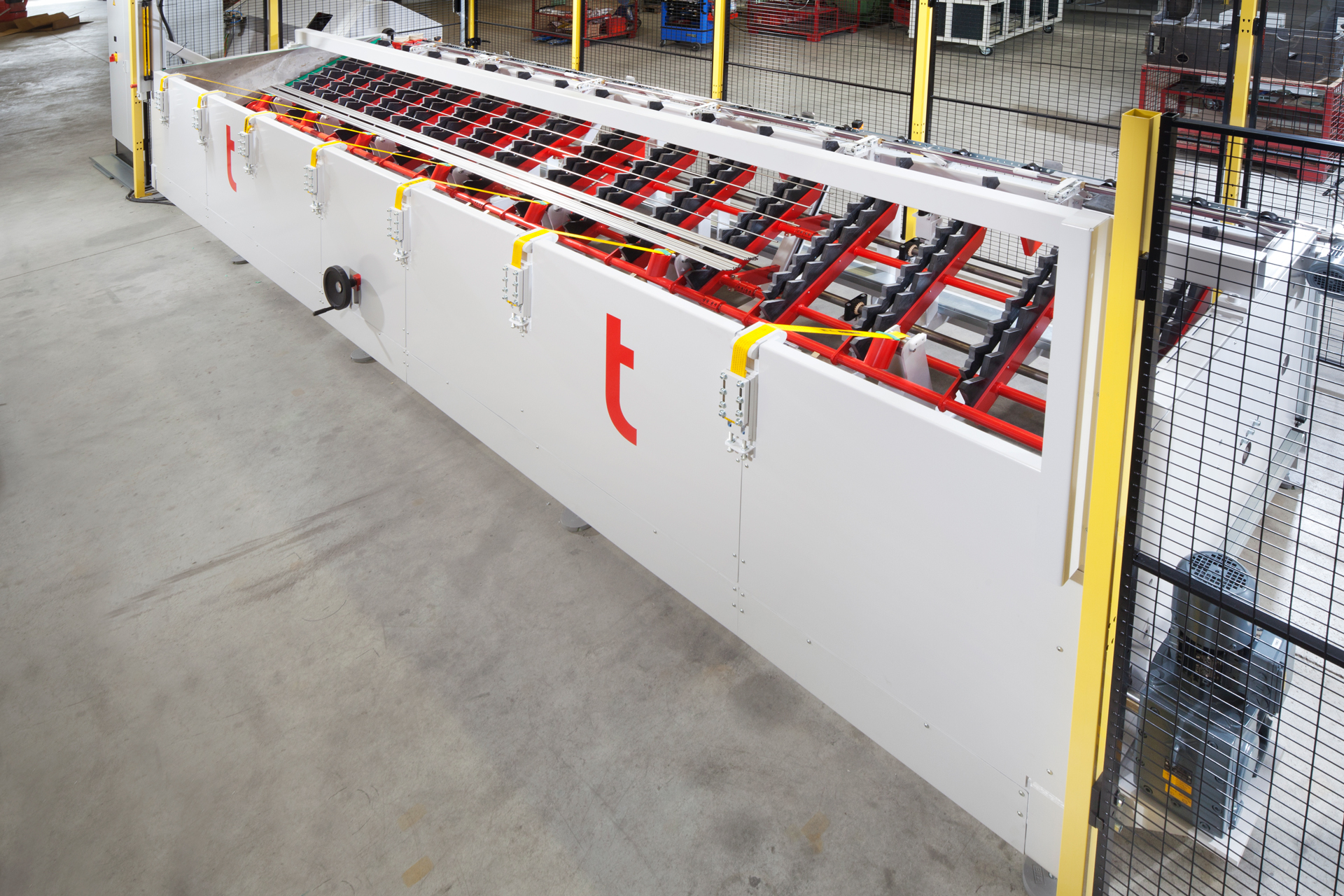

  • Automatisches Rohrmagazin mit Kettenförderer zur Zuführung von Metallrohren in eine CNC Rohrtrennanlage.

    DIFFERENT TUBE LOADING CONCEPTS

    The machines in the t cut ROTOLINE series also have very powerful peripherals that make it possible, for example, to process small quantities with a loading table or as a bundle with automatic feeding and separation.

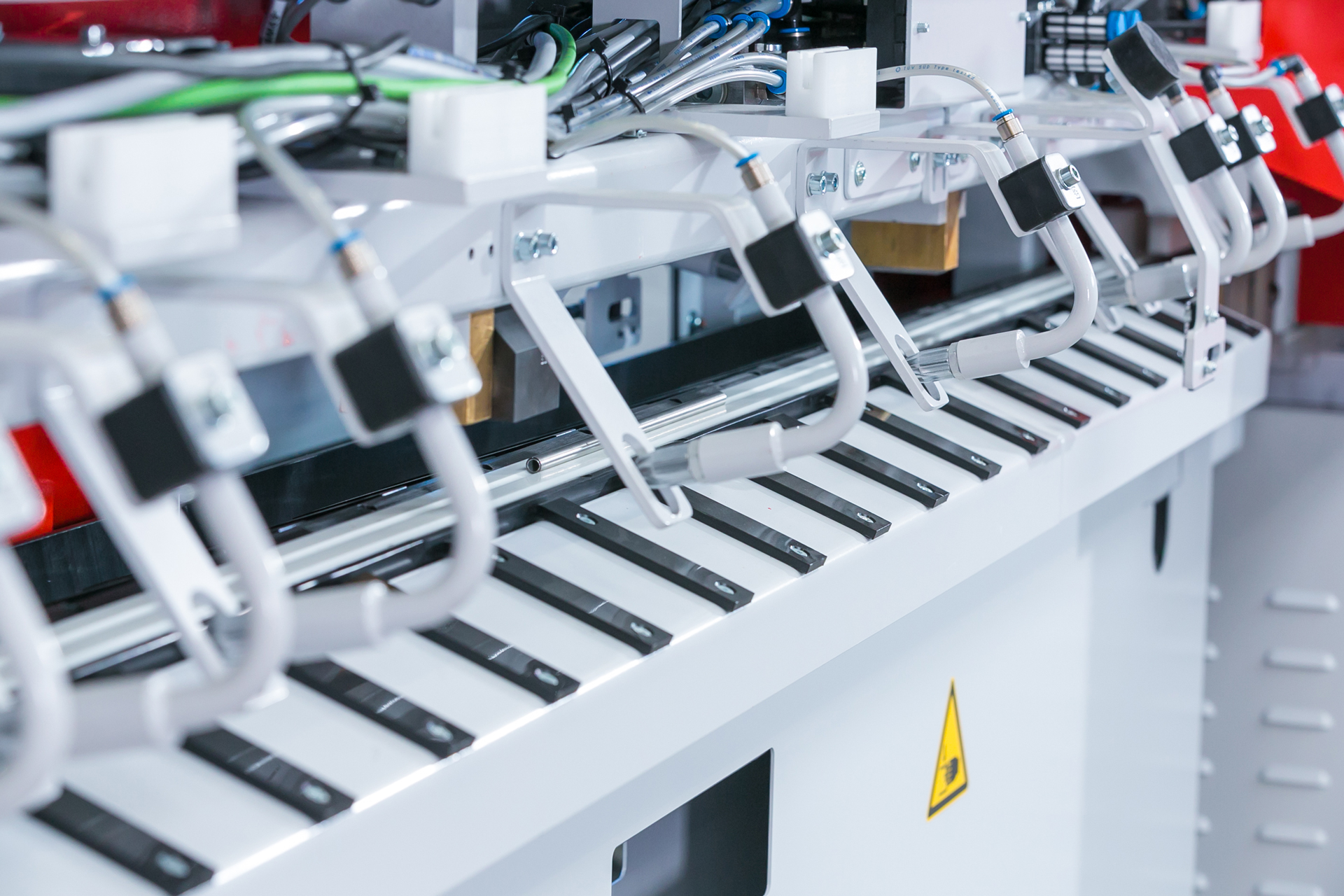

  • Detailaufnahme einer orbitalen CNC Rohrtrennmaschine t cut ROTOLINE 28 mit Spannsystem und Führungsschienen für präzises, spanloses Trennen von Metallrohren.

    FLEXIBLE RELEASE

    The separated tubes can be sorted using various removal devices: They are grouped and removed from four or eight positions. If necessary, each individual tube can be labeled to ensure that it is correctly identified at every stage of the process.

  • Bedienpanel einer industriellen Rohrbearbeitungsmaschine mit Siemens SIMATIC HMI-Touchscreen und Steuerungstasten.

    SMART CUTTING

    Software-supported nesting function minimizes waste.

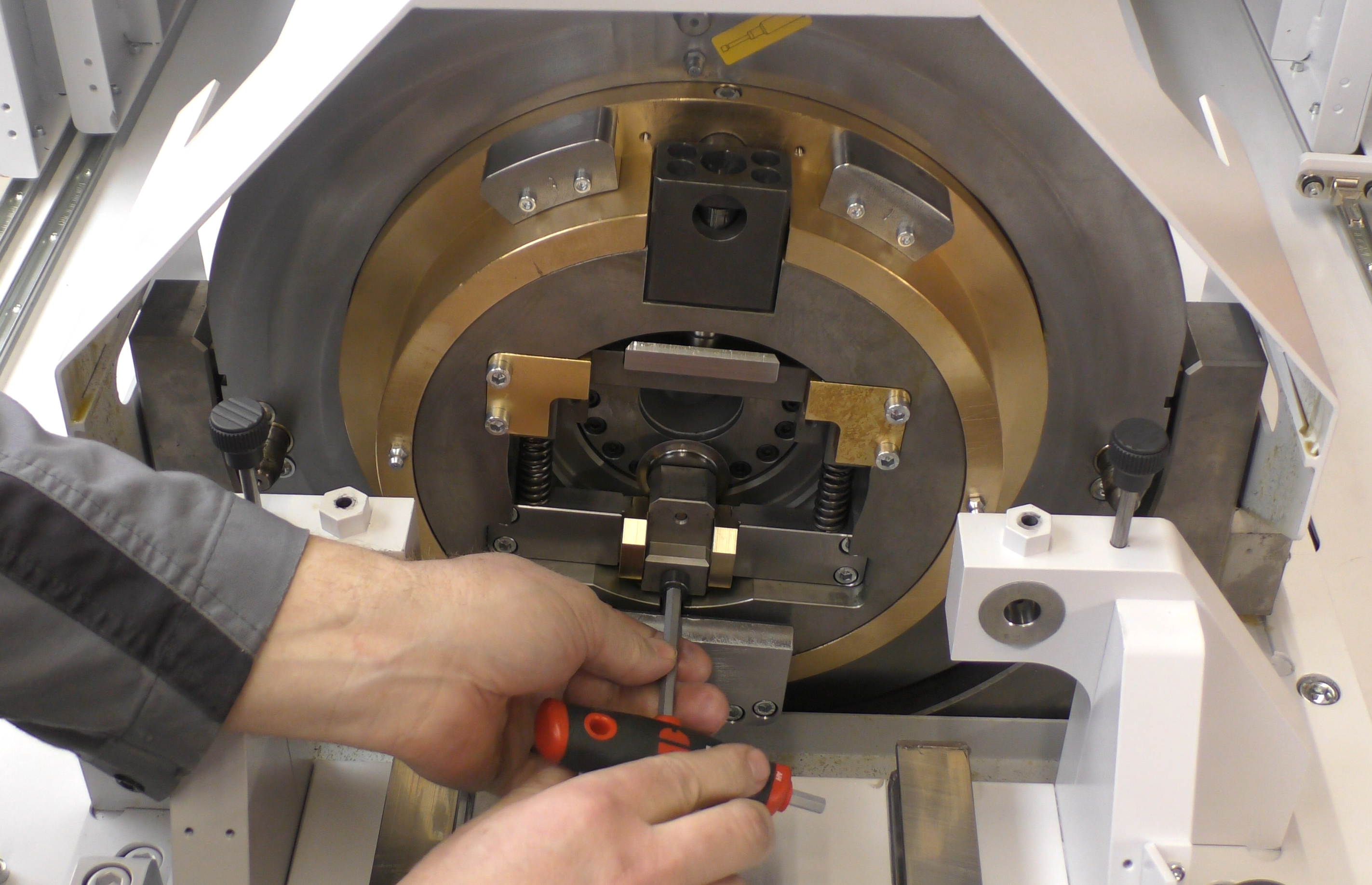

  • Werkzeugwechsel an einem orbitalen Trennkopf einer Rohrtrennmaschine, bei dem ein Bediener mit einem Schraubendreher Präzisionskomponenten justiert.

    QUICK CHANGEOVER

    Tool change in under 10 minutes.

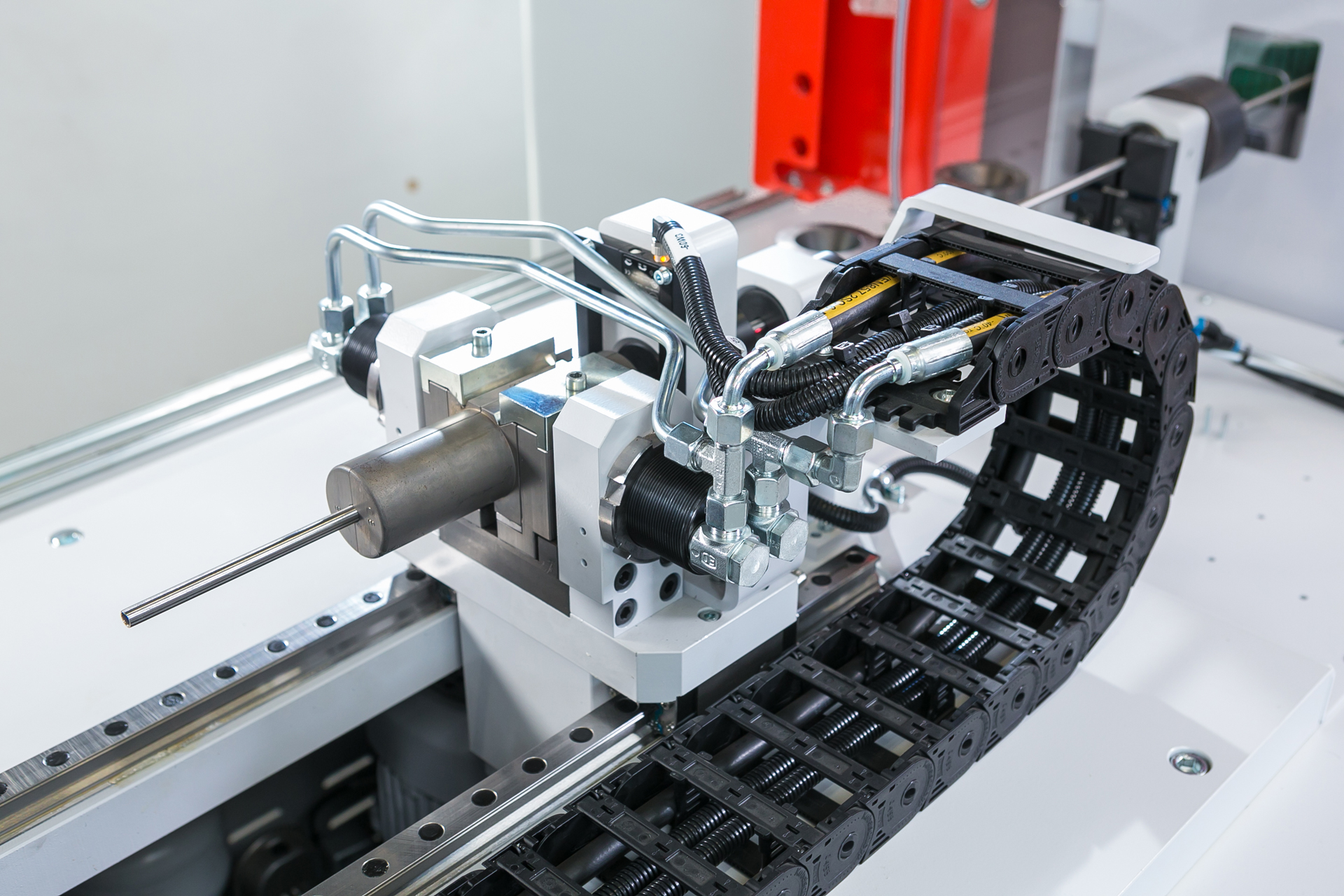

  • Automatische Zugeinheit einer CNC Rohrtrennmaschine t cut ROTOLINE 28 mit Spannsystem und Energiekette für präzisen Rohrvorschub.

    THE PULLING AND TEARING PROCESS

    As the tubes can be pulled under tension during cutting, it is ensured that they are not torn or deformed at the cutting point.

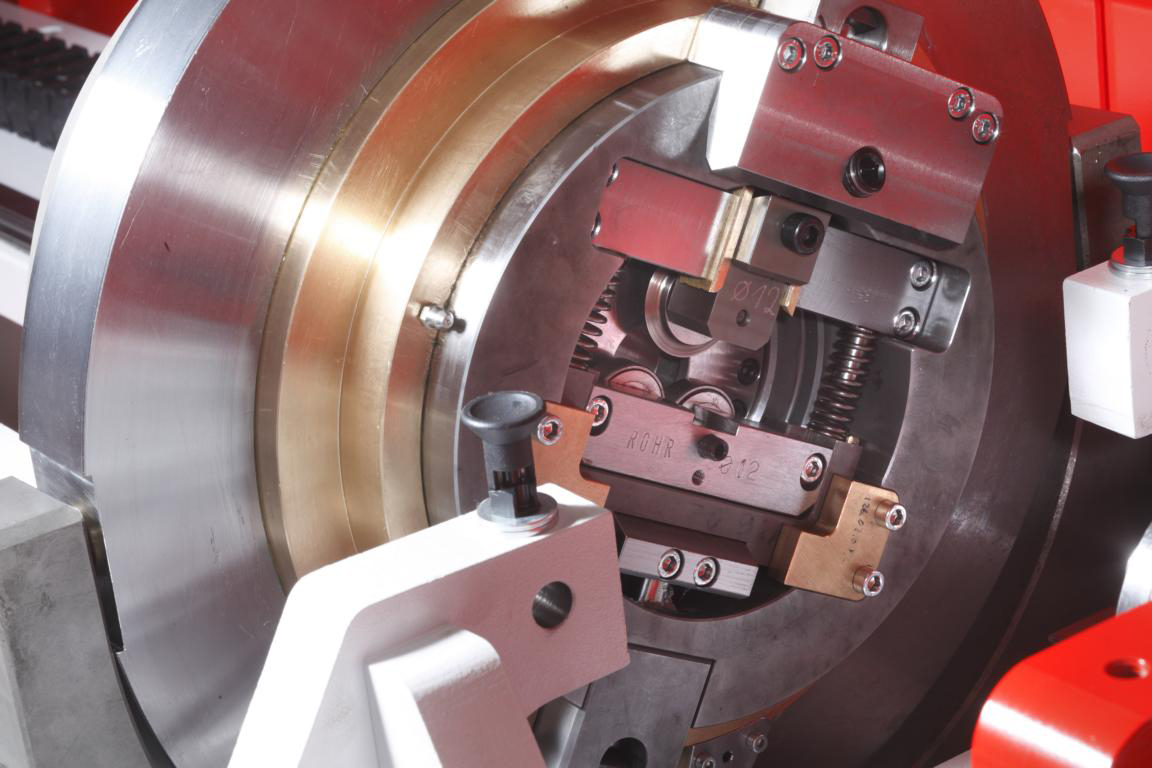

  • Detailaufnahme eines orbitalen Trennkopfs einer industriellen Rohrschneidemaschine zur präzisen, spanlosen Bearbeitung von Metallrohren.

    THE KNIFE-CUTTING METHOD

    This special tube cutting machine uses durable, rotating blades to ensure sharp edges and right-angled cuts.

Images 1/0

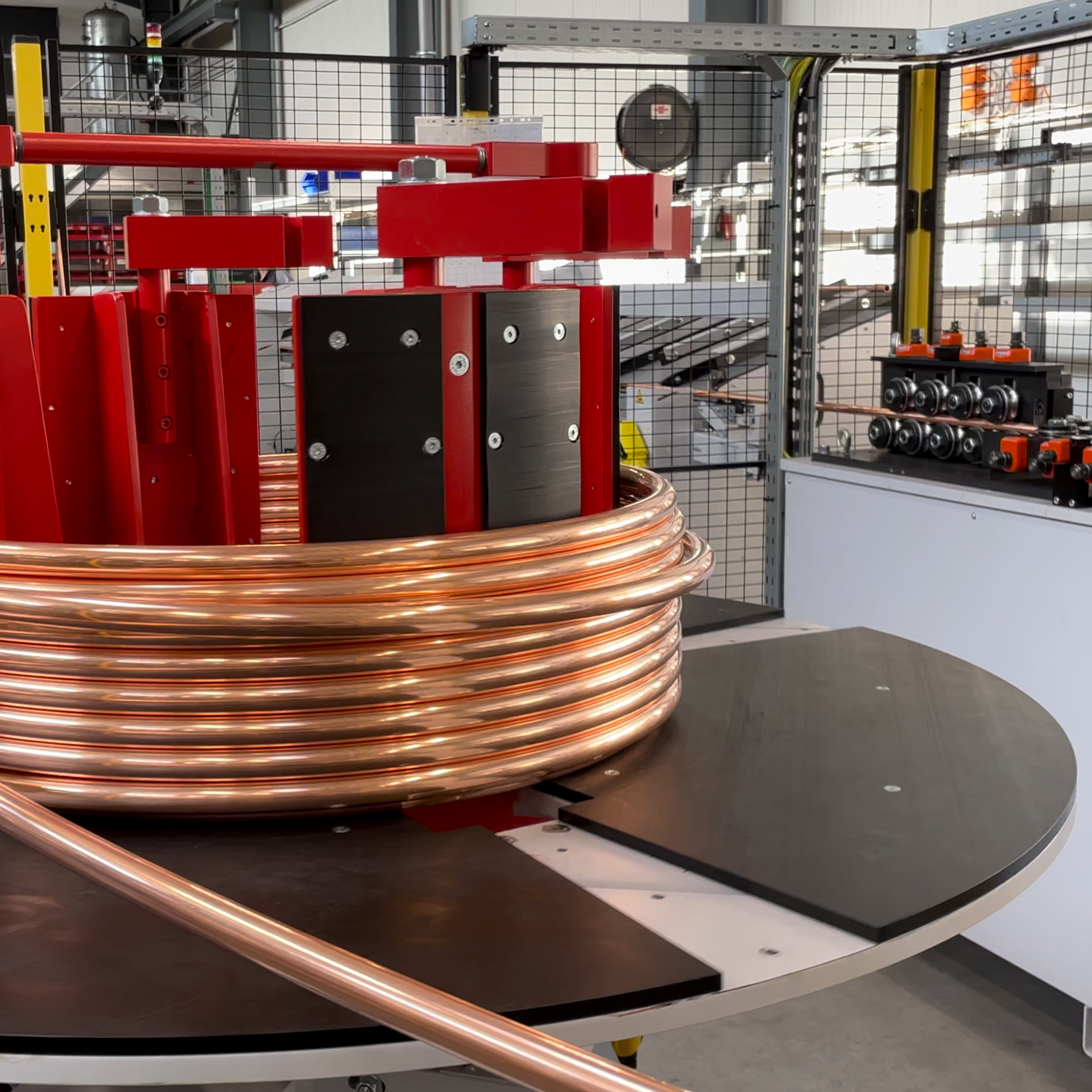

CNC Rohrbiegemaschine formt Kupferrohr aus Coil zu präziser Spirale für industrielle Anwendungen.

t cut ROTOLINE - KEEPS THE WORK PROCESS RUNNING

No downtime due to coil loading.

When using tubes from coil, there is no alternative to chipless cutting, as the tubes must be straightened. This straightening process and the transportation of the tube serve as length positioning in the cutting machine.

PREPARED FOR INTEGRATION INTO PRODUCTION CELLS

Whether as a stand-alone machine or in a production cell, the machines in the t cut ROTOLINE series impress with their simple operation and precise results.



Optimized processes enable an increase in efficiency through seamless integration into existing production lines.

Watch the movie

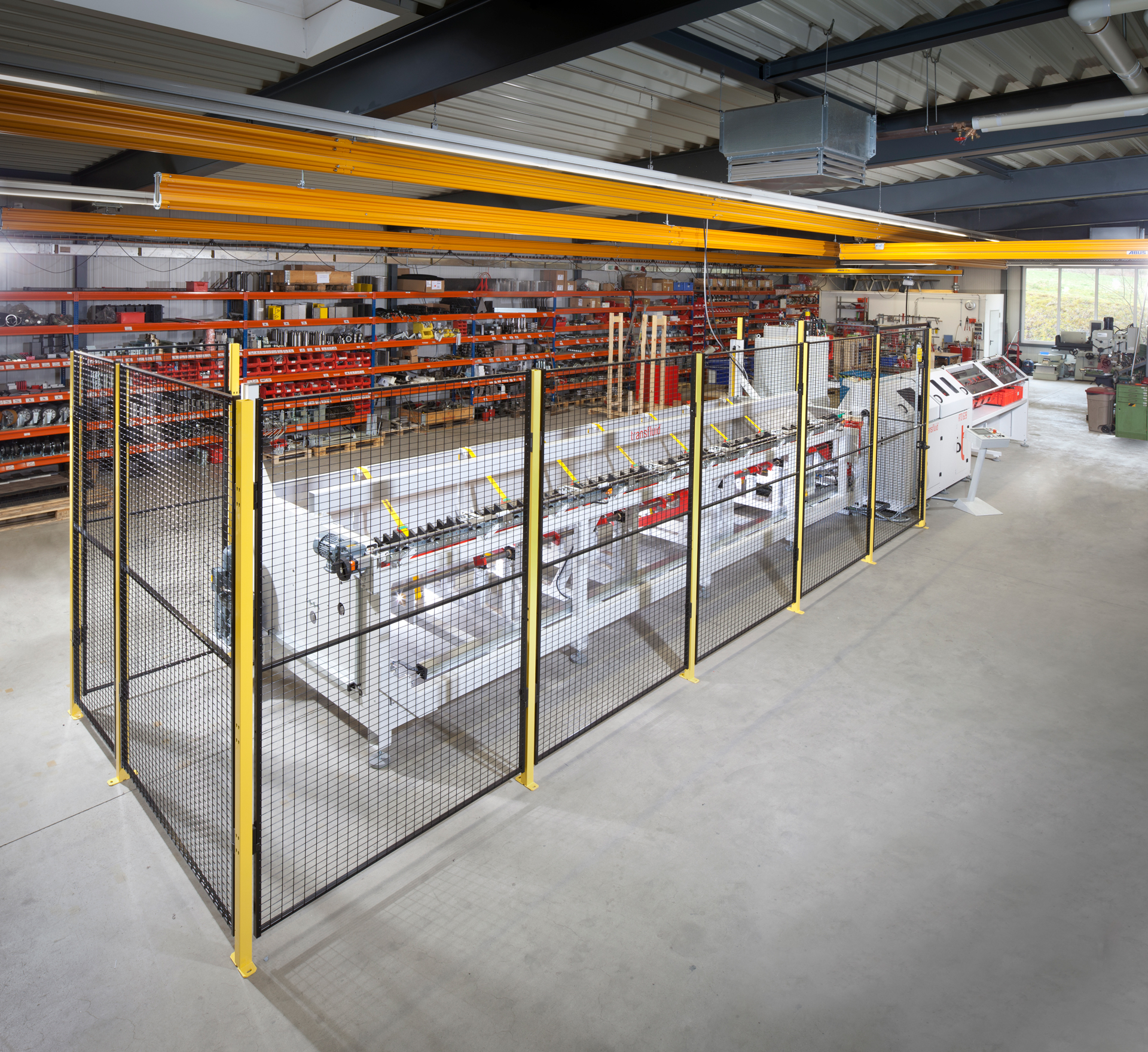

Automatisierte Rohrtrennanlage mit Schutzzaun, Rollenbahn und CNC-Steuerung für industrielle Serienfertigung von Metallrohren.
transfluid T-Project Software auf Laptop zur Steuerung einer Rohrbiegemaschine.

t cut ROTOLINE - SPECIAL CUTTING SOFTWARE

Our software ensures that our tube cutting systems work with almost no waste. This pays off and increases your return on investment.



It is possible to use automatic nesting with these machines. This means that the tubes are cut with a minimum of waste if a sufficient length and number of pieces are fed into the machine.



The intelligent controls can be connected to the network and secure your long-term investment in the digitalization of your production. Continuous process monitoring gives you a high level of accuracy and confidence in your production.

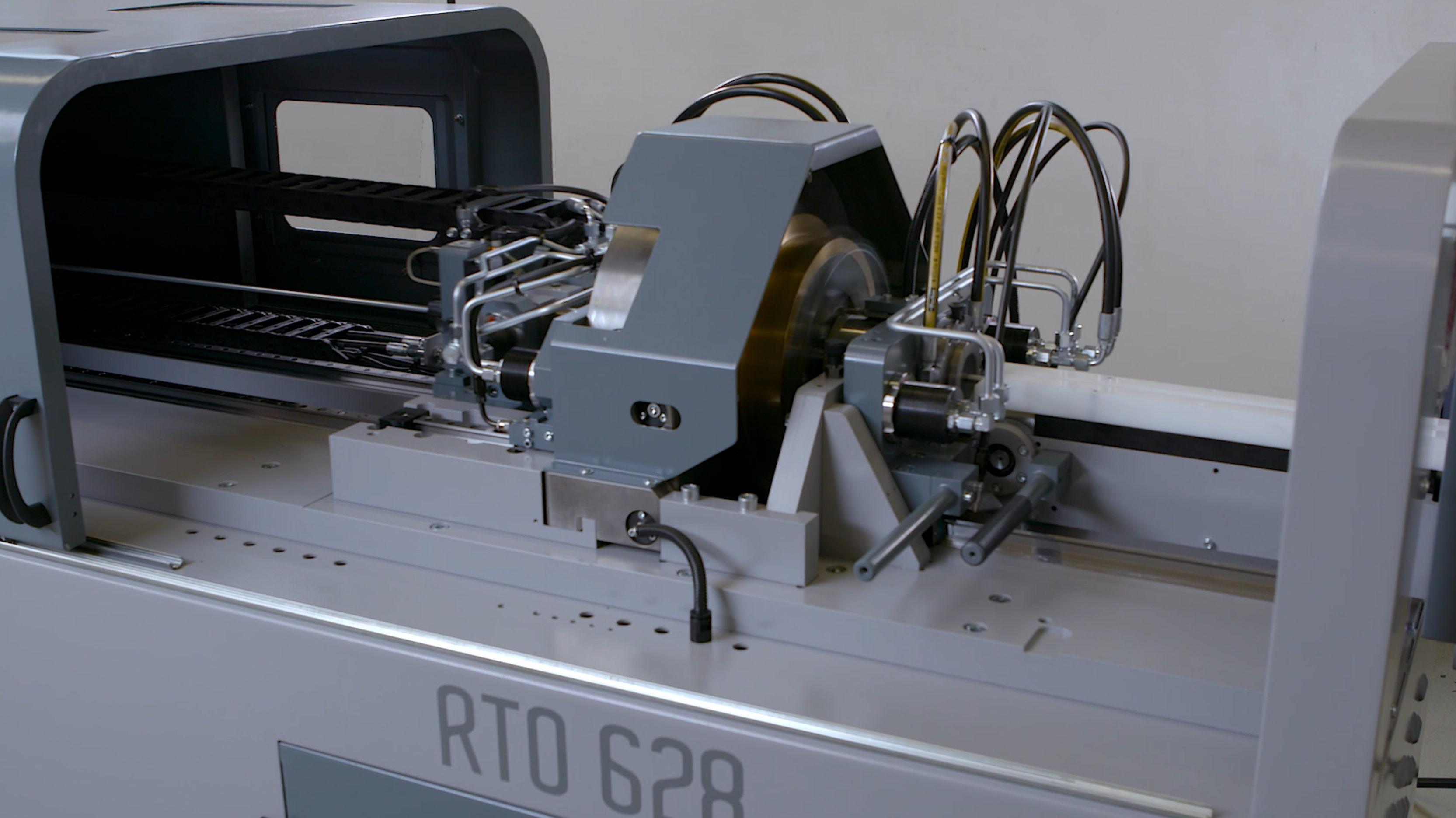

transfluid t cut ROTOLINE 28 Rohrtrennmaschine beim spanlosen Orbitaltrennen von Metallrohren im automatisierten Schneidprozess.
