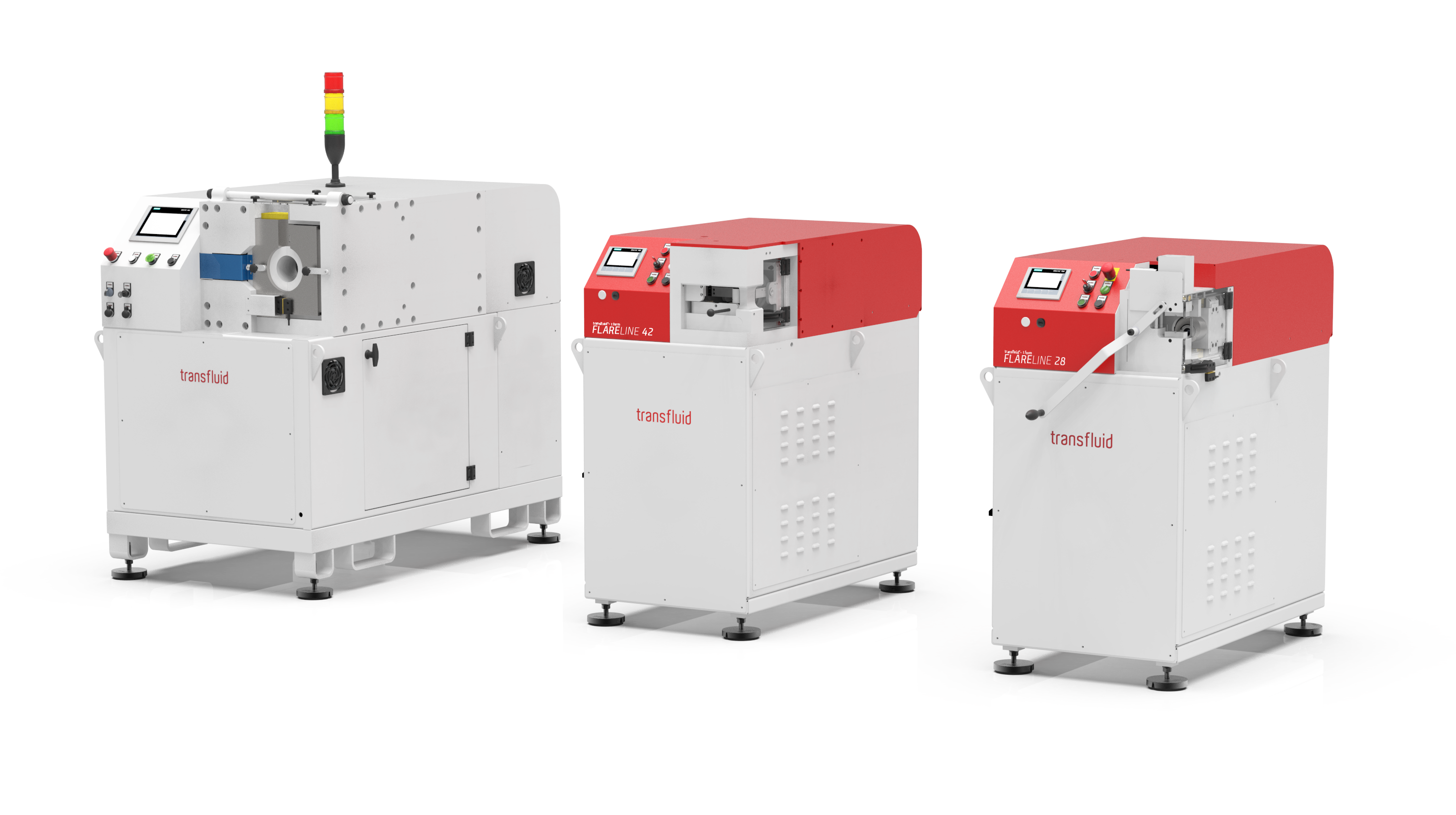

Drei Modelle der transfluid t form FLARELINE Rohrumformmaschinen für unterschiedliche Rohrdurchmesser.

transfluid - t form FLARELINE
Roll forming machines

Tight and durable - absolutely tight, stable and long-lasting connections
Mirror-like sealing surfaces - highest surface quality without reworking
Tool technology - different flanging angles (37° to 90°)
Compact machine design - for receding geometries

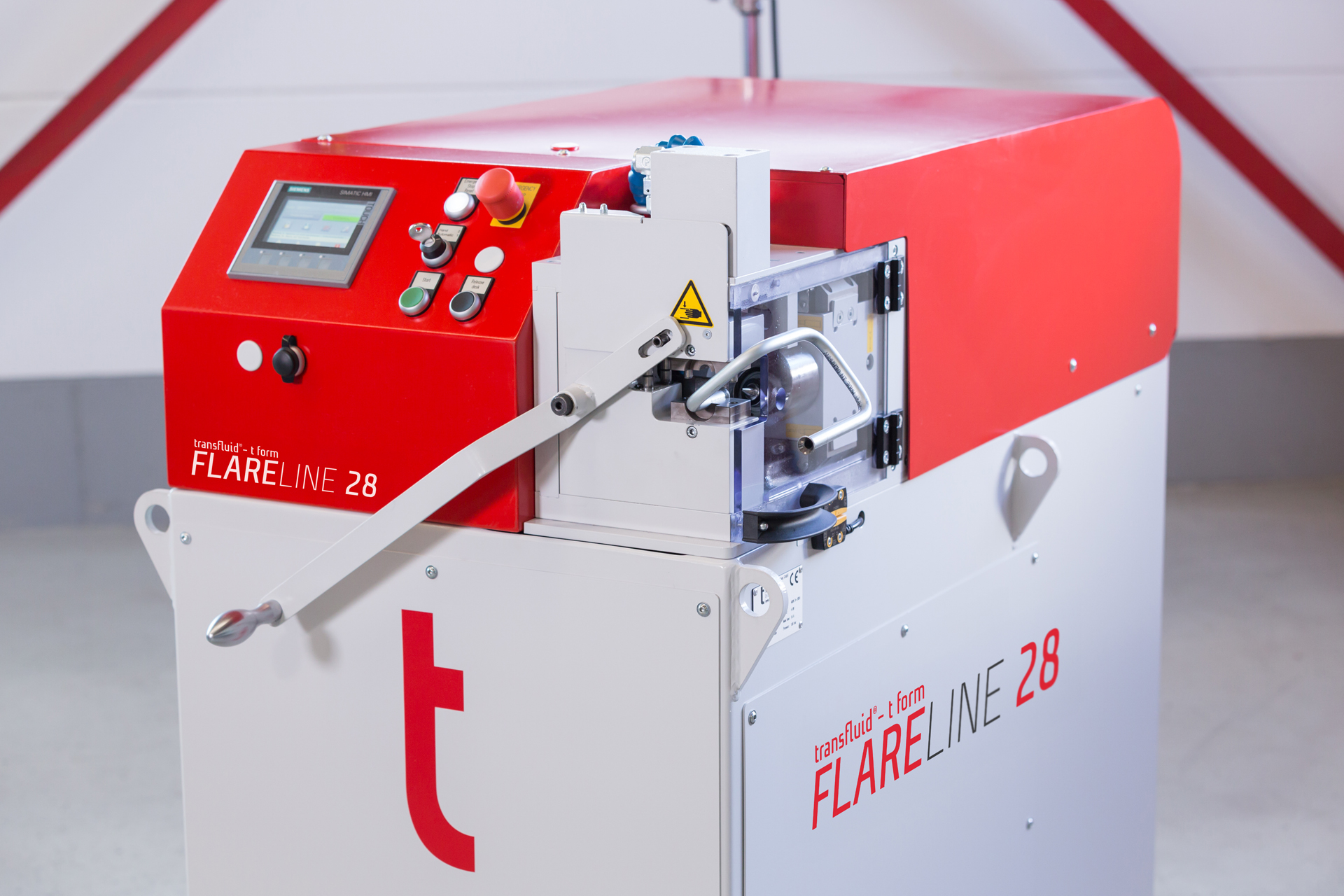

Metallrohr wird in der t form FLARELINE 28 Rohrumformmaschine eingespannt und am Rohrende präzise umgeformt.

QUICKLY TO THE PERFECT SHAPE.

t form FLARELINE - Smooth. Tight. High quality.

The t form FLARELINE uses a rotating forming principle that produces sealing surfaces of the highest surface quality - without additional post-processing.

The quality remains constant even with different materials or geometries. This material-friendly forming process is particularly advantageous for dynamically loaded piping systems and offers greater safety.

The t form FLARELINE delivers connection quality at the highest level.

Faster tube end forming and better surfaces

t form FLARELINE forming machine from transfluid with simple tool change and minimized operator involvement

The right machine for your task

Product video

Images /

Product video

Images /

Product video

Images /

Tube forming machines type FLARELINE

choose tube diameter

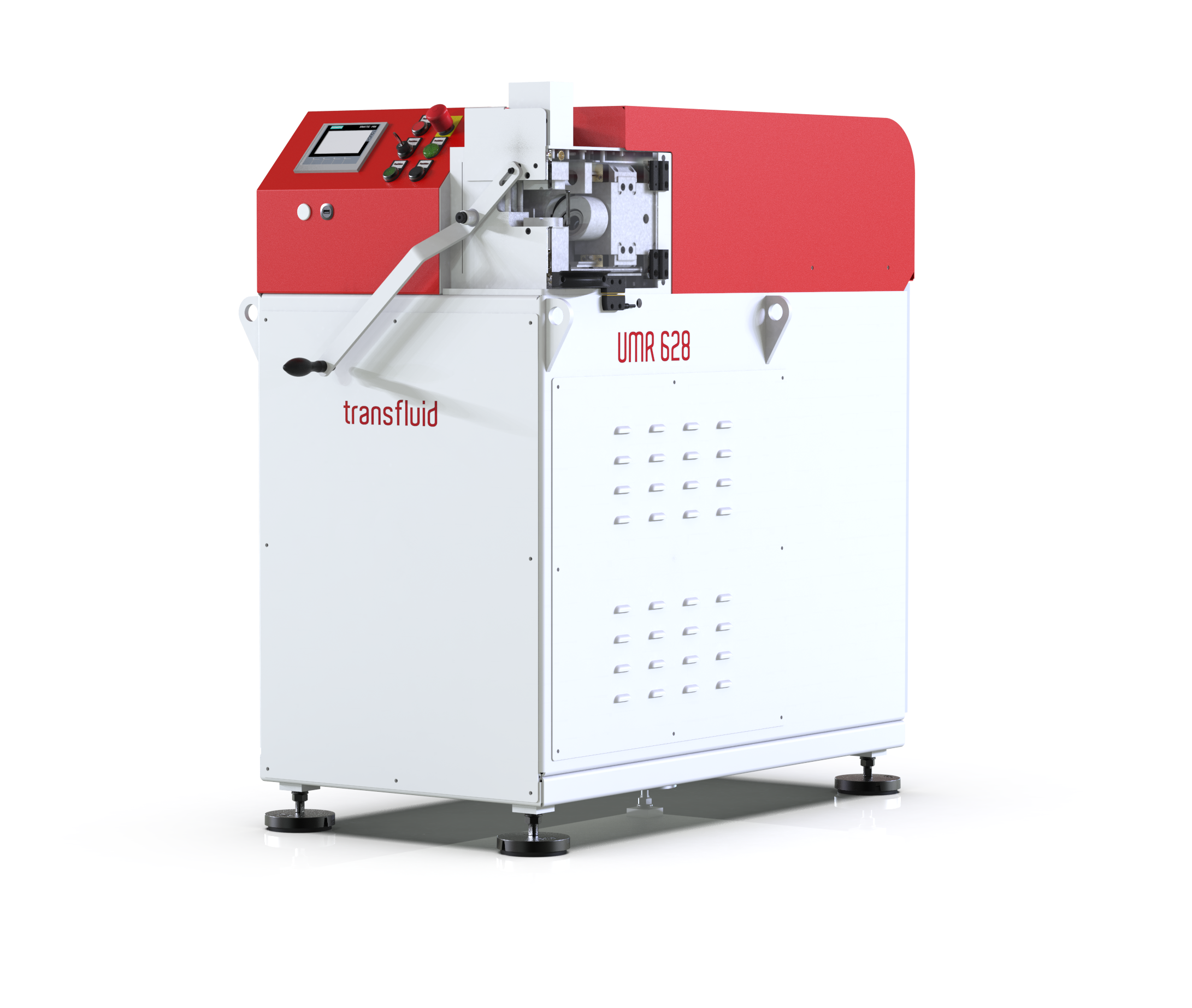

Type: FLARELINE 28

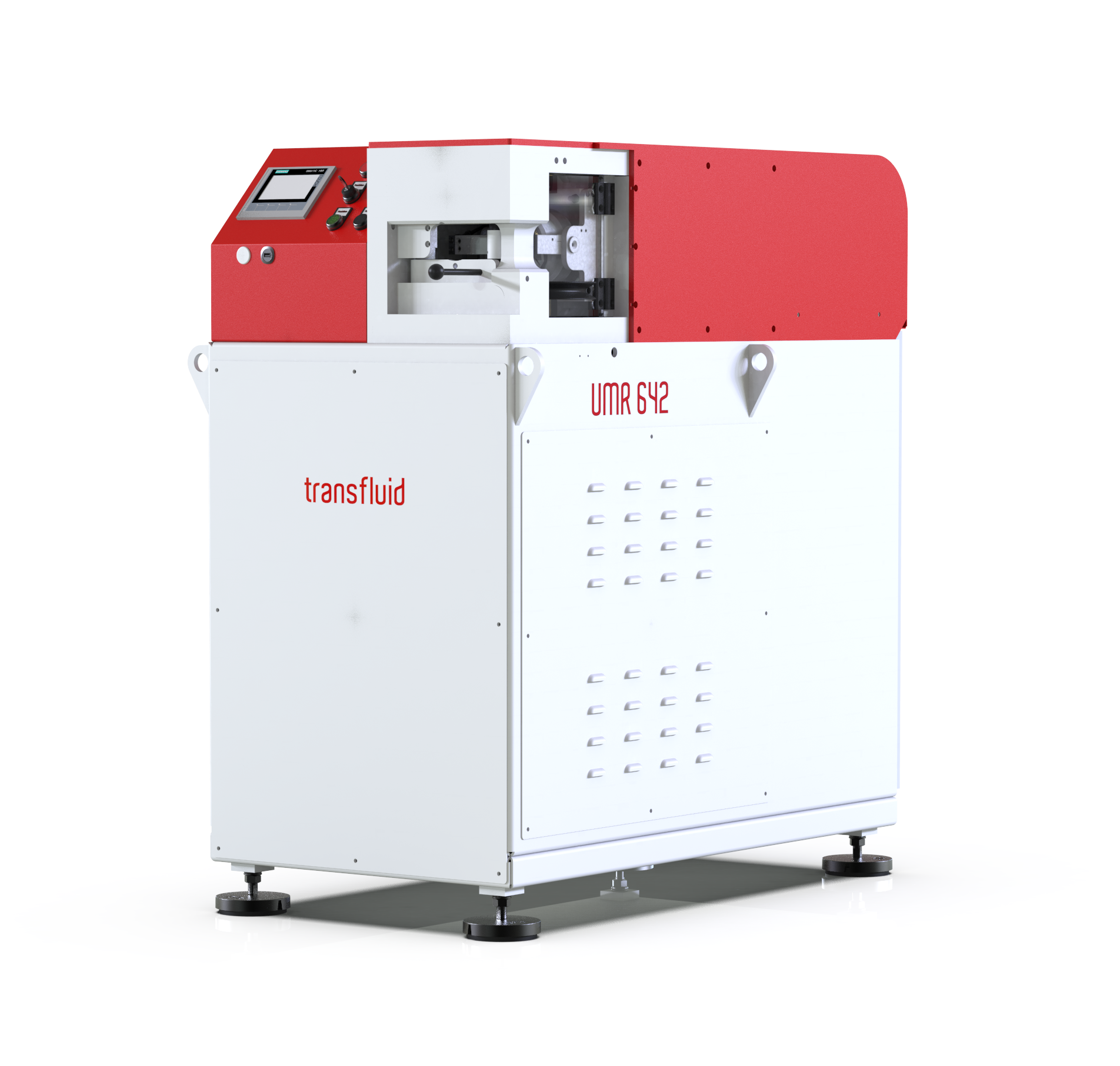

Type: FLARELINE 42

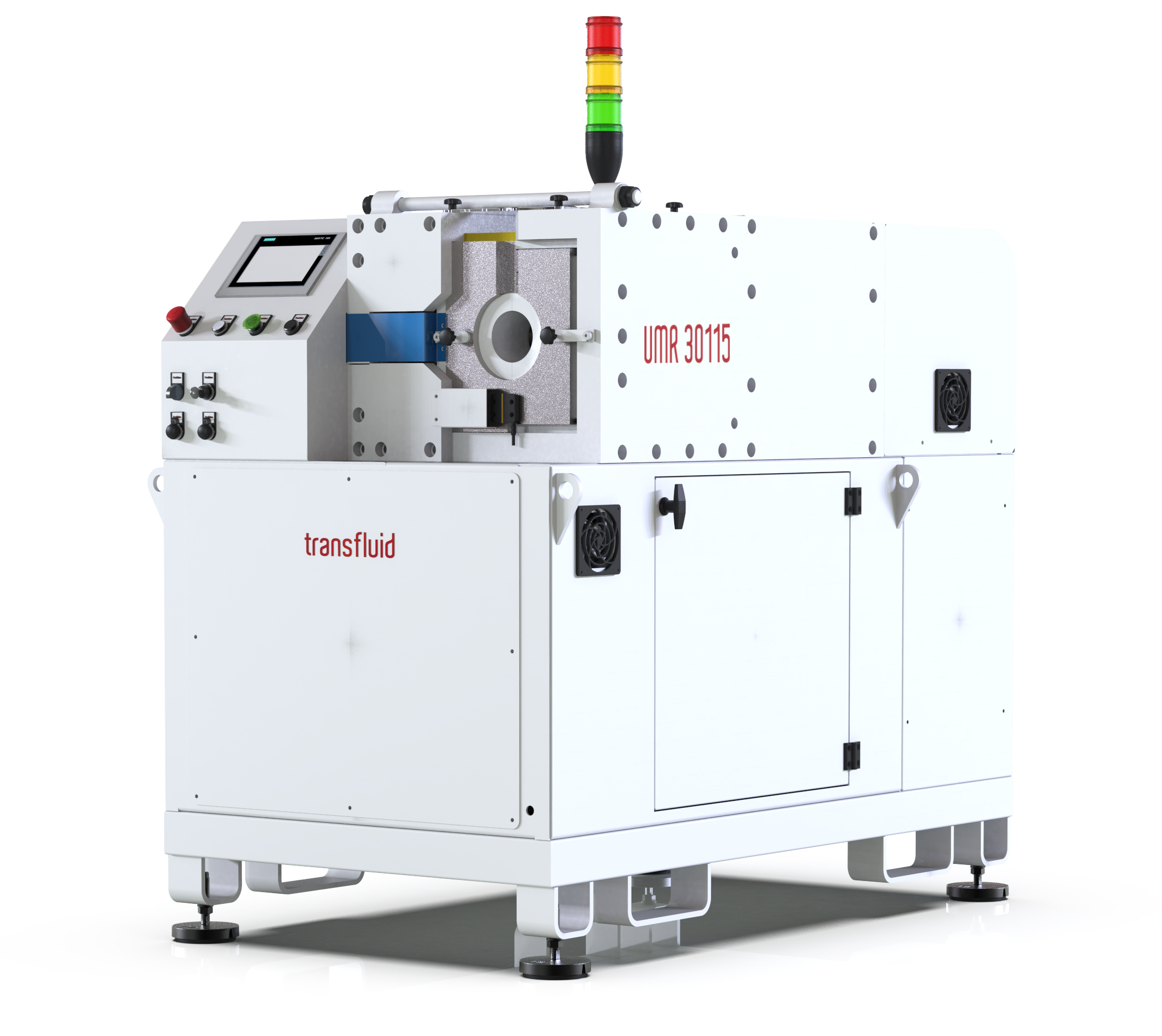

Type: FLARELINE 115

Max. Capacity	1/4" - 1 1/16" in
Wall thickness	.035" in
Steel tube	1/4 - 3/4"
Rpm	603
Adjustable cycle time	4 - 10 Sec.
Forming length	0,59 in
Clamping length	1,0 x D
Power output	1,3 kW
Weight	1100 lb
L x W x H	39 x 26 x 55 in

Max. Capacity	1/4” – 1 5/8”
Wall thickness	5/32”
Steel tube	1/2” – 1 1/32”
Rpm	200
Adjustable cycle time	4 - 15 sec.
Forming length	1”
Clamping length	1.0 x D
Power output	4.5 kW
Weight	~2,205 lbs
L x W x H	39” x 25 5/8” x 55 1/8”

Max. Capacity	1/4" - 1 5/8"
Wall thickness	.148"
Steel tube	1/4 - 1 1/4"
Rpm	200
Adjustable cycle time	4 - 15
Forming length	1
Clamping length	1,0 x D
Power output	4,5
Weight	2200 lbs
L x W x H	15 3/8” x 10 1/4” x 21 5/8”

Your advantages at a glance

EXTREMELY SHORT CLAMPING LENGTH

The possible clamping lengths for machining are 1.0 to 1.5 x D. This gives the user the option of forming the tubes in a bent state.
PERFECT SEALING SURFACES

Easy loading of tubes with ORFS rings thanks to special contour clamping jaws.

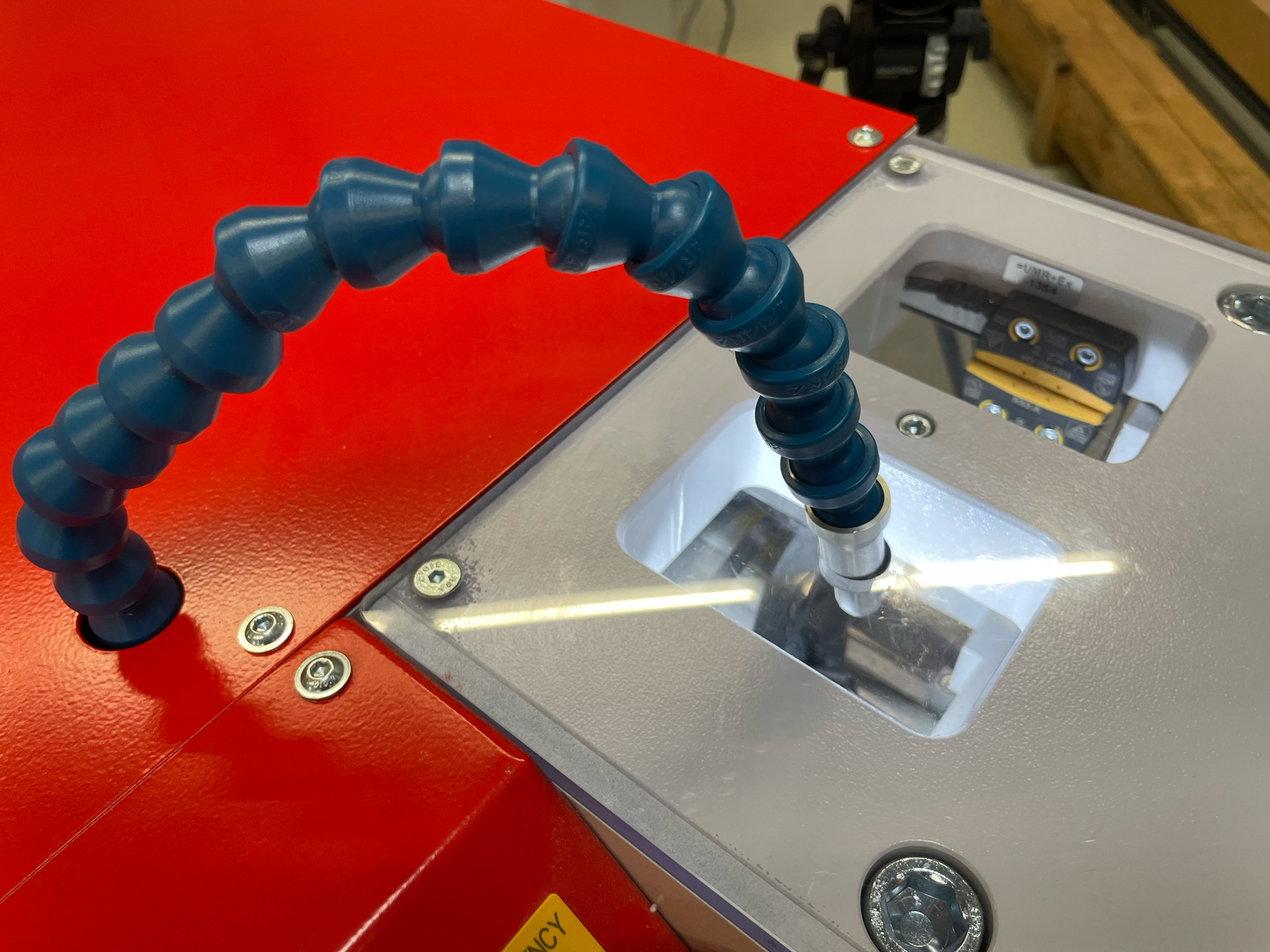

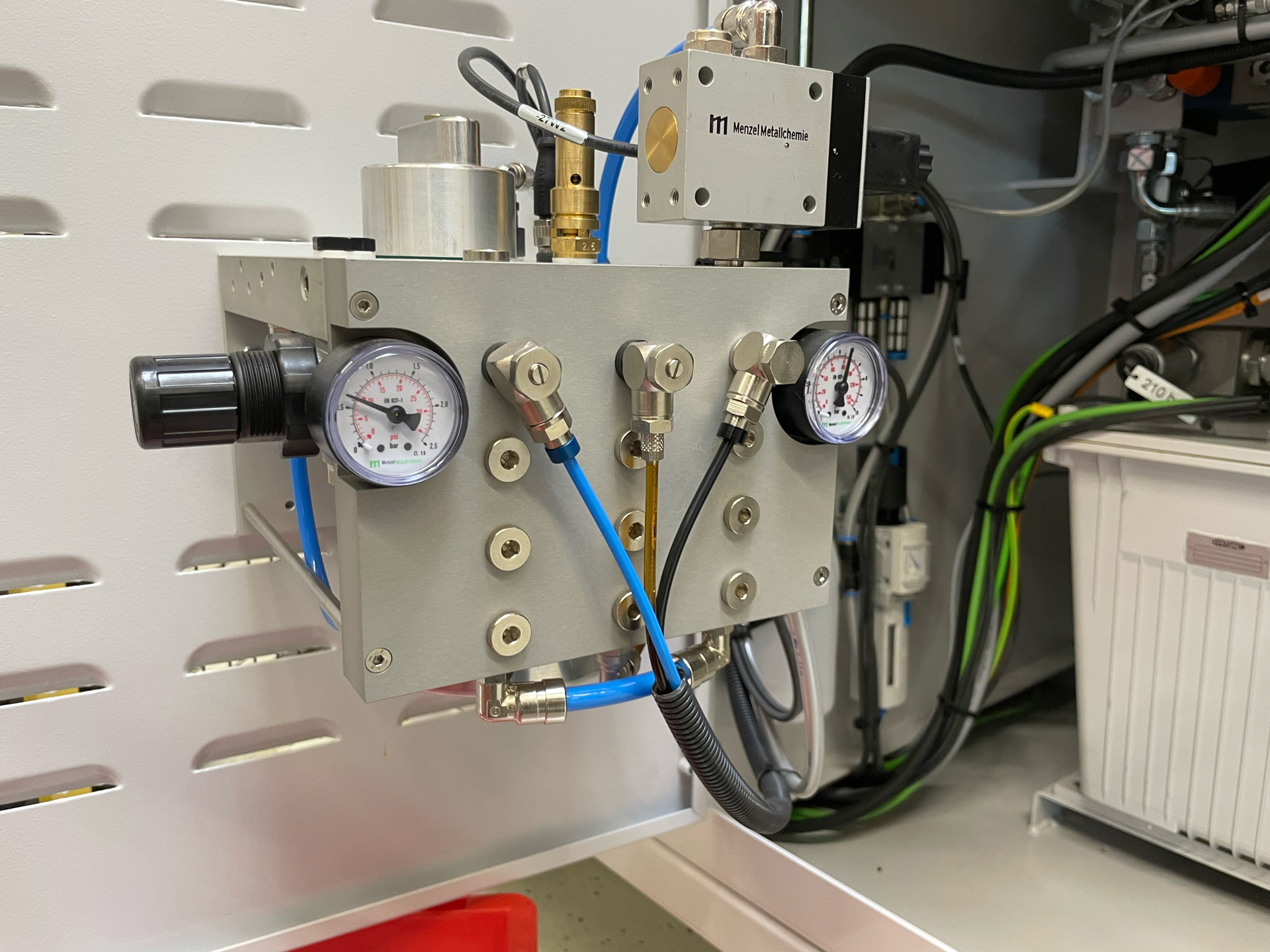

OPTIMIZED MACHINE DESIGN

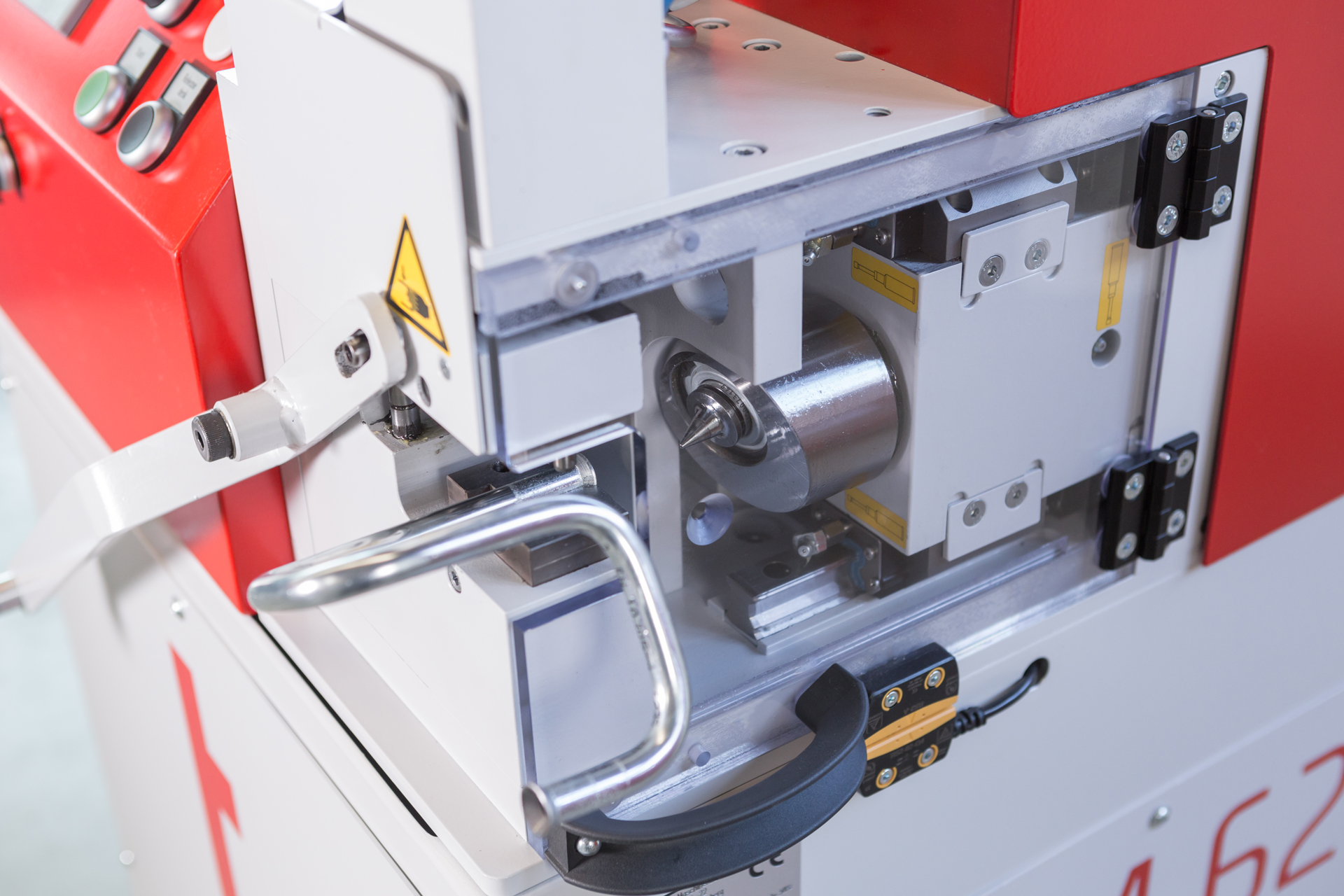

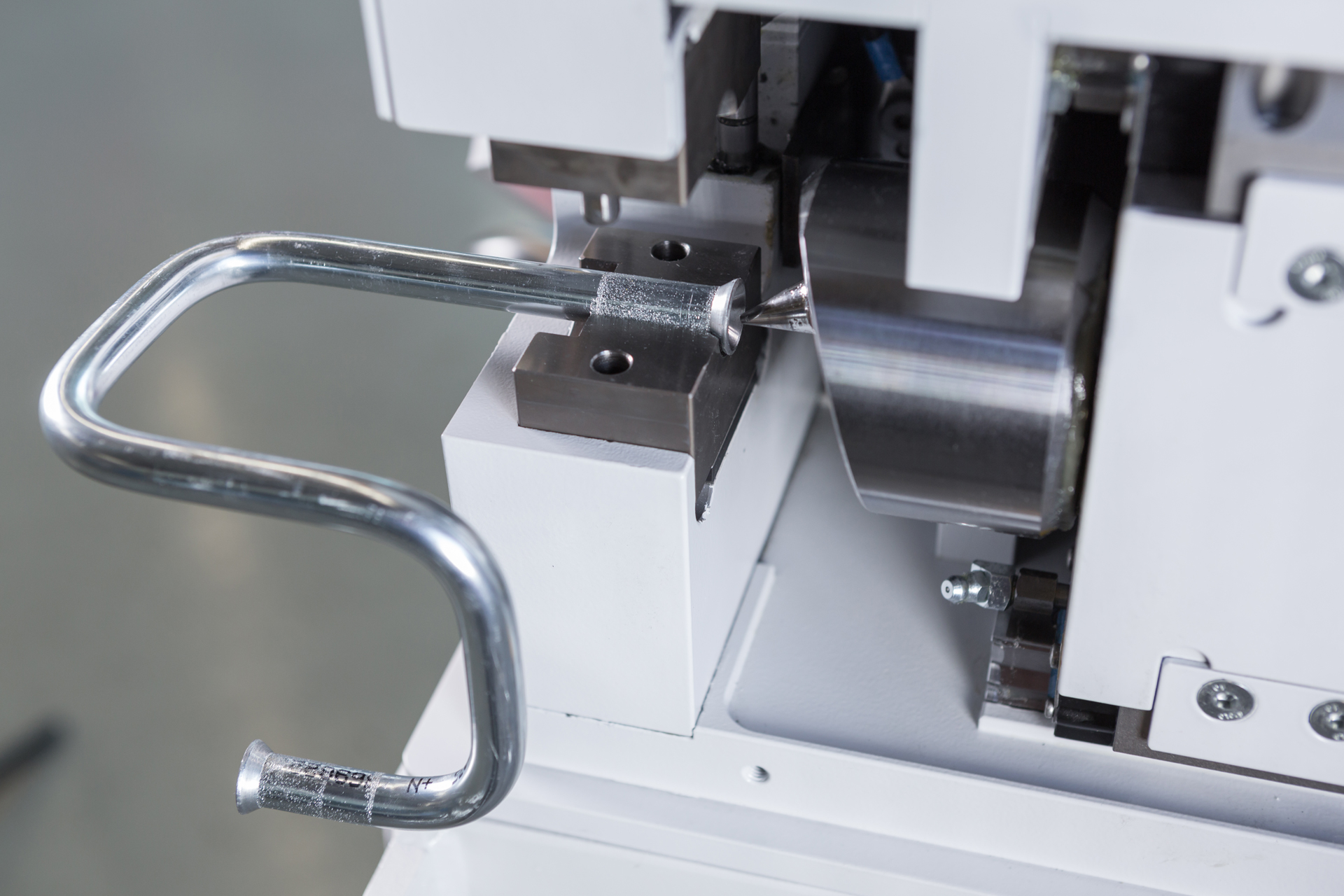

The extremely narrow flaring head enables the processing of 180° bent tubes. The size of the flaring can be determined by the length of the electric length stop. The surface is optimized by adjusting the duration, speed and force of the forming process.
SIMPLE CONTROL VIA TOUCH PANEL

All parameters are set centrally in the machine control system, controlled positioning of the forming axis and the stop position.
HIGH FLEXIBILITY

Suitable for prototypes and series production.
TRANSFORMATIONS WITH FUNCTIONAL SURFACES

These systems can form not only from the inside out, but also from the outside in.
INTEGRATED TOOL DRAWER

For safe storage of the clamping jaws and wobble tools.

Images 1/0

COST ADVANTAGES

ORFS CONNECTIONS PRODUCED SEMI-AUTOMATICALLY

With the semi-automatic ORFS ring feeder, transfluid has developed a cost-effective solution for the reliable and effective production of small, medium and large batch sizes.

Less rework, fewer sources of error, greater efficiency.

Further information

t form FLARELINE 28 Rohrumformmaschine mit automatischer ORFS-Ringzuführung in der Produktionshalle.

AUTOMATABLE

This series impresses with its particular stability and performance. Individual pieces and small batches can be produced extremely economically with this machine concept. The use of high-quality components ensures the longevity of the machine.

Integration into production lines for consistent process quality.

Watch movie

Automatisierte Produktionszelle mit t form FLARELINE Rohrumformmaschine zur Bearbeitung und Formung von Metallrohren.

SIMPLE CONTROL VIA TOUCH PANEL

All parameters are set centrally in the machine control system, controlled positioning of the forming axis and the stop position. The t form FLARELINE is equipped with fully electronic pre-selection of the flanging geometry. The stop position as well as all strokes and machining operations are servo-electrically controlled and can be called up via a touch panel.

The material used and the shape to be achieved are decisive for the exact processing time. The machine carries out the processing virtually automatically if it is possible to call up the tube size with the necessary process parameters. In some cases, the clamping lengths for processing are 1 to 1.5 times the tube diameter.

Our new t form FLARELINE 28, 42 and 115 machine generation reduces the set-up time when changing tools and the operator can set up the machine in less than three minutes.
