Production cell concept for fully automated pipe production from transfluid

3D-Darstellung einer automatisierten Rohrfertigungszelle mit Coilzuführung, Stufenförderer und integrierter Biegeanlage.

TPC 628:
Compact production cell concept for fully automatic tube production

Attractive price/performance ratio
Low space requirement
High flexibility
Customized solutions depending on market requirements
Loading of bar stock or coil material
Machining of one or both tube ends
Copper (up to Ø 1.10 in) and stainless steel (up to Ø 0.87 in)

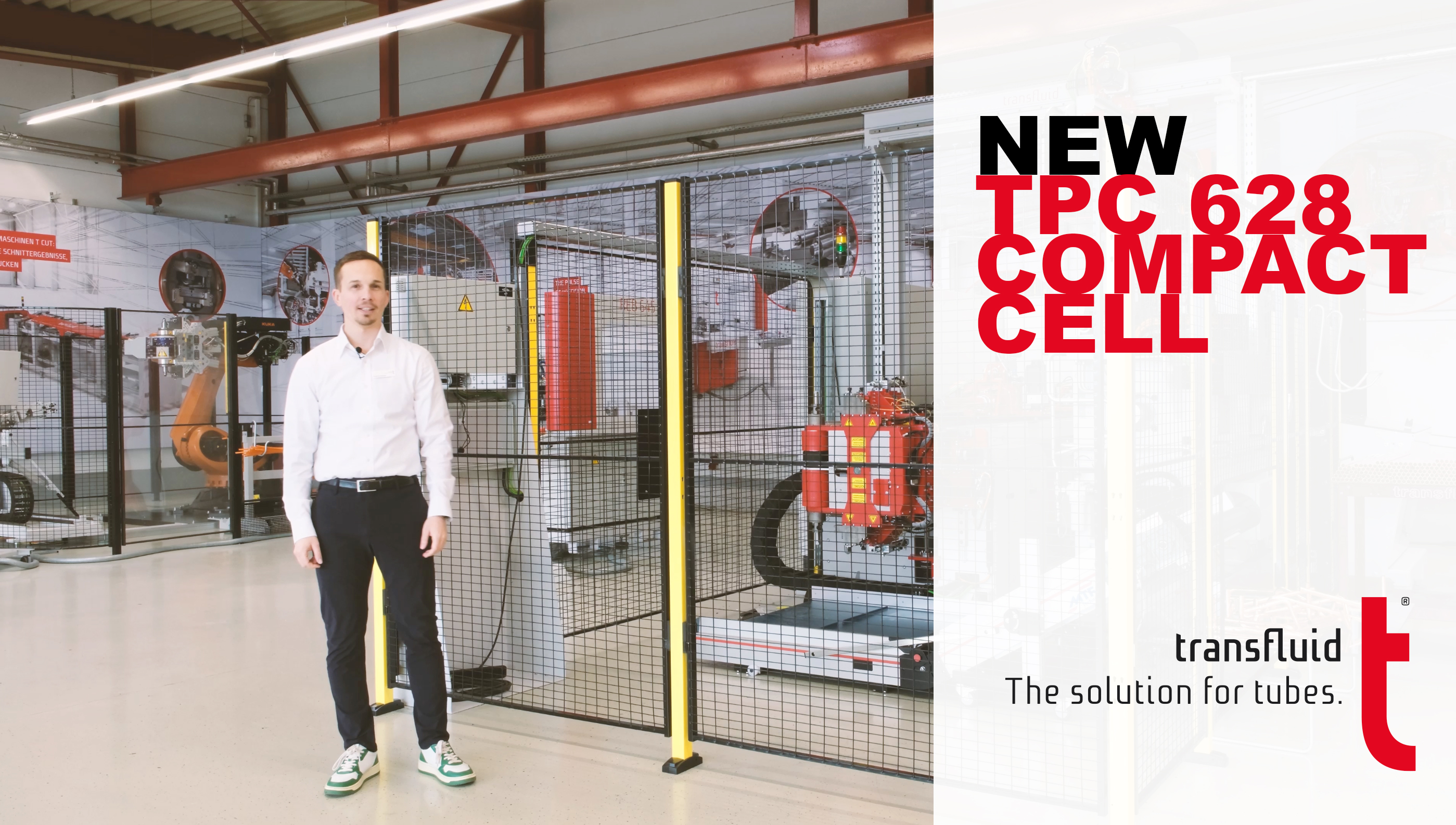

transfluid TPC 628 Compact Cell – automatisierte Rohrfertigungsanlage mit Bediener in Produktionsumgebung.

COMPACT, BUT HIGHLY FLEXIBLE

Due to the current demand in the renewable energy sector, particularly for heat pumps, but also for domestic hot water systems, we have decided to create a new compact production cell concept. This concept is specially tailored to this sector and offers the customer an increase in capacity with minimal space requirements at a good price-performance ratio.

Advantages:

Attractive price, good price/performance ratio
Extremely compact, low space requirement
High flexibility for short tubes
Bending with and without mandrel possible
Tube ends can be processed on both sides (depending on geometry)
Production cell can be expanded as required
Punching of holes on the bending machine possible (depending on geometry)
Volatilizing lubricants that make any washing of the tube superfluous
Low lubricant consumption
Central system control
Fast, easily accessible tool change
Modular design of the system

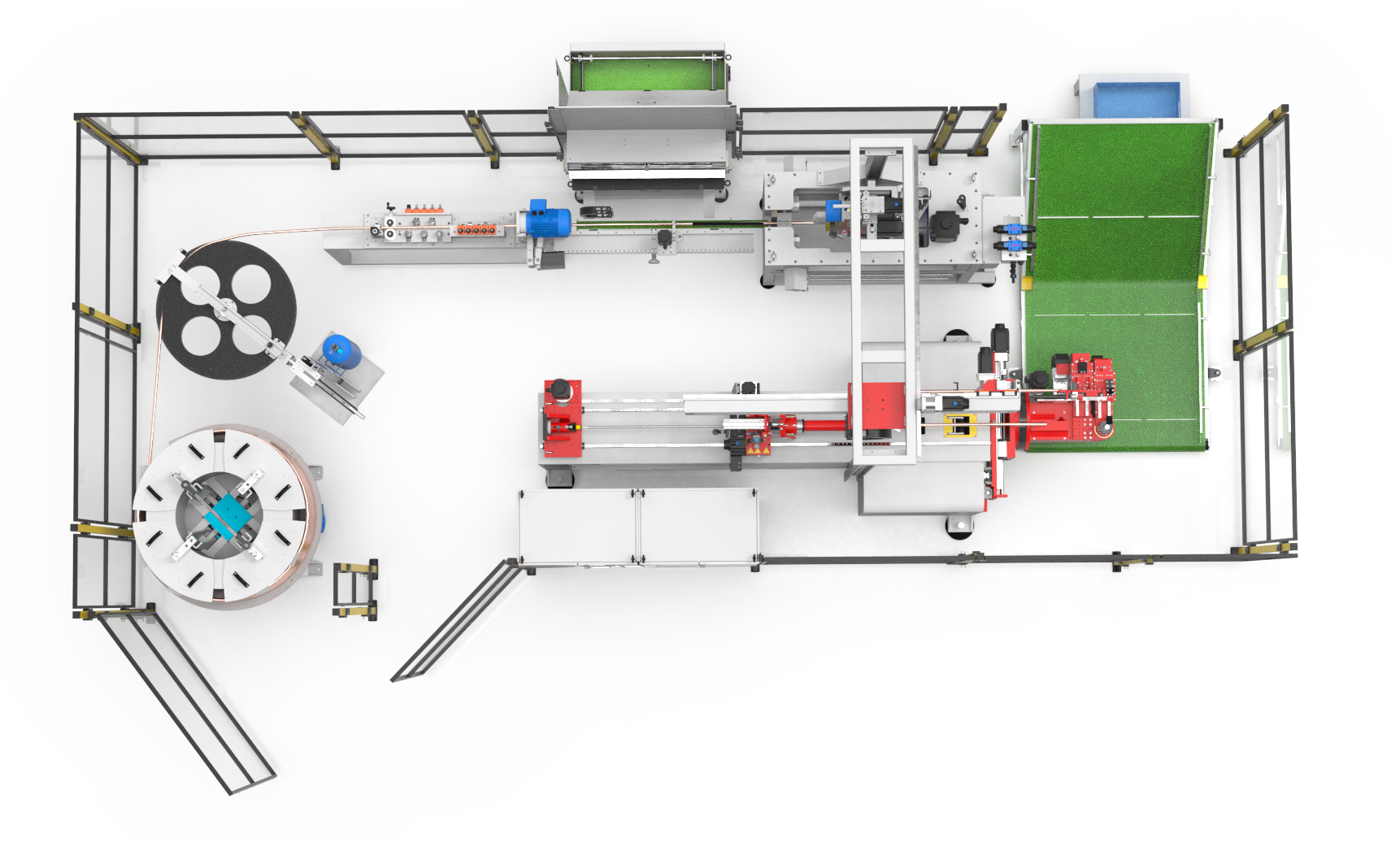

Automatisierte Rohrfertigungszelle mit Coilzuführung, Stufenförderer und Biegeanlage in Draufsicht.

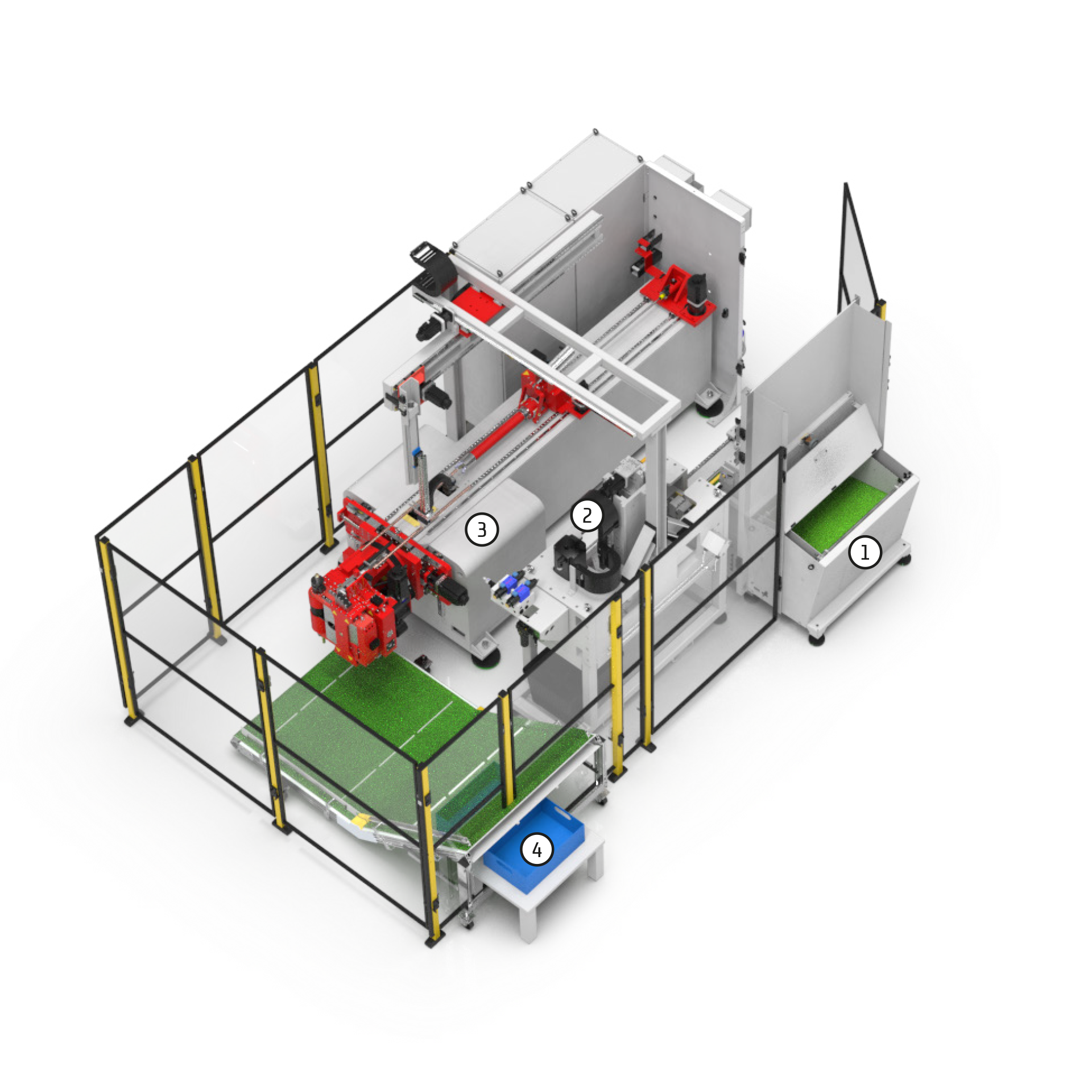

Automatisierte Rohrfertigungszelle mit Roboter und integrierten Bearbeitungsstationen.

Version 1:

Loading of finished blanks up to 3 ft 3.37 in

Loading of the blanks via step conveyors
Forming of the 1st tube end - if necessary, turning of the tube and forming of the 2nd tube end
Right/left mandrel bending machine
Discharge via conveyor belt

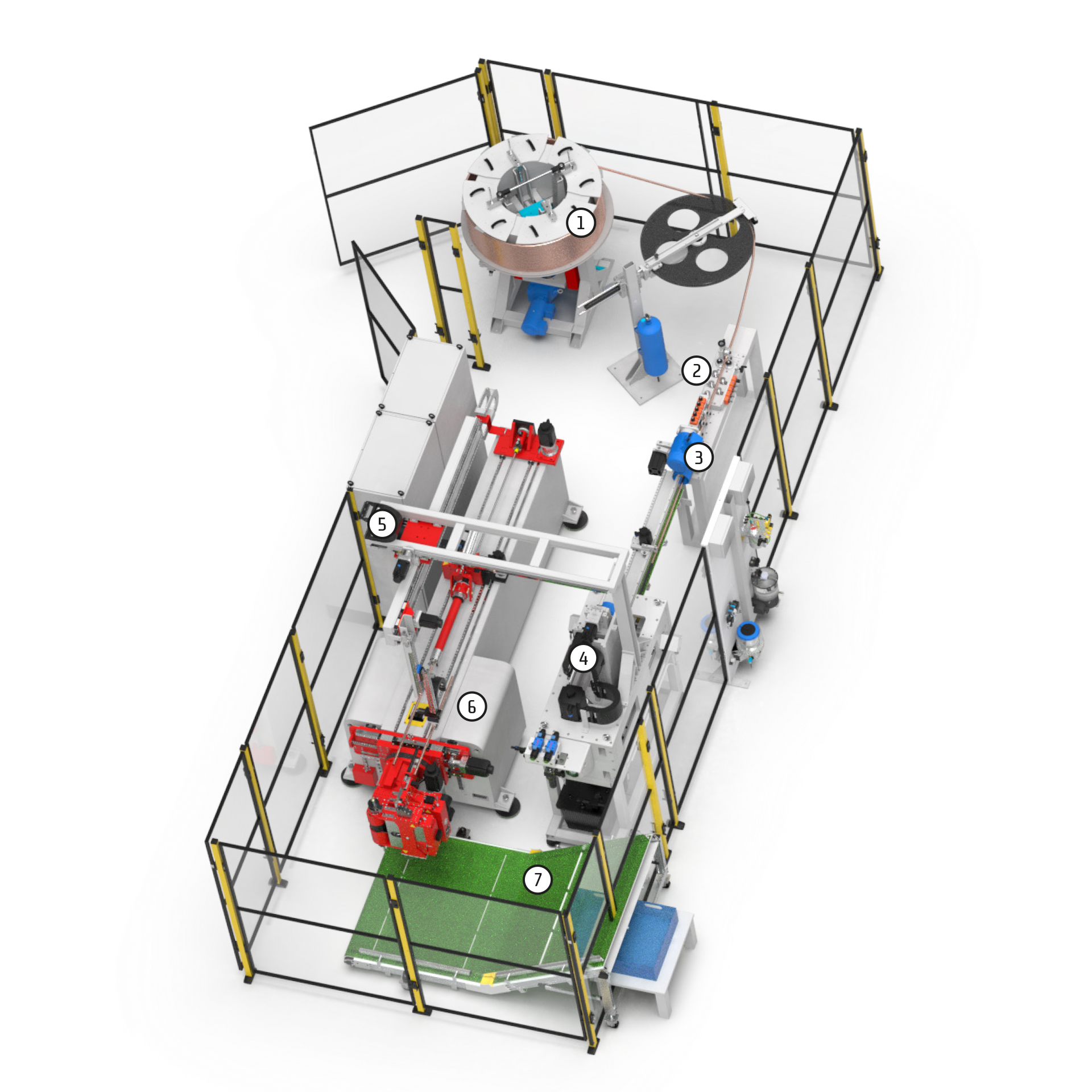

Automatisierte Rohrfertigungszelle mit nummerierten Prozessschritten und Fördertechnik.

Version 2:

Coil feeding incl. straightening and cutting to length

Feeding the tubes as coil material
Tube straightening section
Calibrating and chipless cutting of the tubes
Forming of the 1st tube end - if necessary, turning of the tube and forming of the 2nd tube end
Compact handling
Right/left mandrel bending machine
Discharge via conveyor belt

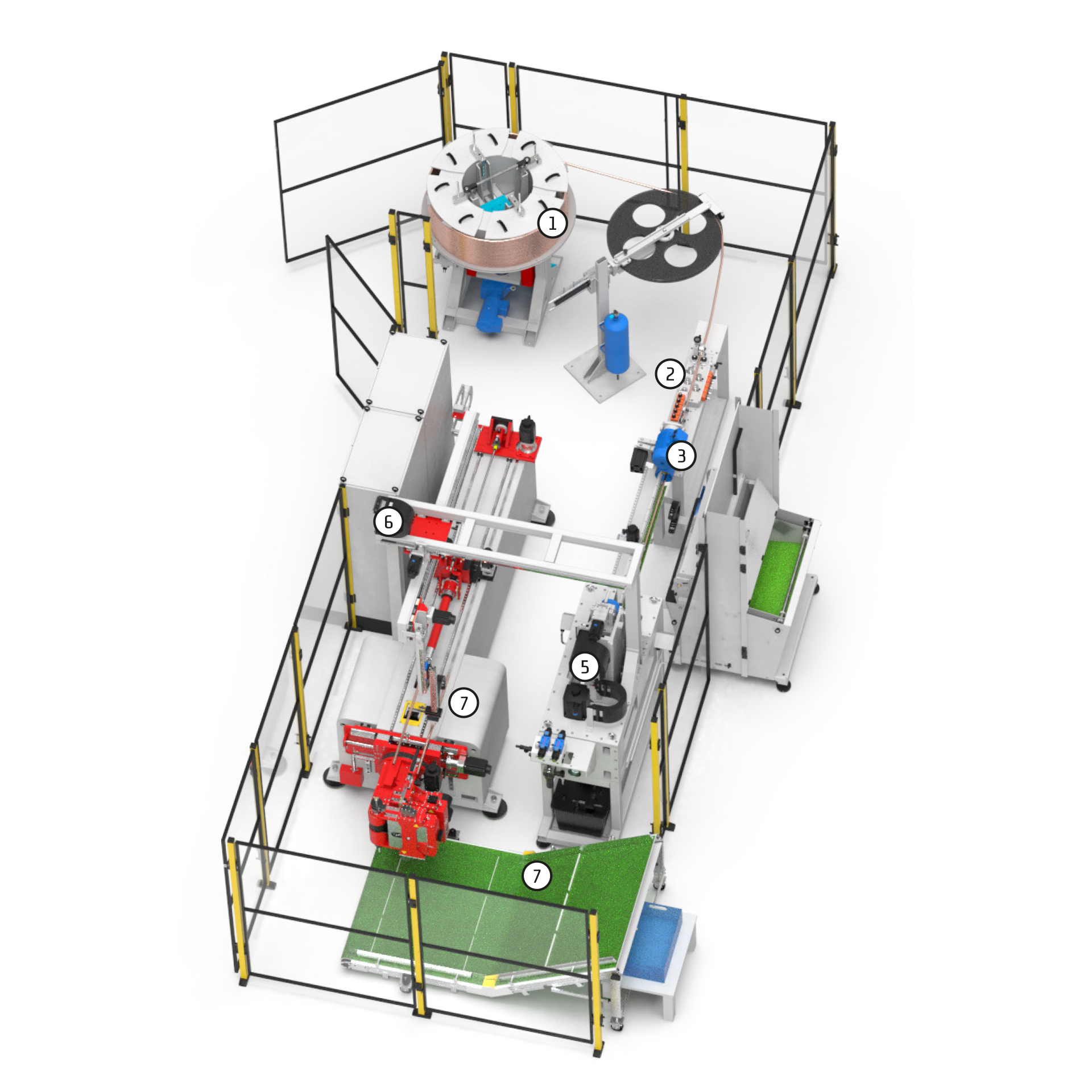

Automatisierte Rohrfertigungszelle mit nummerierten Prozessstationen und Roboter.

Version 3:

Combination of straight tube feed and coil feed

Feeding the tubes as coil material
Tube straightening system
Calibration and chipless cutting of the tubes
Alternative to coil: feeding of fixed lengths up to 3 ft 3.37 in
Forming of the 1st tube end - if necessary, turning of the tube and forming of the 2nd tube end
Compact handling
Right/left mandrel bending machine
Discharge via conveyor belt

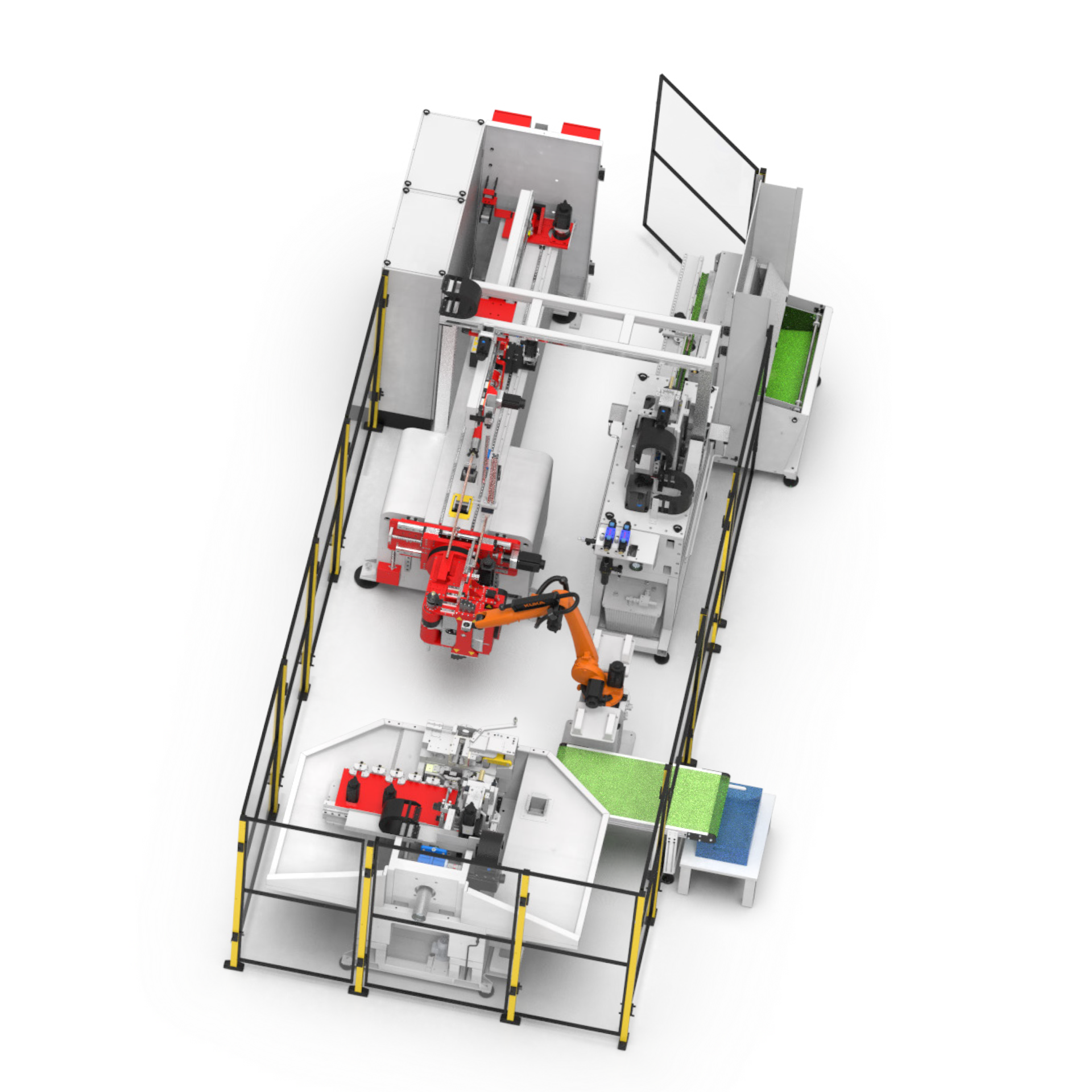

Kompakte automatisierte Rohrfertigungszelle mit Roboter und Fördertechnik.

Further expansion stages:

The new production cells can be expanded as required, e.g. to include

- Processing the second tube end or trimming the excess length

- Necking

- Nut feed

- Camera station

- Printing/labeling stations

- and much more
