Next generation software

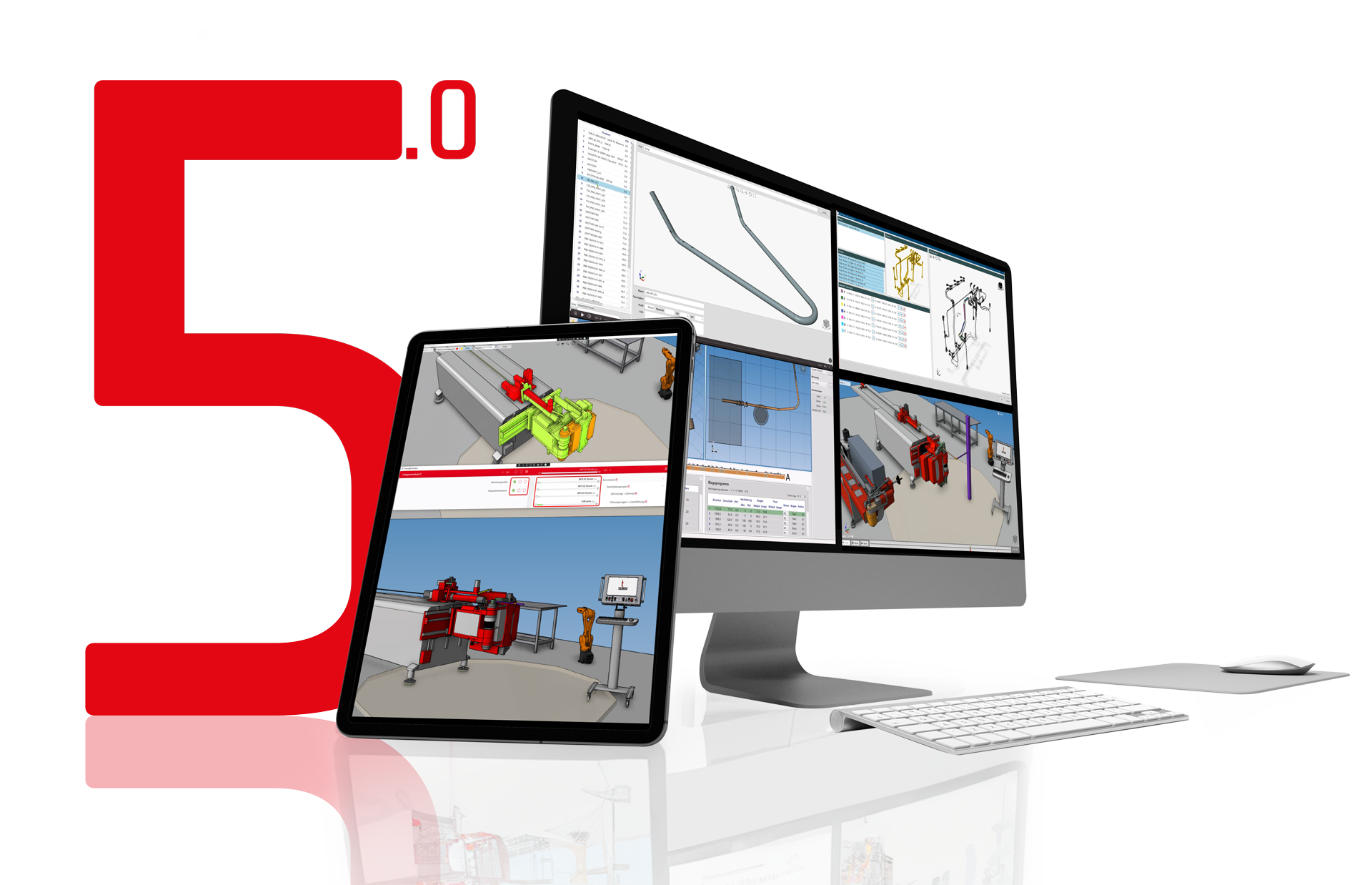

transfluid T-Project 5.0 Software auf Desktop und Tablet zur Simulation von Rohrbearbeitungsprozessen.
  • Digital and smart - complete mapping of the bending process from design to production
  • Clearly calculated - precise cycle times even before the start of production
  • Efficient programming - batch import, easy teach and intuitive operation for fast results
  • Seamlessly integrated - open interfaces to CAD, ERP and PDA systems for Industry 4.0
  • Future-proof - modularly expandable, upgradeable and also suitable for existing systems

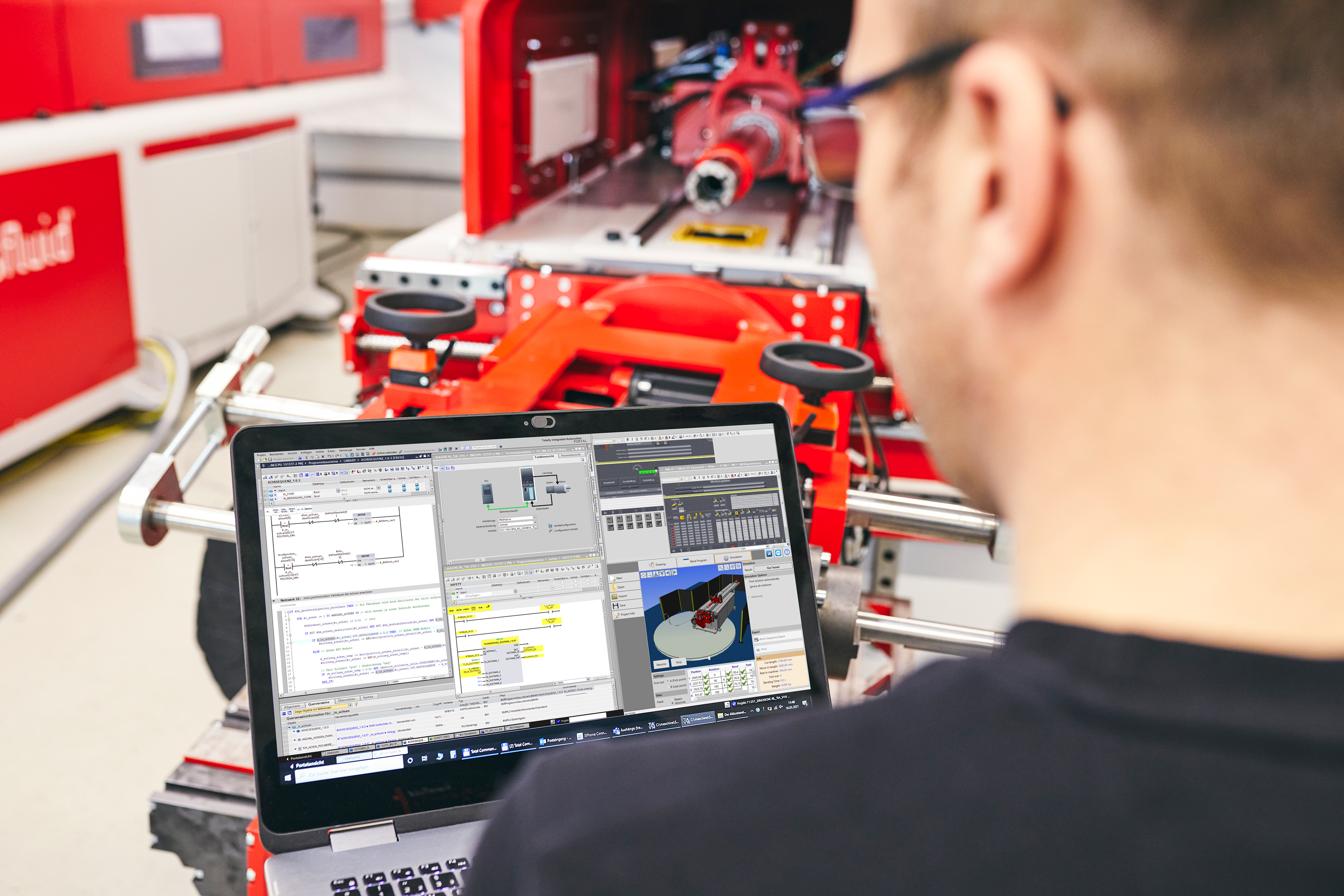

transfluid T-Project Software auf Laptop zur Steuerung einer Rohrbiegemaschine

DIGITALLY PROGRAMMED

t project BENDING SOFTWARE - Software of the next generation

The finished component with fewer process steps: t project BENDING SOFTWARE provides you with all the variables of the bending process even before production begins. Even complex bending geometries can be planned and implemented in a material-adapted and collision-free manner.


Test virtually, save time in real life: The simulation determines exact bending times and cut lengths and checks tube geometries for feasibility in advance. Tube data and results are documented precisely and are 100% reproducible.



All common interfaces are available for import, export and networking with BDE or ERP systems.



t project BENDING SOFTWARE - Intelligent software for smarter production.

NEW FUNCTIONS

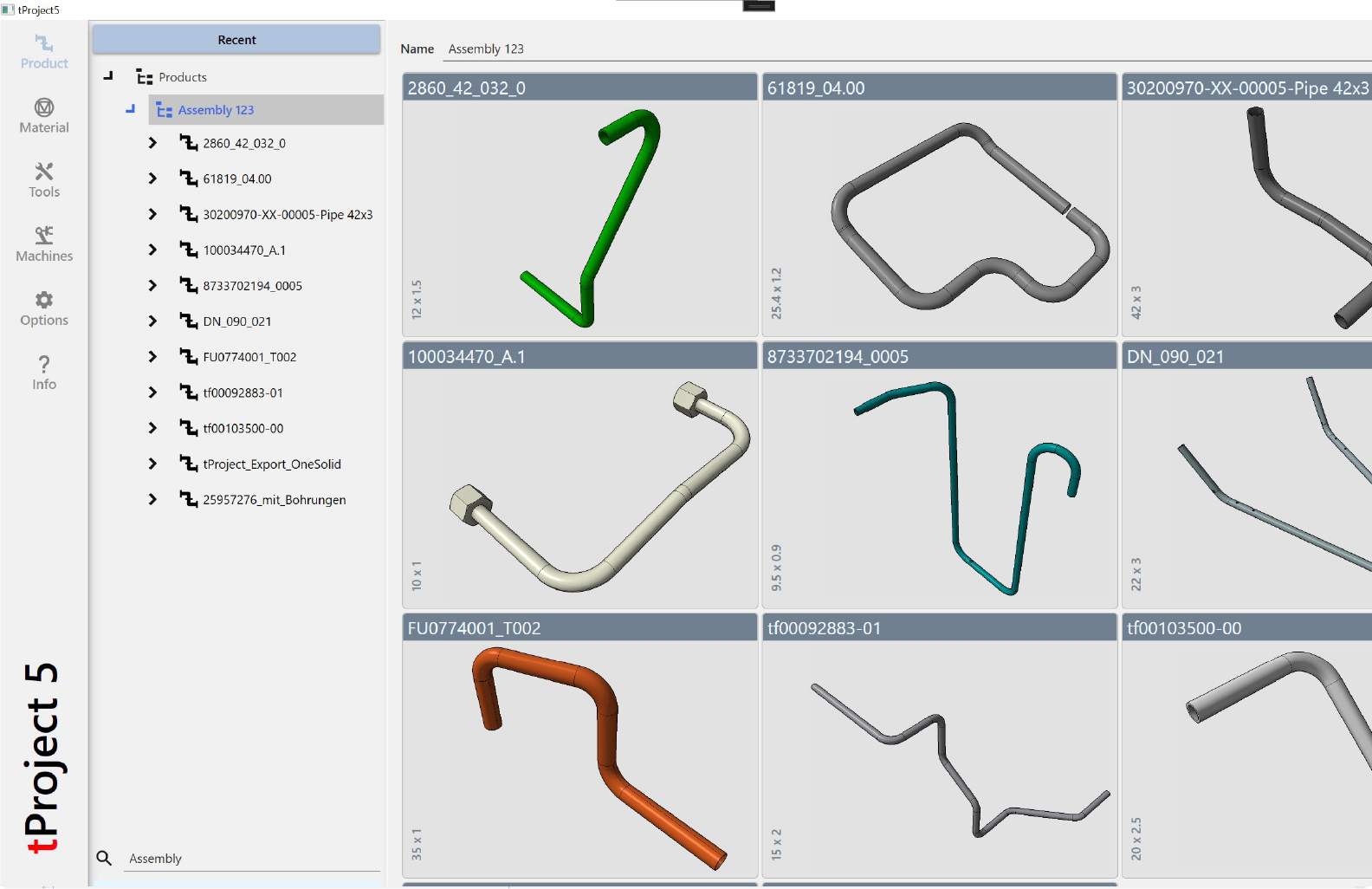

  • 3D-Übersicht von Rohrbauteilen in CAD-Software zur Verwaltung von Biegeprojekten.

    PRODUCT DATABASE

    Integrated product databases for managing complete tube assemblies, including visualization of drill holes, forming and nuts.

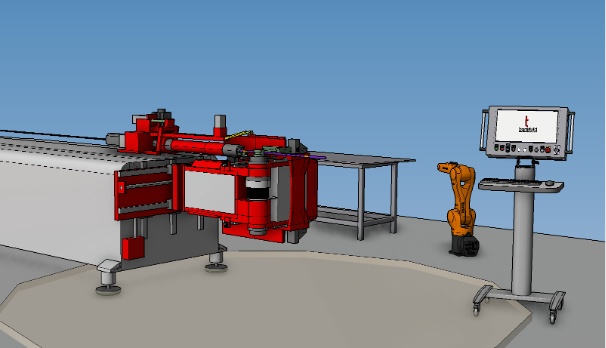

  • transfluid t project Simulation einer Rohrbearbeitungsanlage mit digitalem Zwilling und Offline-Programmierung für kollisionsfreie Fertigungsplanung.

    BATCH IMPORT & AUTOMATIC SIMULATION

    Visualization of assemblies including all add-on parts for precise planning and control as early as the design phase. Automatic calculation, simulation and optimization of the entire assembly, reliable, fast and reproducible.

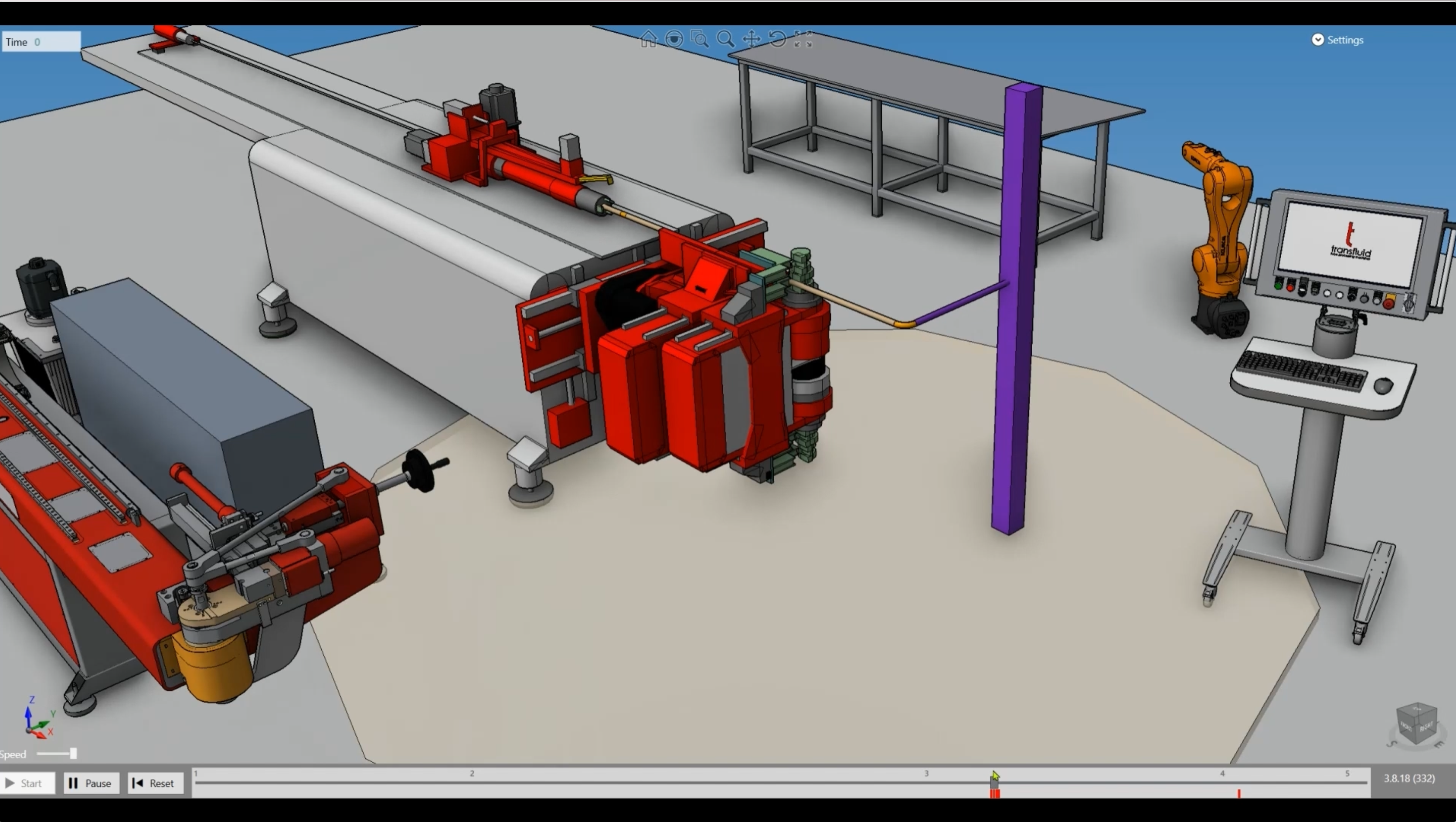

  • Rohrbiege-Simulation mit Kollisionsprüfung in der transfluid t project Software, inklusive 3D-Maschinenmodell, Roboter und Steuerung.

    TOOLCHECK

    With the ToolCheck function, all safety-relevant tool settings can be checked for machine collisions and optimized using a graphical solution search.

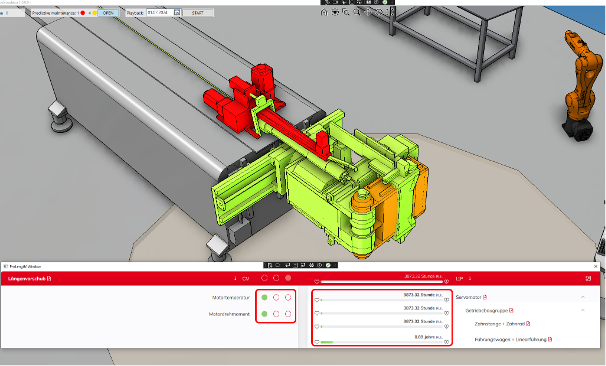

  • transfluid t project Software mit Predictive Maintenance und digitalem Zwilling zur Simulation und Überwachung von Rohrbearbeitungsanlagen.

    PREDICTIVE MAINTENANCE

    Monitoring the condition and wear of individual machine groups to optimize maintenance intervals.

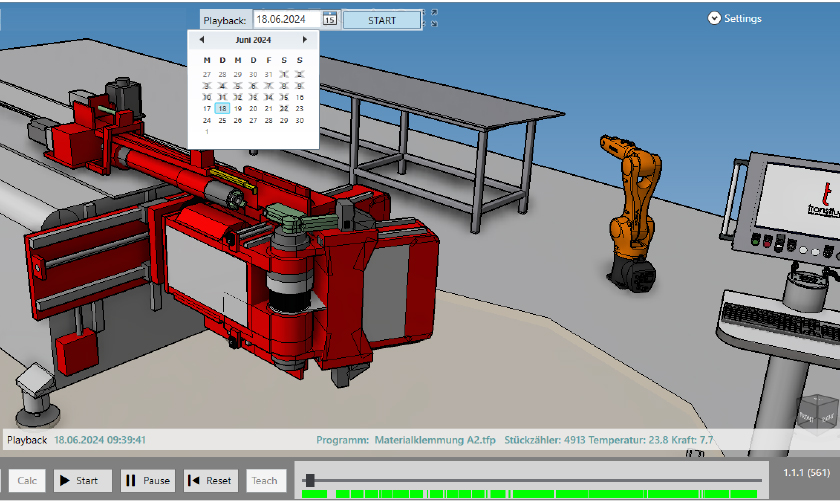

  • Simulation einer Rohrbiegemaschine mit Playback-Funktion, Roboter und Steuerpult.

    PLAYBACK

    1:1 tracking of the machine status - live or time-delayed.

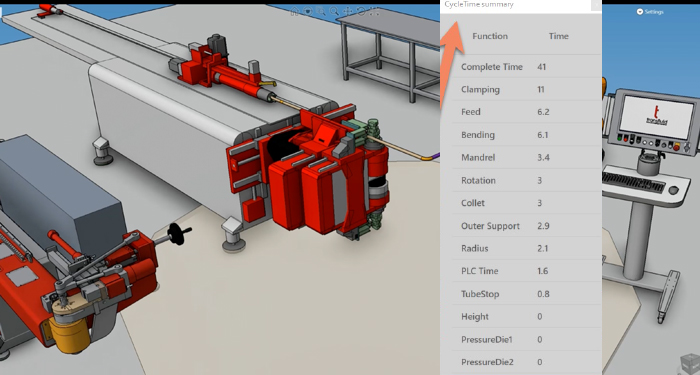

  • Transfluid t project Software mit 3D Rohrbiegesimulation und Zykluszeitanalyse.

    AUTOMATIC CYCLE TIME ANALYSIS IN REAL TIME

    Fully automatic, precise cycle time determination based on real axis speeds directly from the machine PLC.

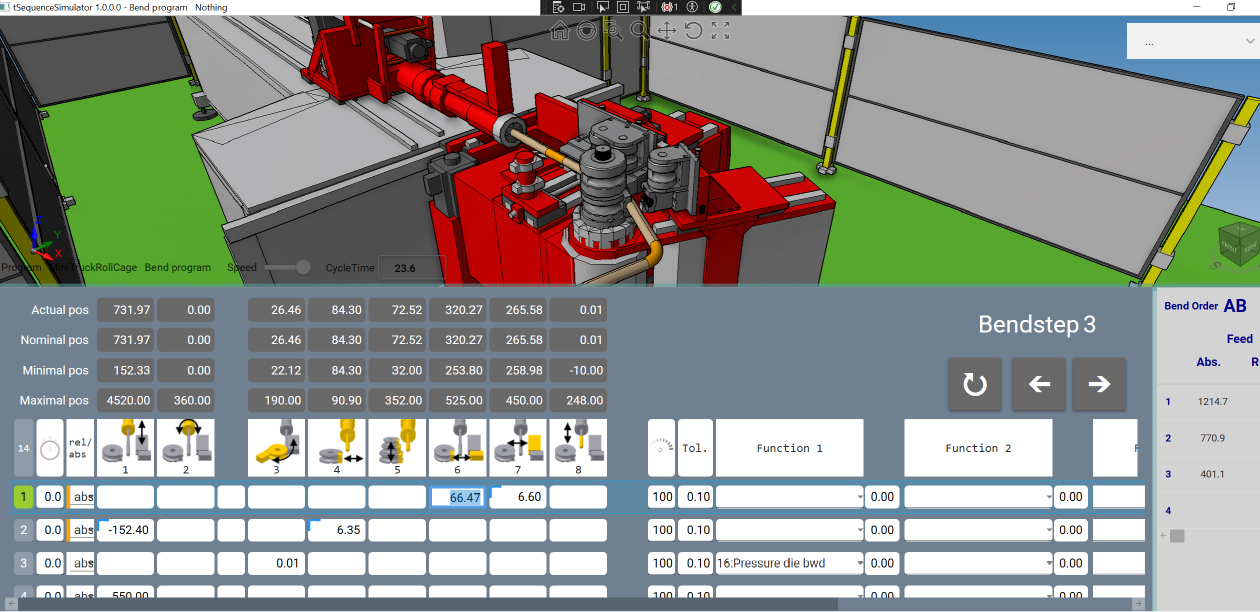

  • Offline-Programmierung einer Rohrbiegemaschine mit Bendstep-Steuerung und Prozessparametern.

    DIGITAL TWIN

    Complete offline programming of all machine functions and highly complex components with integrated testing and error analysis - including special equipment, process optimization and sequence simulation.

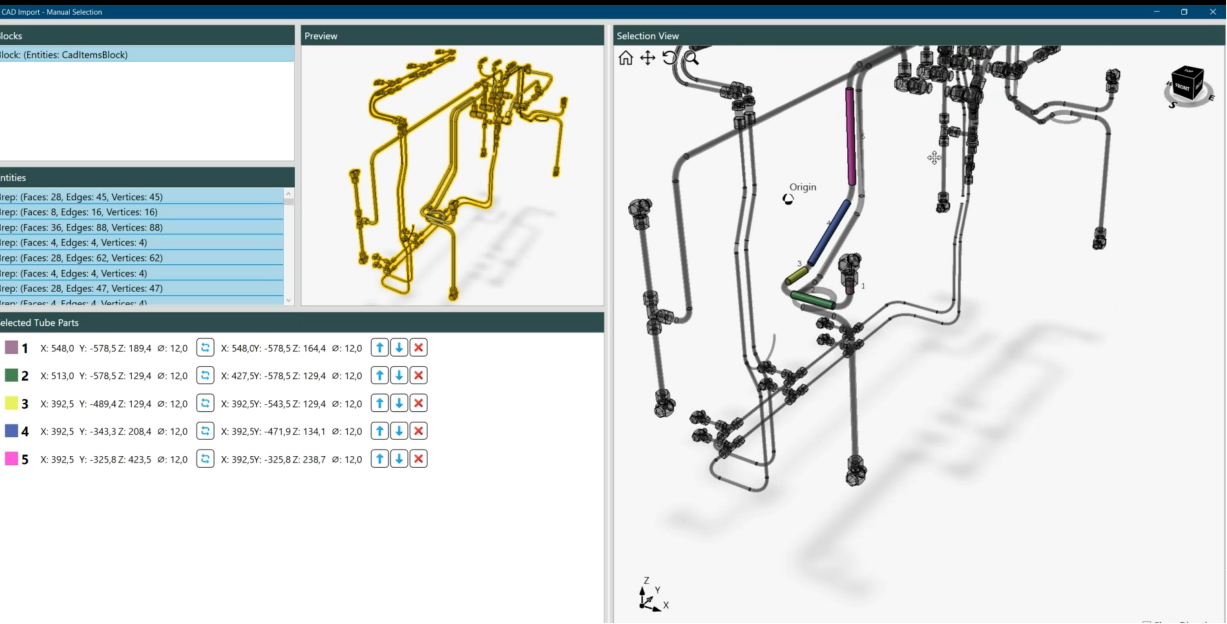

  • CAD-Import einer Rohrbaugruppe mit Auswahl einzelner Rohrsegmente in 3D-Software.

    MANAGE LARGE ASSEMBLIES

    An assembly or other group of parts can be simulated in an automatic batch processing mode. (All parts are sent to the simulator as a simulation queue)

Images 1/0

Our solution for your individual requirements

We have developed our t project software in two versions, which are available as single-user or network versions. For optimum data backup, t project can be integrated centrally into the company's internal backup system. Customer-specific adaptations, extensions or interfaces are easily possible.

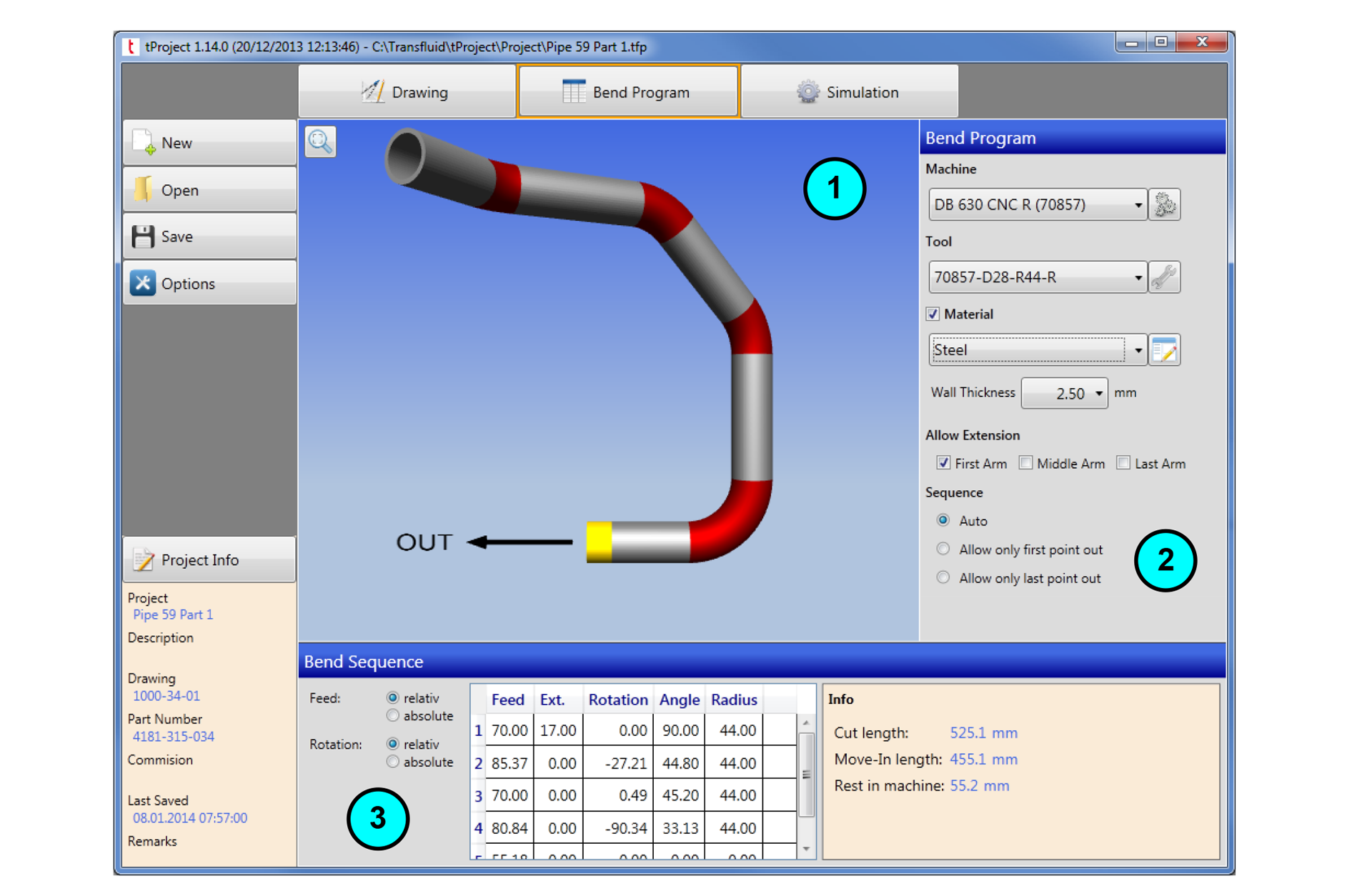

transfluid t project Software mit Bend Program zur Planung und Simulation von Rohrbiegeprozessen inklusive Kollisionsprüfung und Biegesequenz.

t project Basic

  • Input and calculation of tube runs
  • Direct conversion of isometrics into bending data
  • Automatic calculation of correction and overbend values
  • The dimension of the spatial diagonal from tube start A to tube end B enables the operator to carry out simple, manual checks on the bent part.
  • Import interfaces of the software are for example "Iges, STEP, JT or PCF" as a connection to CAD, measuring machines and/or Office programs

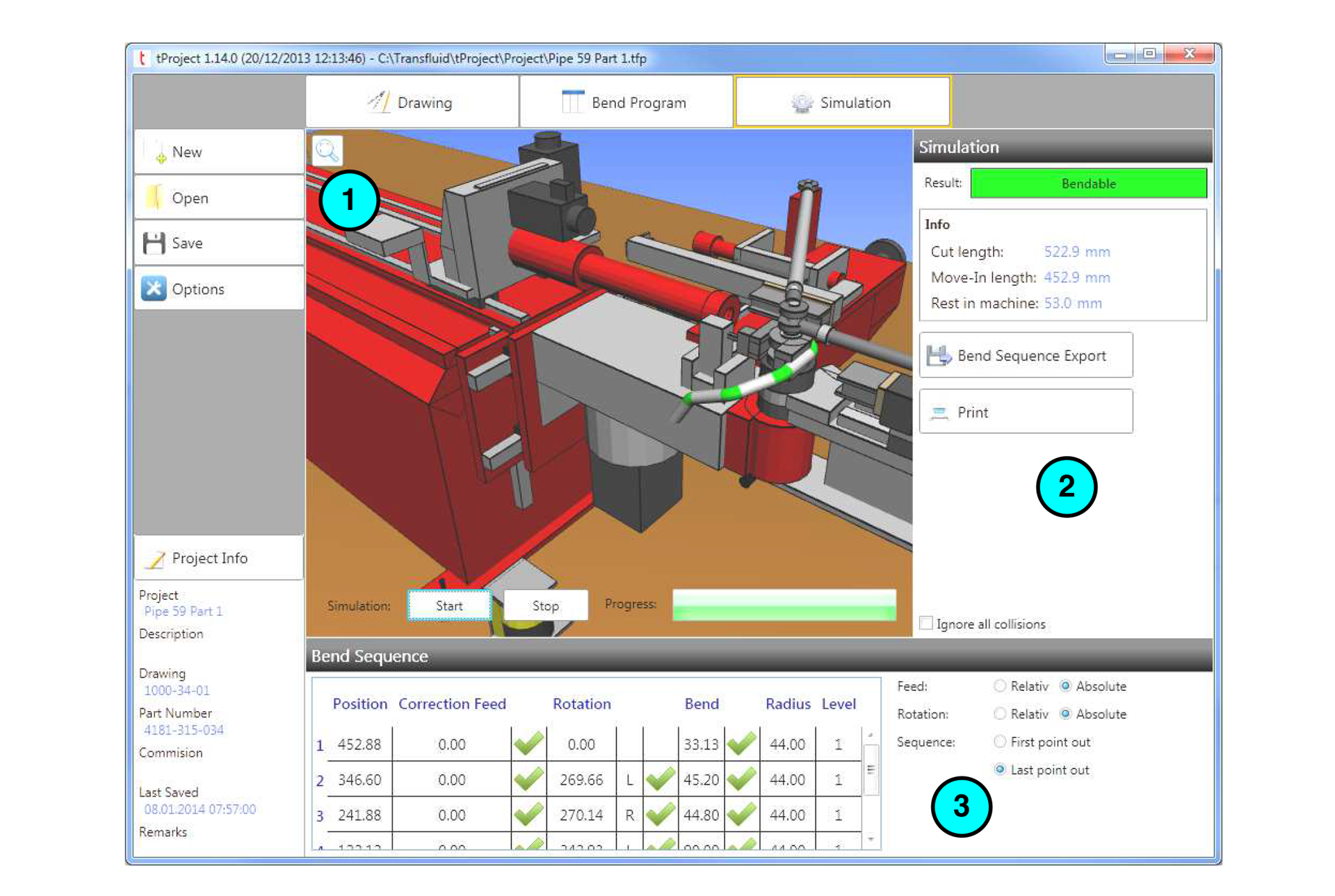

transfluid t project Software mit Biege-Simulation und Kollisionsprüfung zur Offline-Programmierung von Rohrbiegeprozessen.

t project Professional

  • Input and calculation of tube runs with collision check
  • Has the same basic features as t project Basic
  • Necessary extensions are calculated automatically
  • Additional production reliability: before the bending process, the collision test determines the feasibility of the tube geometry - collisions with the machine or the machine environment are therefore ruled out
  • In the event of a collision, the software offers alternative solutions
  • The software takes all dimensions for the collision test from the CAD model of the bending machine
  • Spatial conditions can also be taken into account during the collision test (pillars, shelves, floor, etc.)
  • It is also possible to simulate tubes that already have flanges or formings
