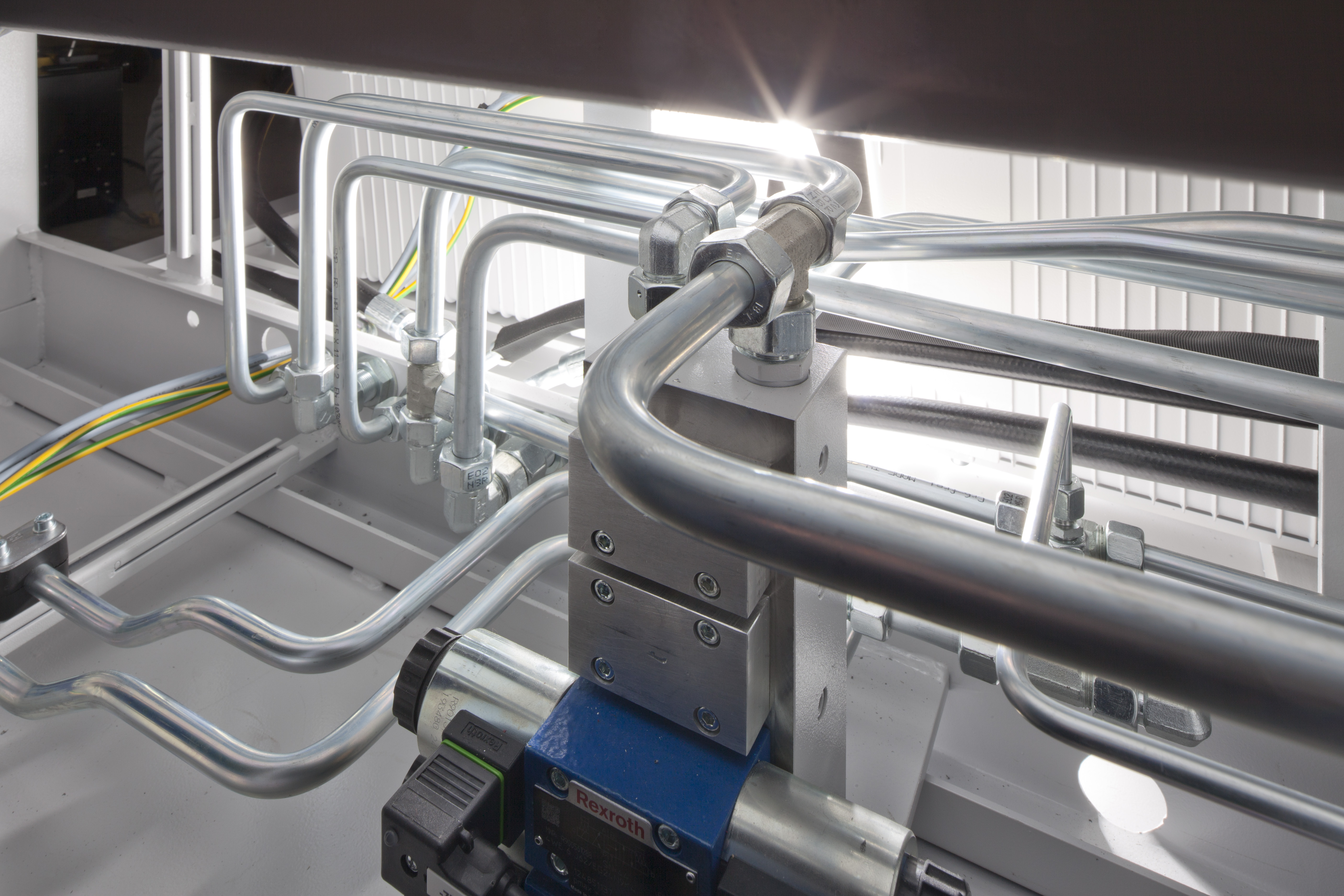

Gebogene Hydraulikrohre und Verschraubungen in industrieller Rohrverrohrung.

Fast and safe:
T WORK ASSEMBLY DEVICES

ARE VERY FLEXIBLE AND IMPRESS WITH THEIR PERFORMANCE

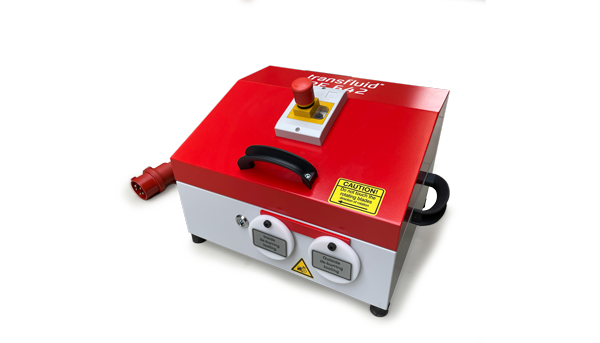

transfluid RE 642 mobiles Rohrbearbeitungsgerät mit Steuerbox und Not-Aus-Schalter.

Tube deburring machine

The electrically driven tube deburrer is used for the external and internal deburring of hydraulic tubes. The durable and efficient milling tools can deburr any cut.



The tools are easy to dismantle and can be resharpened and adjusted.



Tube sizes:

- 6-42 mm

- 20-60 mm

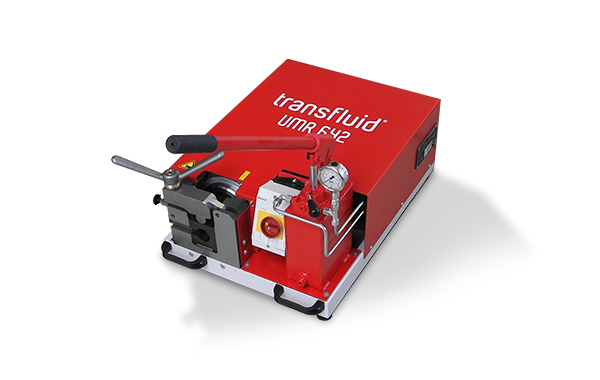

Transfluid Rohrbearbeitungsmaschine t work zur präzisen Rohrumformung auf weißem Hintergrund.

Rotary forming machine

High-quality results can be achieved with our forming machine with rotating head. The forming of tube ends with angles between 37° and 90° is possible using a tool-based rotary process.



Optimum sealing surfaces and short clamping lengths can be easily achieved.



- Manual clamping

- Manual feed with hand pump

- Rotation tool carrier electric

- Working range: 6-42 mm

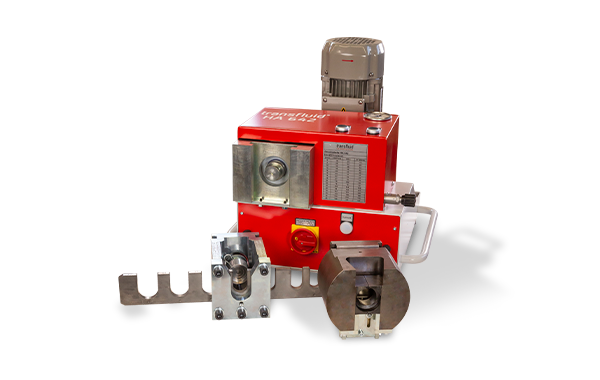

Transfluid Rohrumformmaschine mit Spannsystem und Hydraulikeinheit für präzise Rohrbearbeitung.

Electro-hydraulic drive

Whether as a combination or individual machine for classic cutting ring assembly and 37° flanging: our electro-hydraulically driven devices work with high precision.



The lightweight, convenient and powerful transfluid pre-assembly and flaring machines for external assembly are the perfect start for reliable quality assembly.



- Suitable for tube sizes from 6-42 mm

- Interchangeable attachments

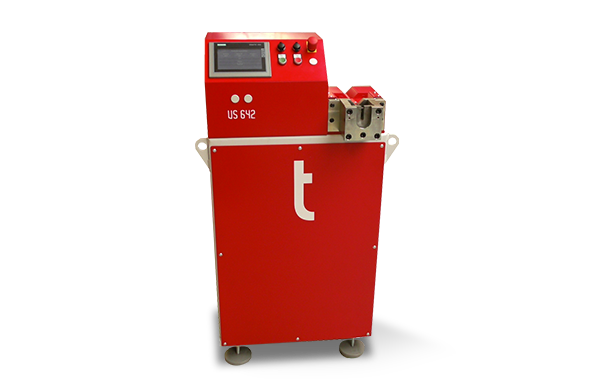

Transfluid US 642 Rohrbearbeitungsmaschine mit Touchpanel und Spannsystem auf weißem Hintergrund.

Pre-assembly devices - automatic orientation and pressure detection

The efficient assembly solution for medium and large series for the pre-assembly of cutting rings and multi-cutting rings to DIN 2353. The machine can be used either mobile or stationary.



- Fast cycle times

- Reliable processing (pressure and direction control)

- Digital input and storage of process data

- Great freedom of assembly

- For tubes from 6-42 mm

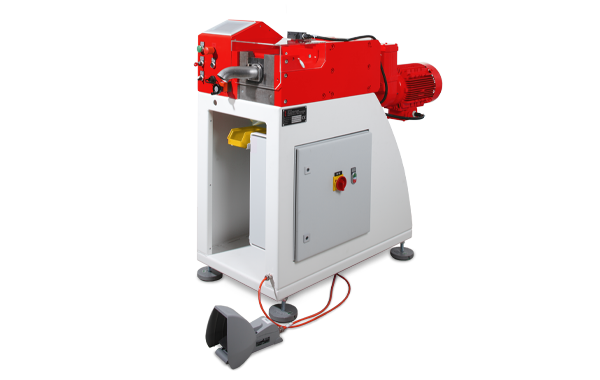

Transfluid Rohrbiegemaschine mit Elektromotor und Fußpedal zur präzisen Rohrbearbeitung.

Tube chamfering machine

The transfluid tube chamfering machines are equipped with different drives and tools for different tube sizes. With special cutter heads, it is possible to bevel tubes with wall thicknesses of up to 20 mm.



The entire range of tube diameters is covered without having to change tools.



- for preparing weld seams on tubes with an angle of 30°

- Other angles on request

CATALOG DOWNLOAD

transfluid offers the complete package for processing tubes.

Download our new catalog.

Download PDF
