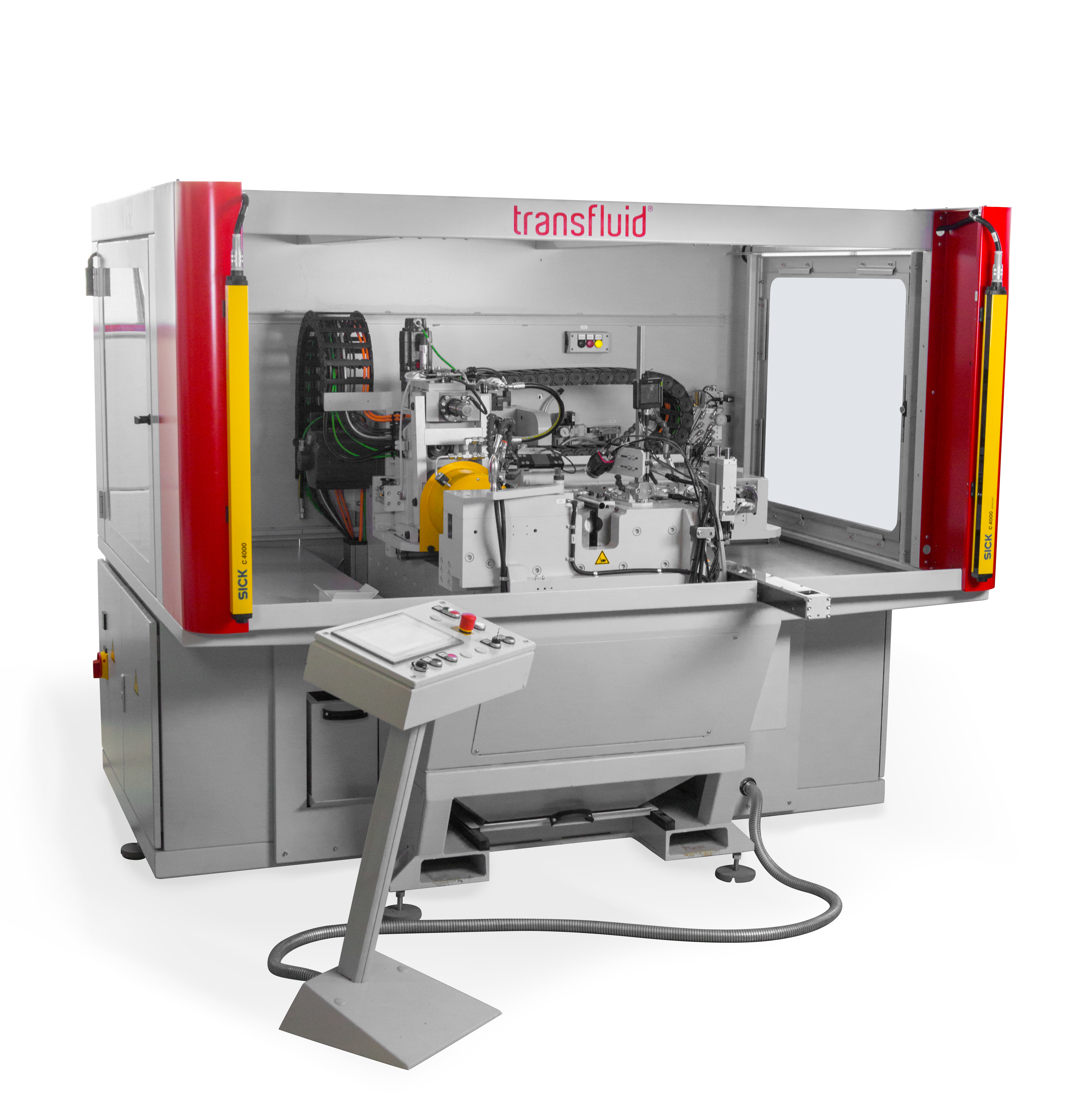

Transfluid CNC-Kombinationsmaschine REB SRM zur Rohrumformung und Rohrendenbearbeitung.

transfluid - t form COMBILINE
Combination machines

Multifunctional - combination of axial and rotary processes in one clamping operation
Process-integrated - less handling, more freedom
Powerful and precise - servo-electric drives with force and travel control for maximum precision
Material efficient - forming directly on the tube

CNC-Rohrumformmaschine zur präzisen Bearbeitung und Endumformung von Metallrohren.

THE BEST COMBINED. TWICE AS STRONG IN SHAPE.

t form COMBILINE - The all-in-one production center

t form COMBILINE is your all-in-one production center - the fusion of t form BOOSTLINE and t form MULTILINE.

You can do everything in one clamping operation: upsetting, rolling, thread rolling and cutting, chamfering, smoothing, cutting - fast, precise, smart. Whether stainless steel, steel or non-ferrous metal - this system knows almost no material limits. Thanks to servo technology and digital control, you can control the force and path on all axes with pinpoint accuracy.

t form COMBILINE - The best combined - twice as strong in shape.

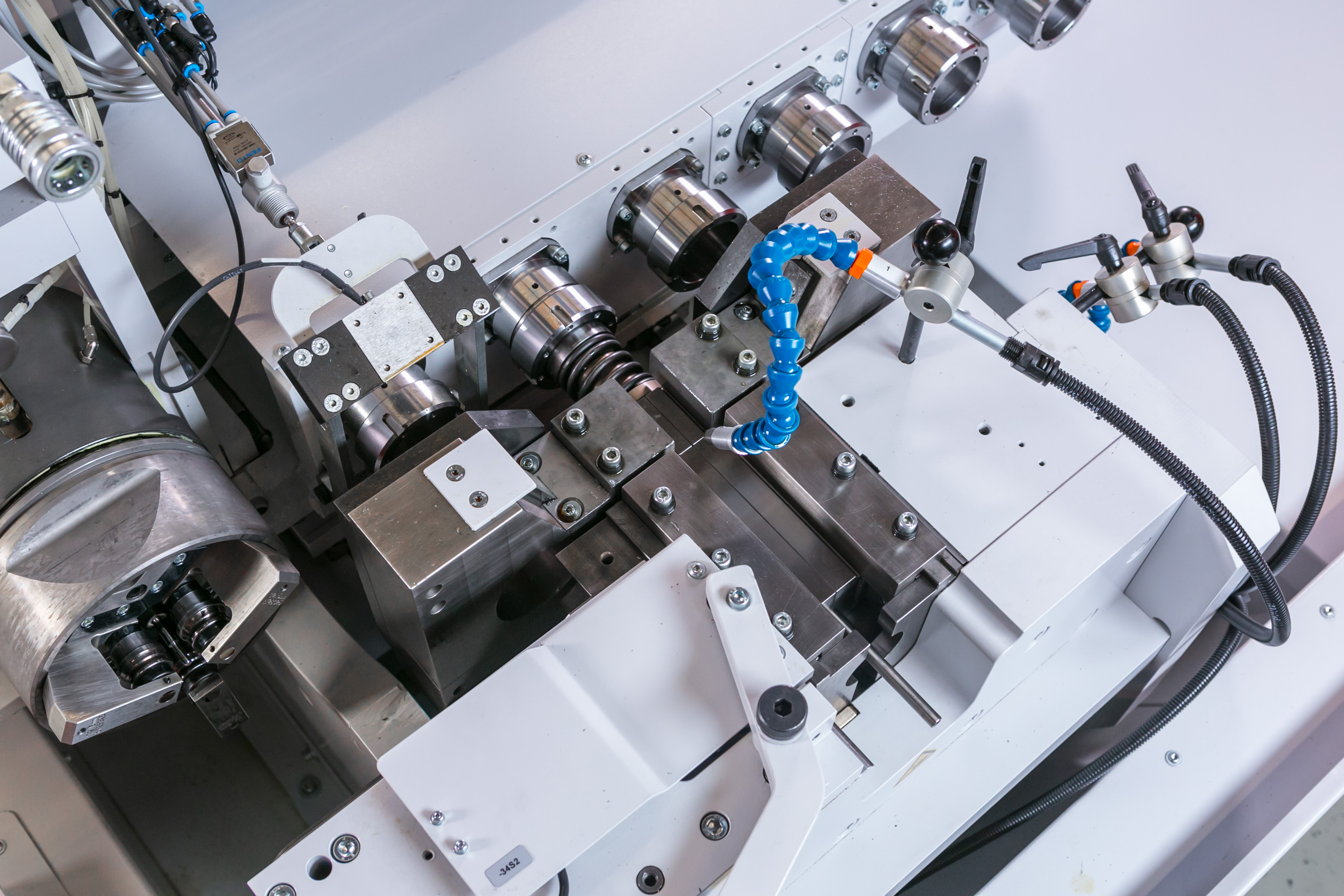

Detailansicht einer CNC-Rohrumformmaschine mit Werkzeugstationen zur präzisen Rohrendenbearbeitung.

A strong partnership:
Axial and rolling forming

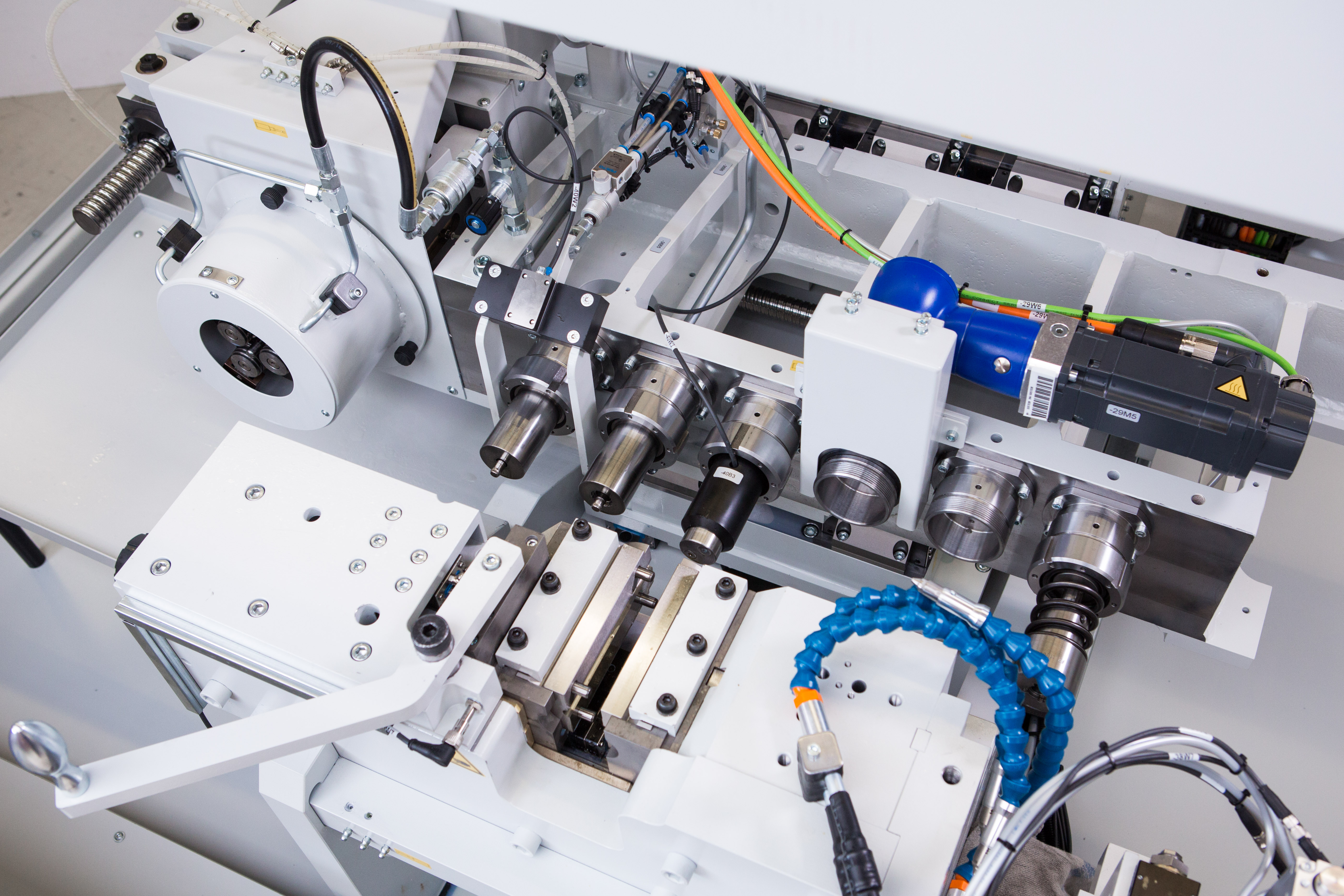

Our t form COMBILINE combination machines are the perfect combination of axial and rolling tube processing with up to six axial forming stages, a roll forming station and two electrically driven tool holders for flange orientation and an additional clamping element.

The horizontal clamping system enables the processing of bent tube geometries.

One machine, many advantages

The t form COMBILINE combines the machining advantages of axial and rotary forming processes in one clamping. This combination ensures minimum set-up times and the best possible forming results.

Your advantages at a glance

SEVERAL PROCESSES IN ONE MACHINE

Upsetting, rolling, smoothing, cutting or thread forming in a single pass.

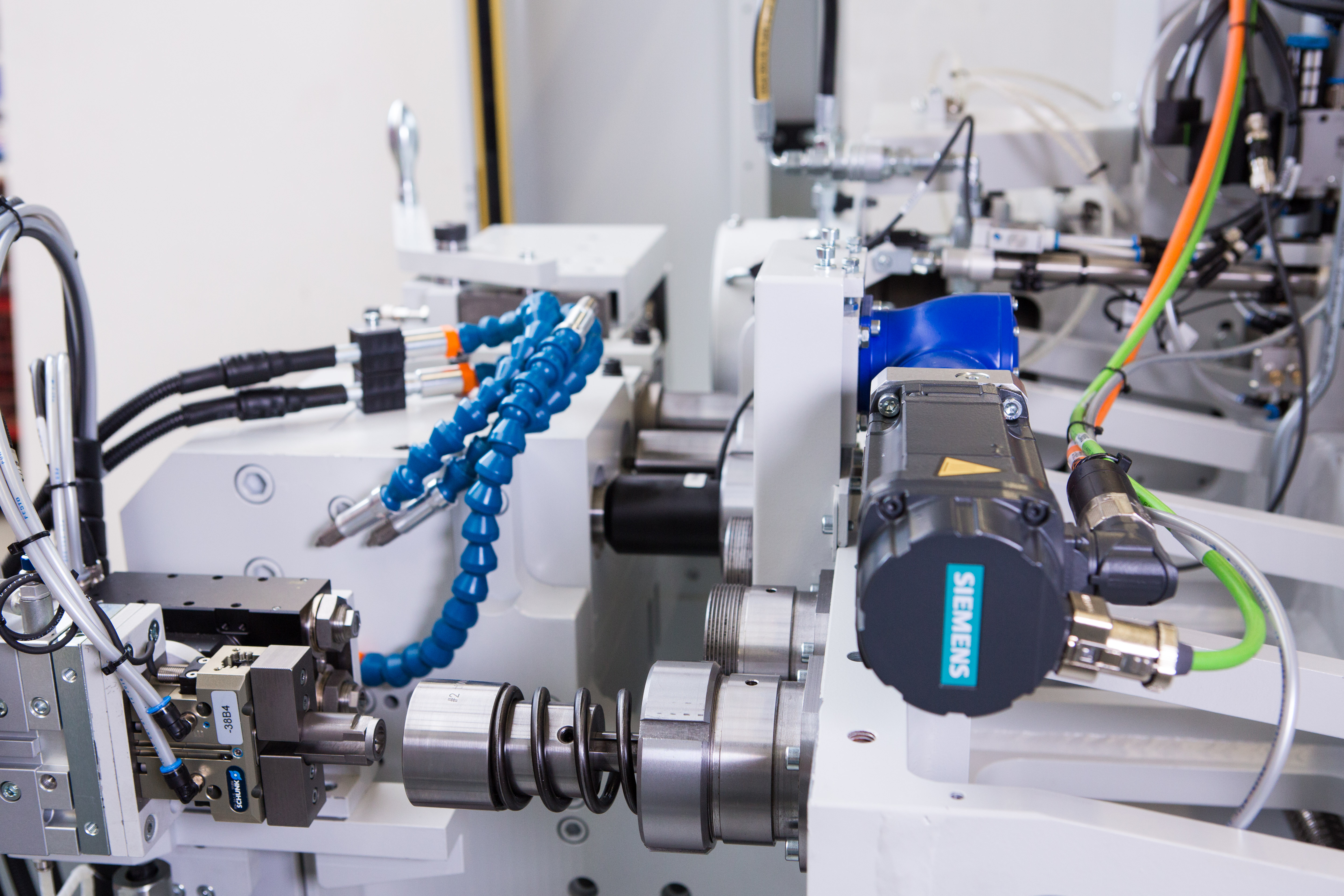

SERVO-ELECTRIC DRIVES

All drives are servo-electric and can be CNC-controlled if required.
FORMING DEGREES WITH HIGHEST PRECISION

Our axial technology expands the possibilities for forming tubes with minimal tooling.
SIMPLE CONTROL VIA TOUCH PANEL

With our combination machines, all settings can be pre-installed so that costly adjustments are no longer necessary.
PERFECT TUBE END PROCESSING FOR ALREADY BENT TUBES

The possible clamping lengths for machining are extremely short, which gives the user the option of always carrying out forming after the bending process.
CHIPLESS CUTTING

Different tool variants extend the processing options for chipless cutting or cutting after bending.

Images 1/0

The solution for maximum design freedom at the tube end

Forming & cutting, trimming, thread rolling, necking, expanding, reducing, chamfering and deburring possible with one machine
Roll forming possible from the inside to the outside or from the outside to the inside, depending on the tool
Short clamping lengths, horizontal clamping mechanism for processing tubes bent backwards, optional vertical material clamping
Automatic tool recognition and workpiece recognition as an option (RFID and codes)

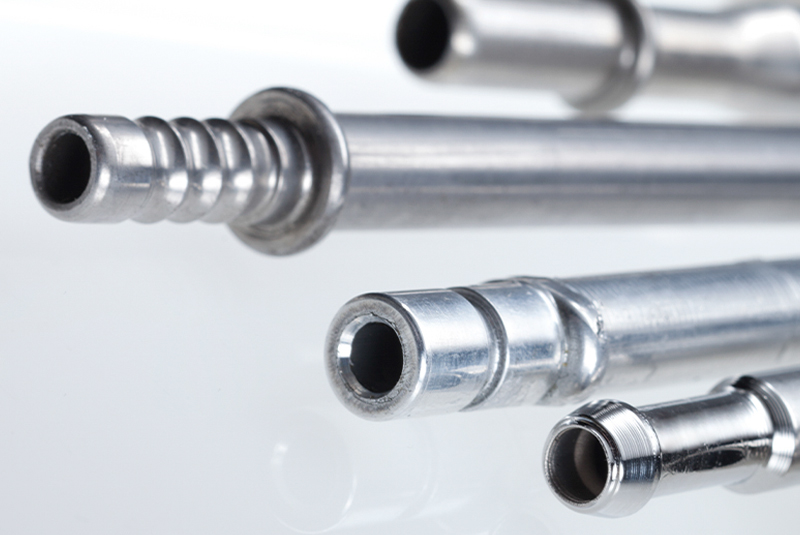

Metallrohre mit präziser Endumformung und unterschiedlichen Anschlussprofilen.

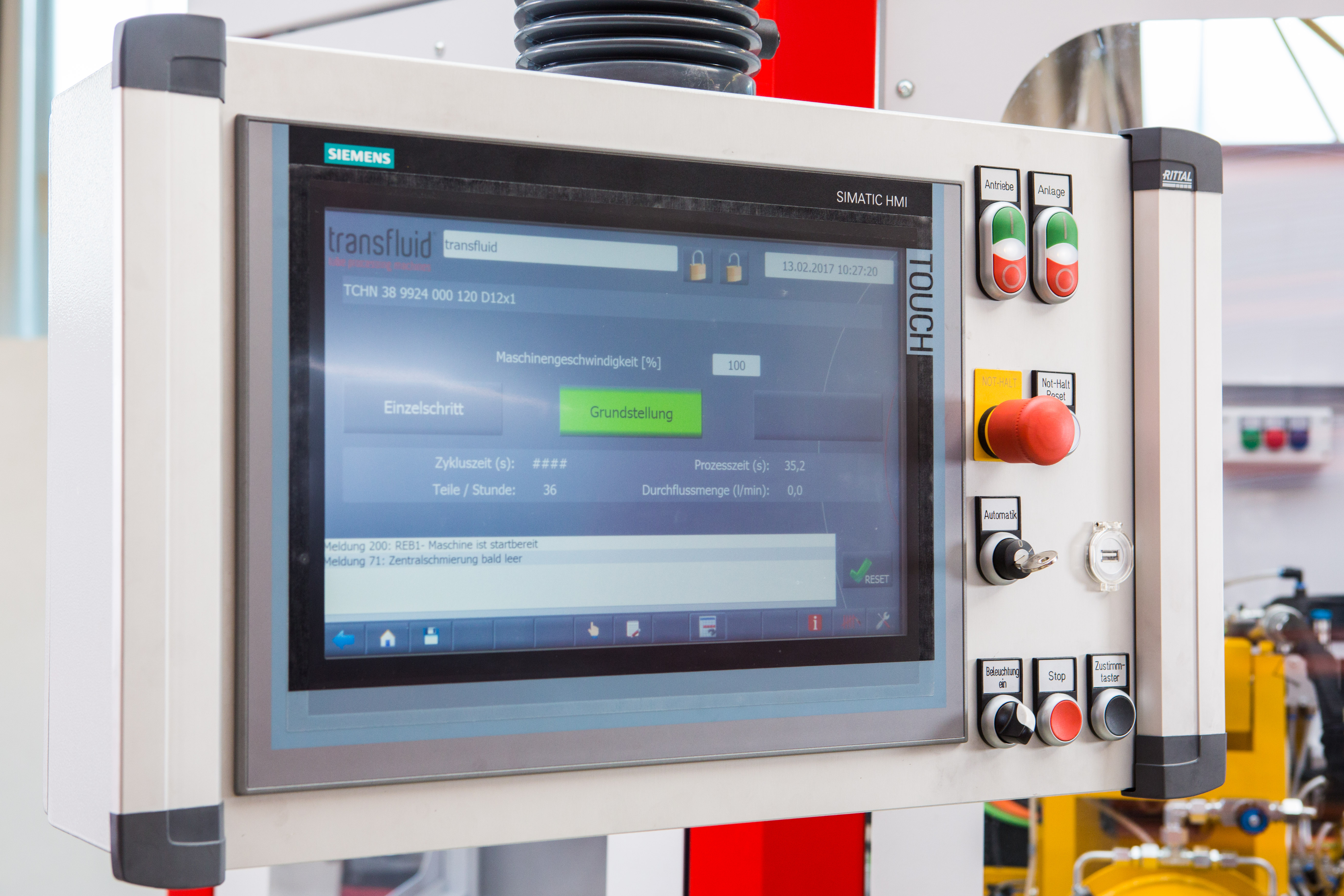

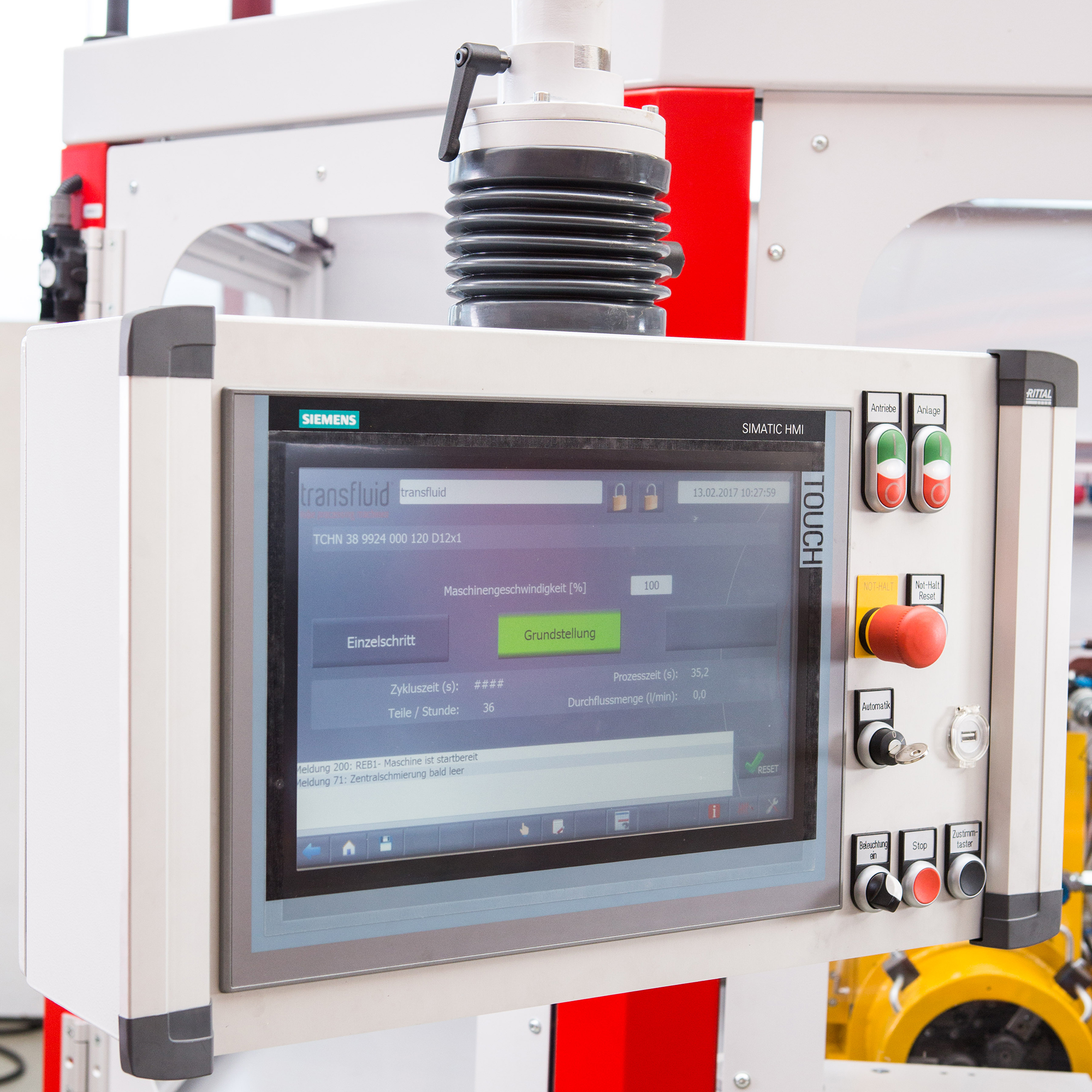

SIMPLE CONTROL VIA TOUCH PANEL

All parameters are set centrally in the machine control, controlled positioning of the forming axis and the stop position.

The combination machines are equipped with a fully electronic pre-selection of the flanging geometry. The stop position as well as all travel paths and processing operations are servo-electrically controlled and can be called up via a touch panel.

The material used and the shaping to be carried out are decisive for the exact processing time. The machine carries out the processing automatically if it is possible to call up the tube size with the necessary process parameters. In some cases, the clamping lengths for processing are 1 to 1.5 times the tube diameter.
