transfluid - t bend POWERLINE
Servo-hydraulic CNC mandrel bending machines
Powerful and precise - solid construction and outstanding rigidity- Quick and easy - short set-up times and fast operator training
- Durable - robust design, durable tools, maintenance-optimized
- Economical - excellent price-performance ratio
Explore our machine virtually
Move the slider and click on the info points to obtain further information.

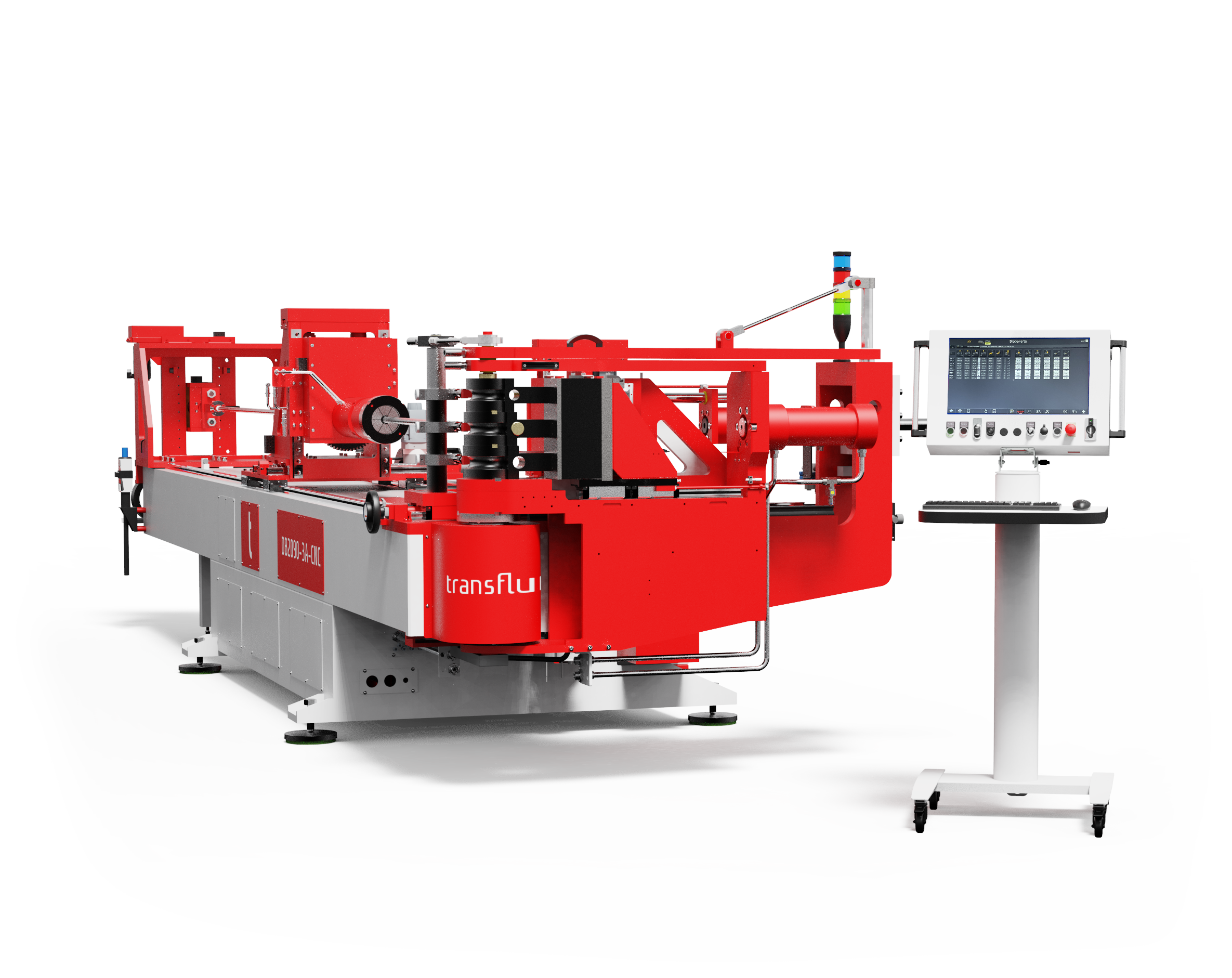

The right machine for your task
Product video
Experience in 3D

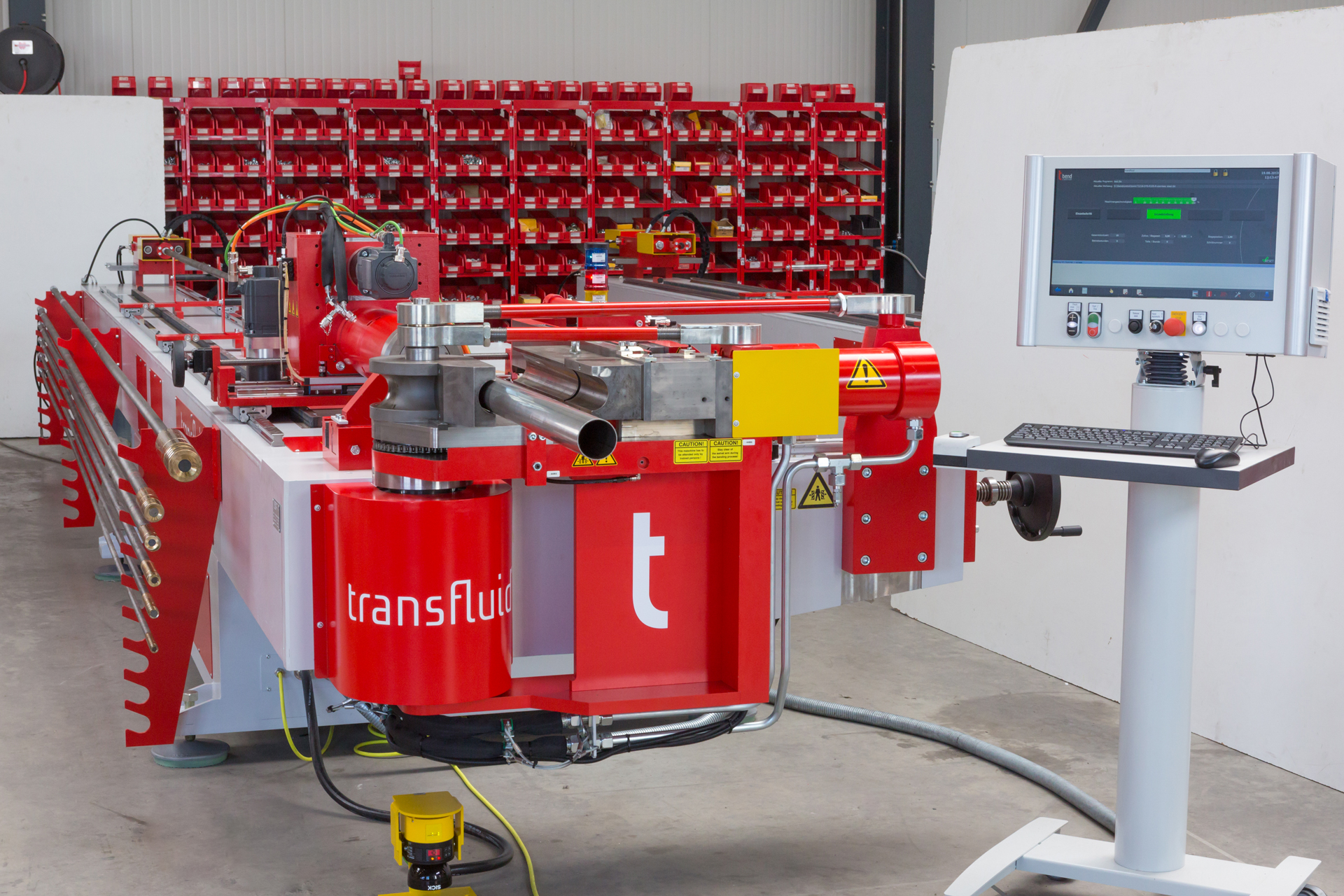

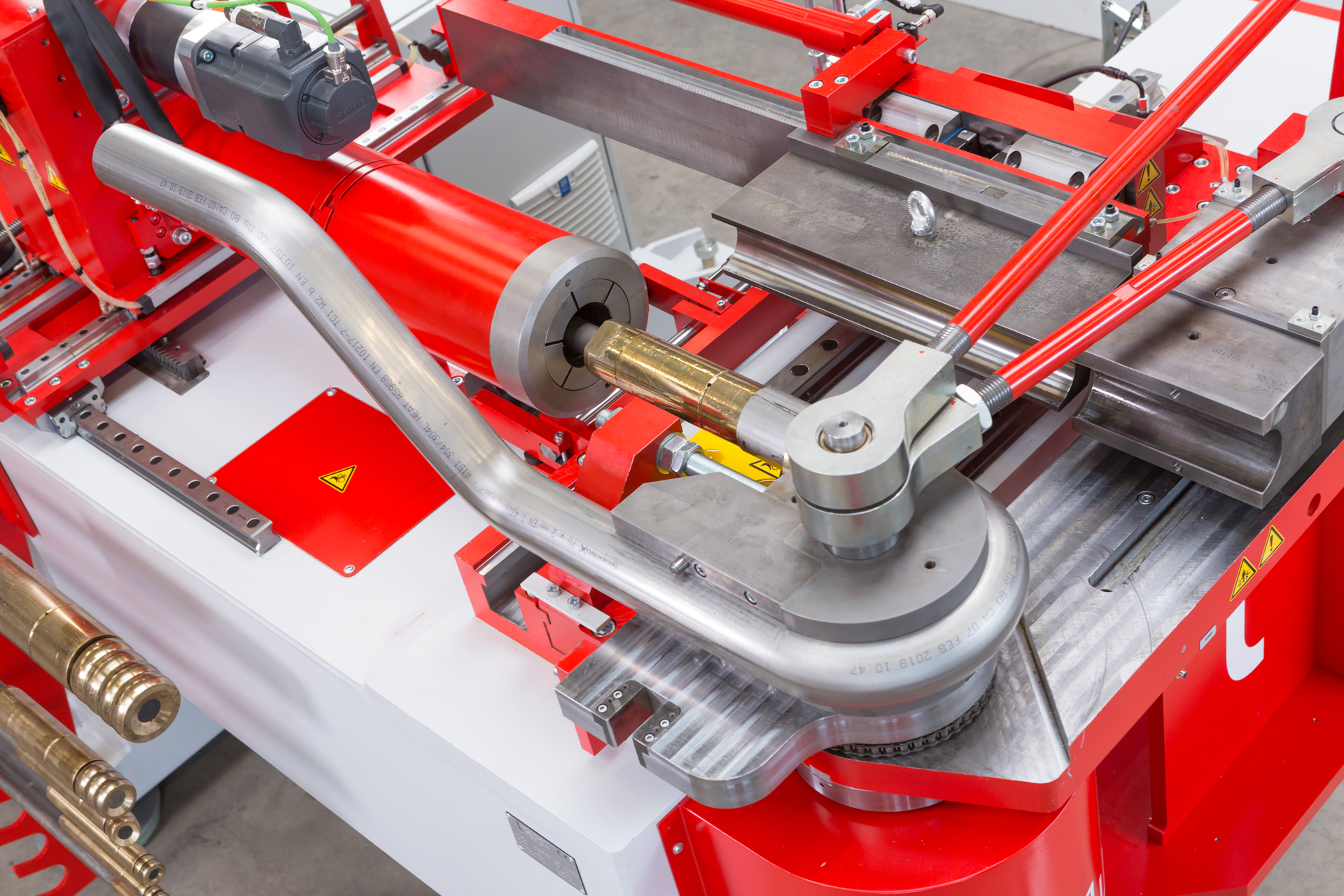

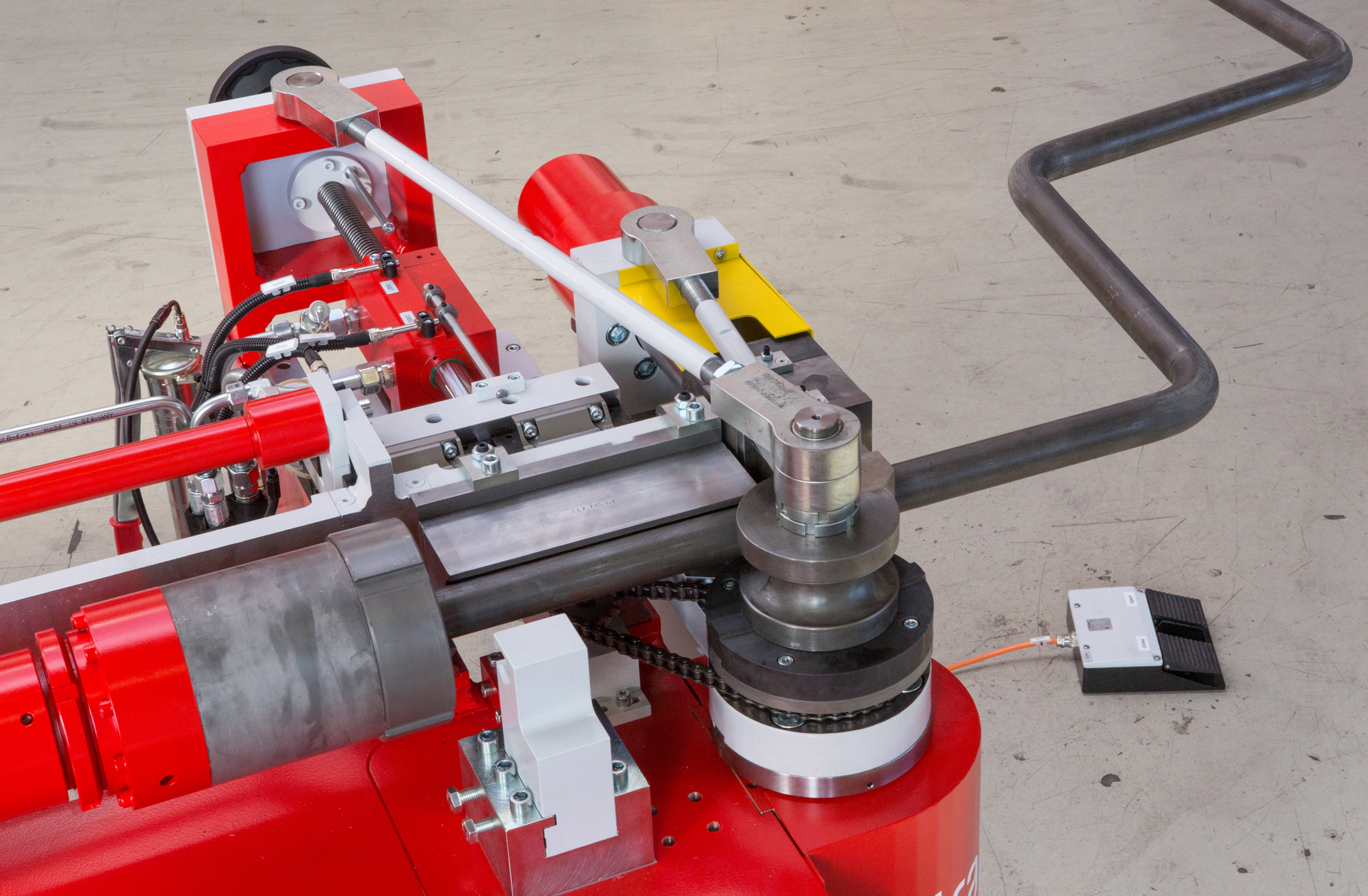

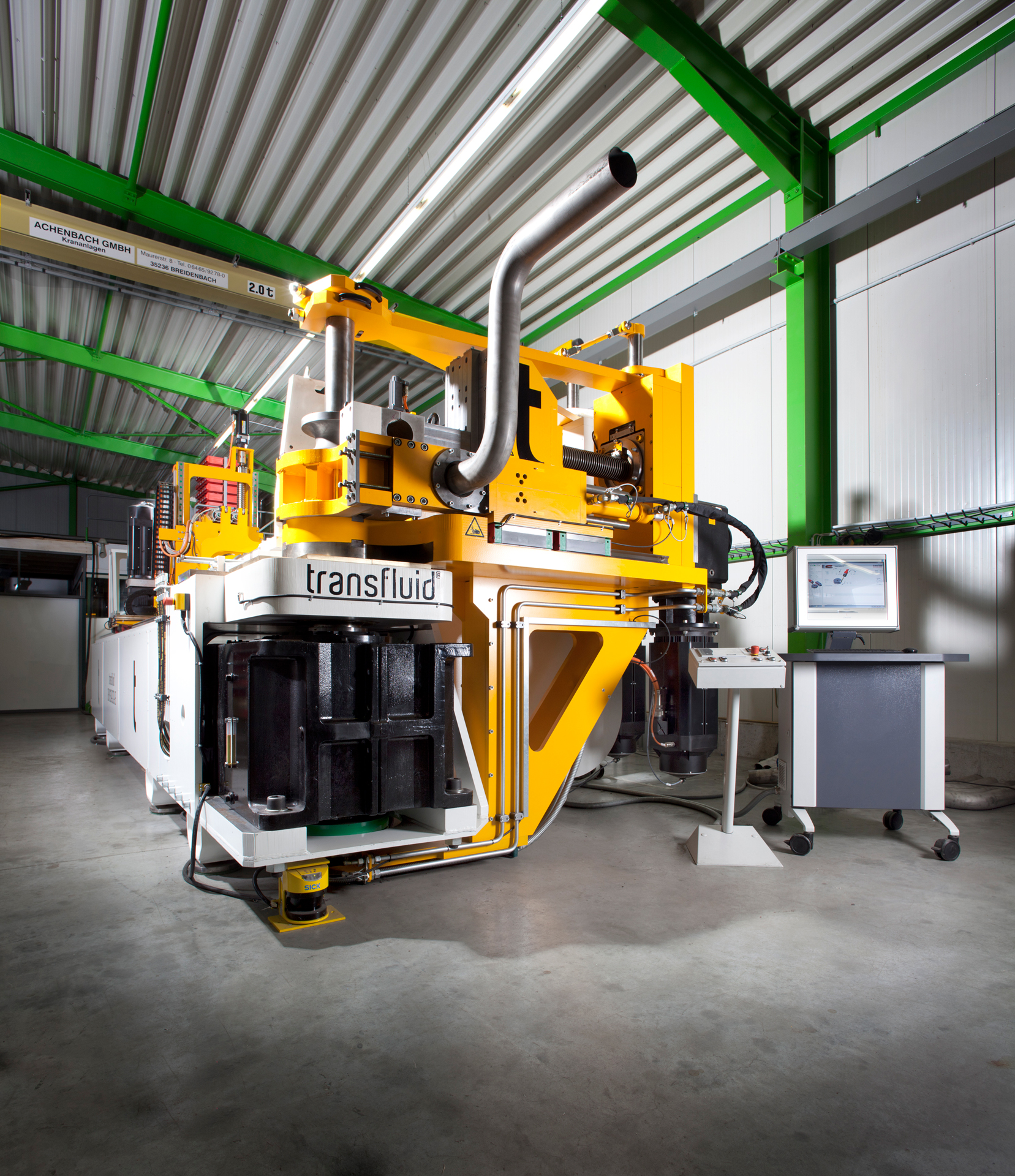

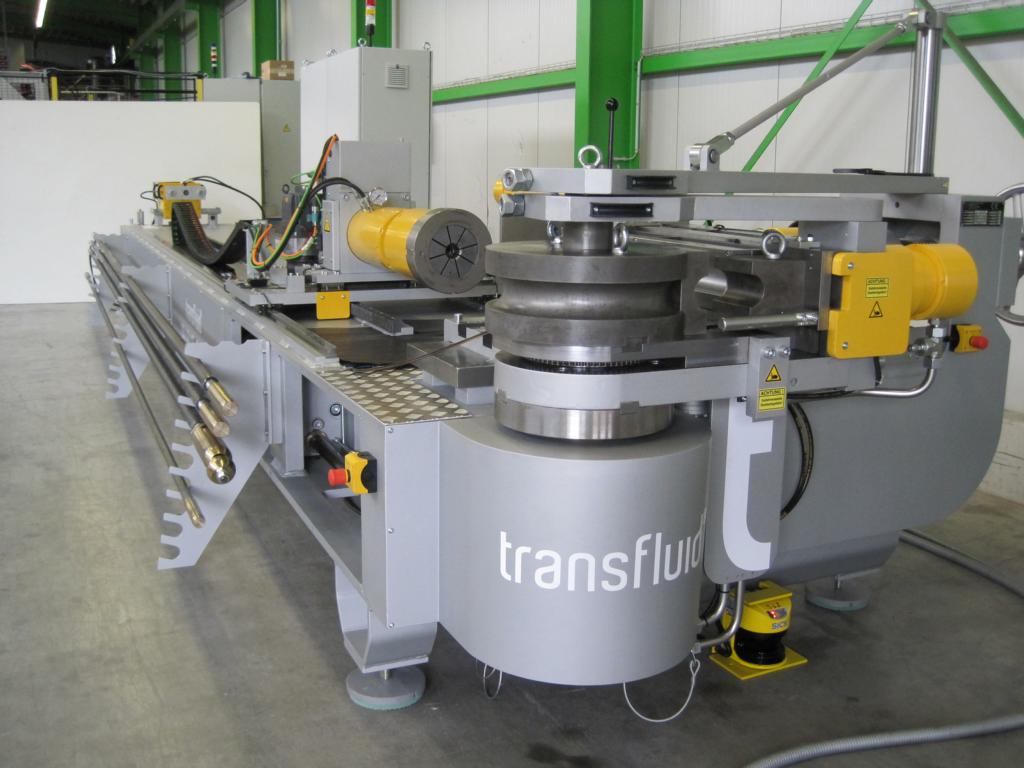

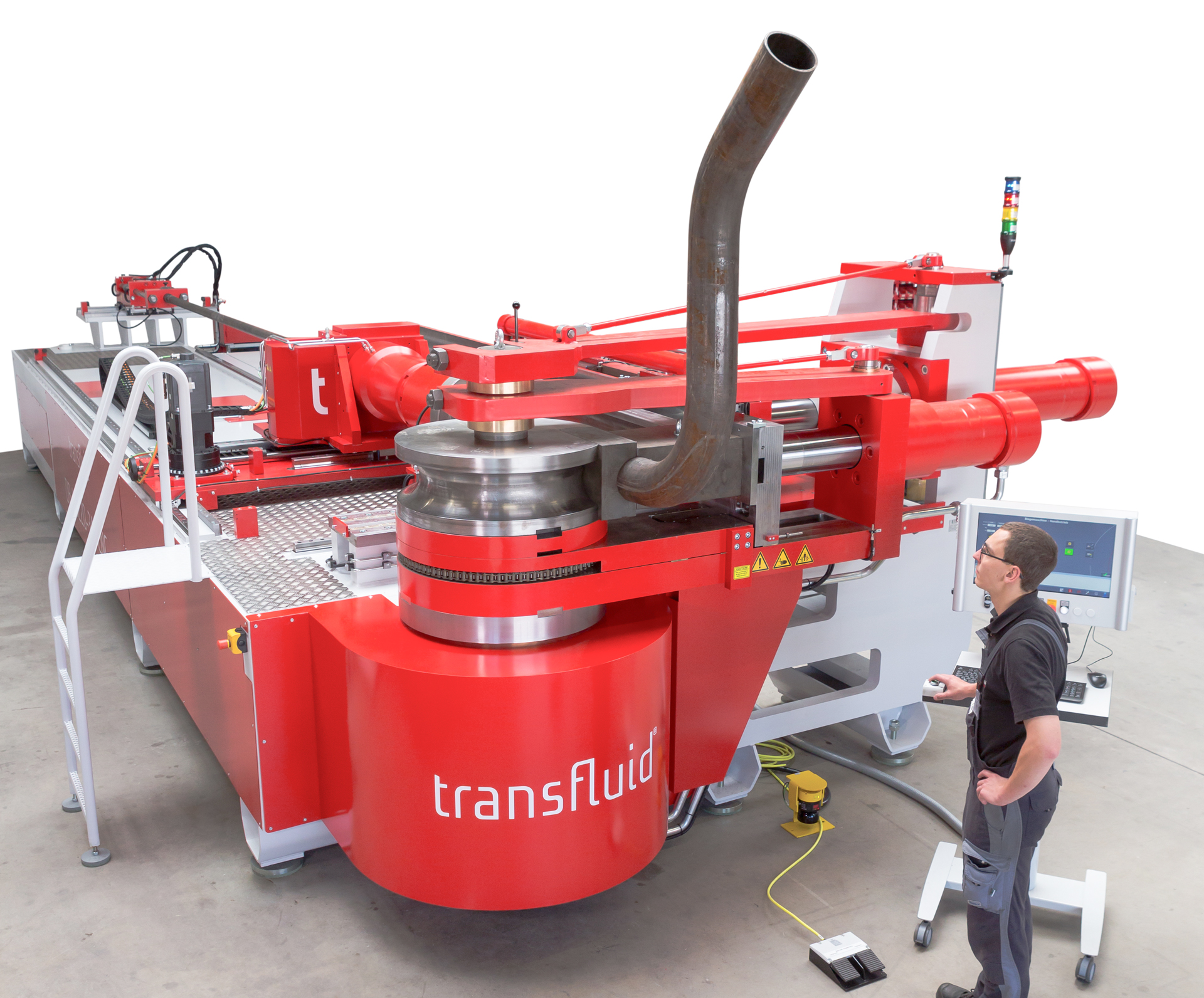

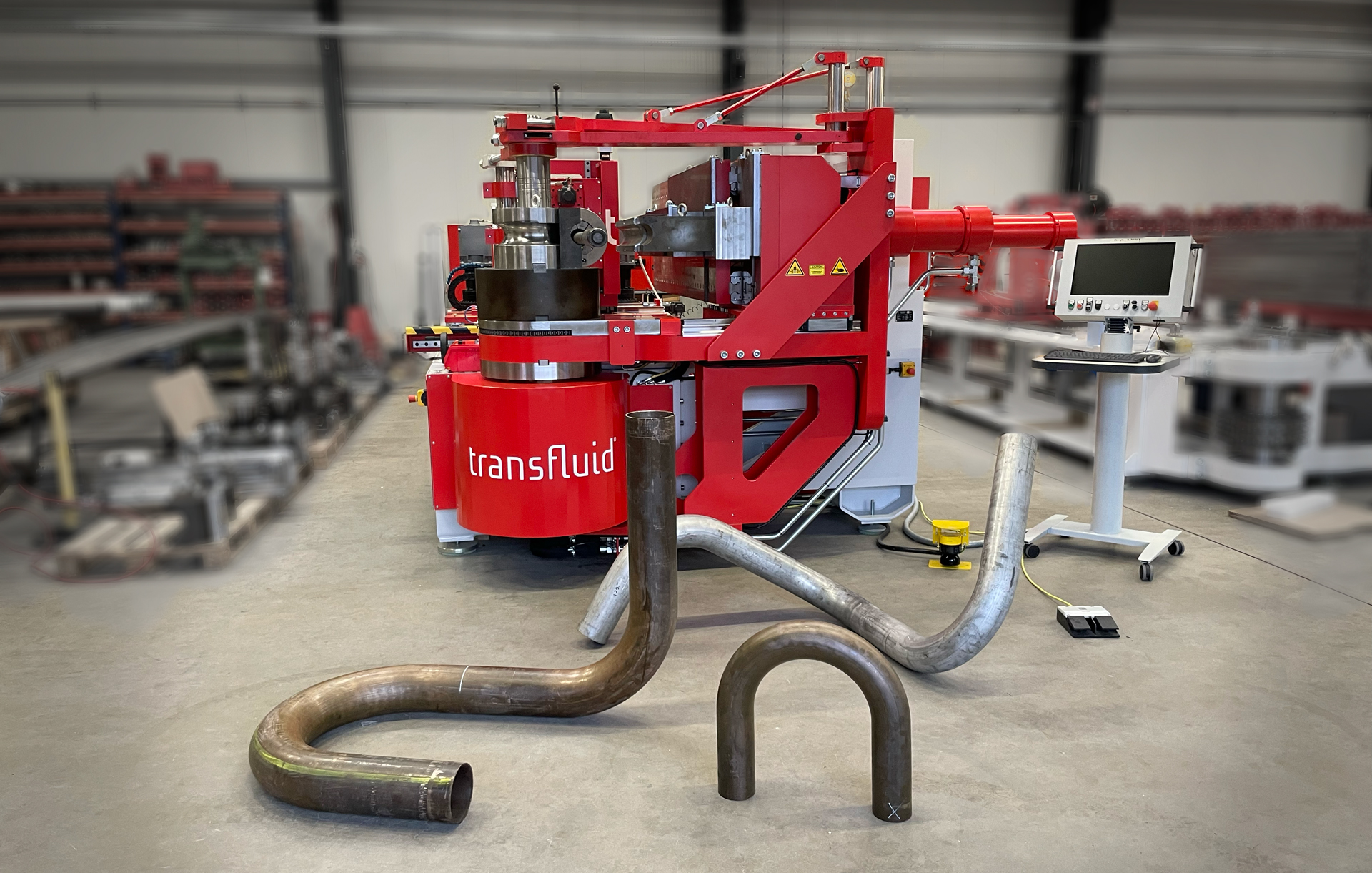

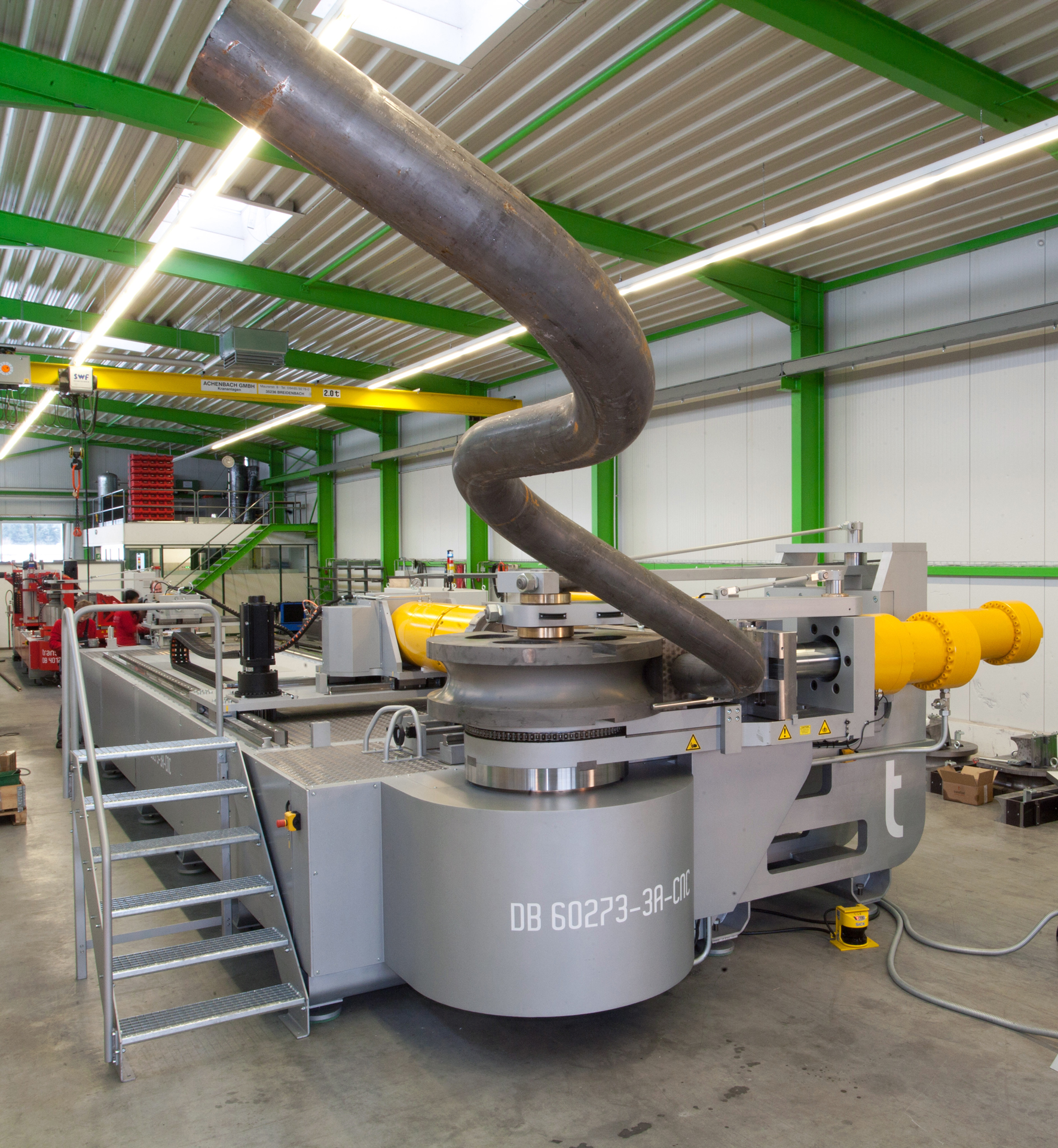

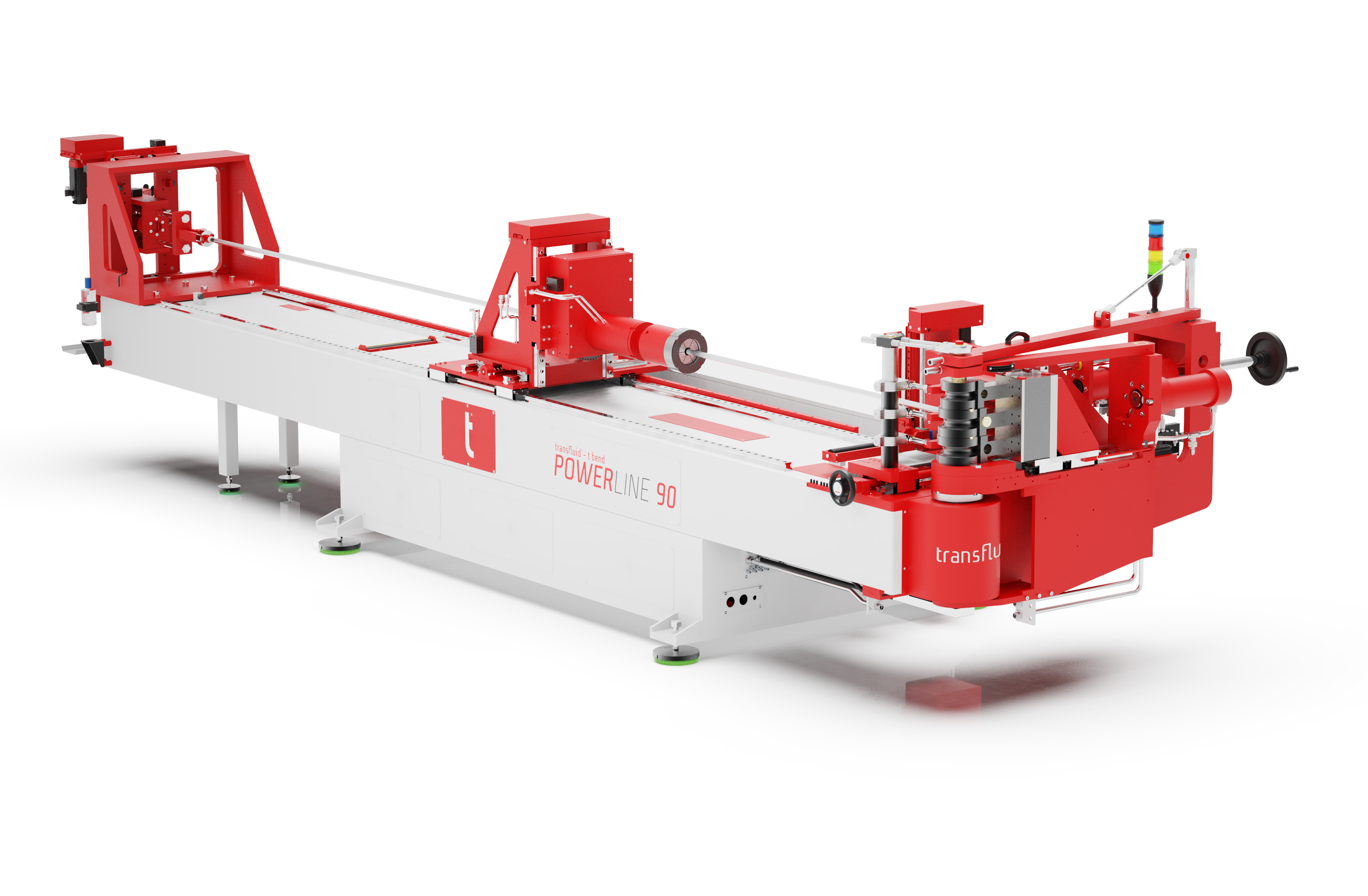

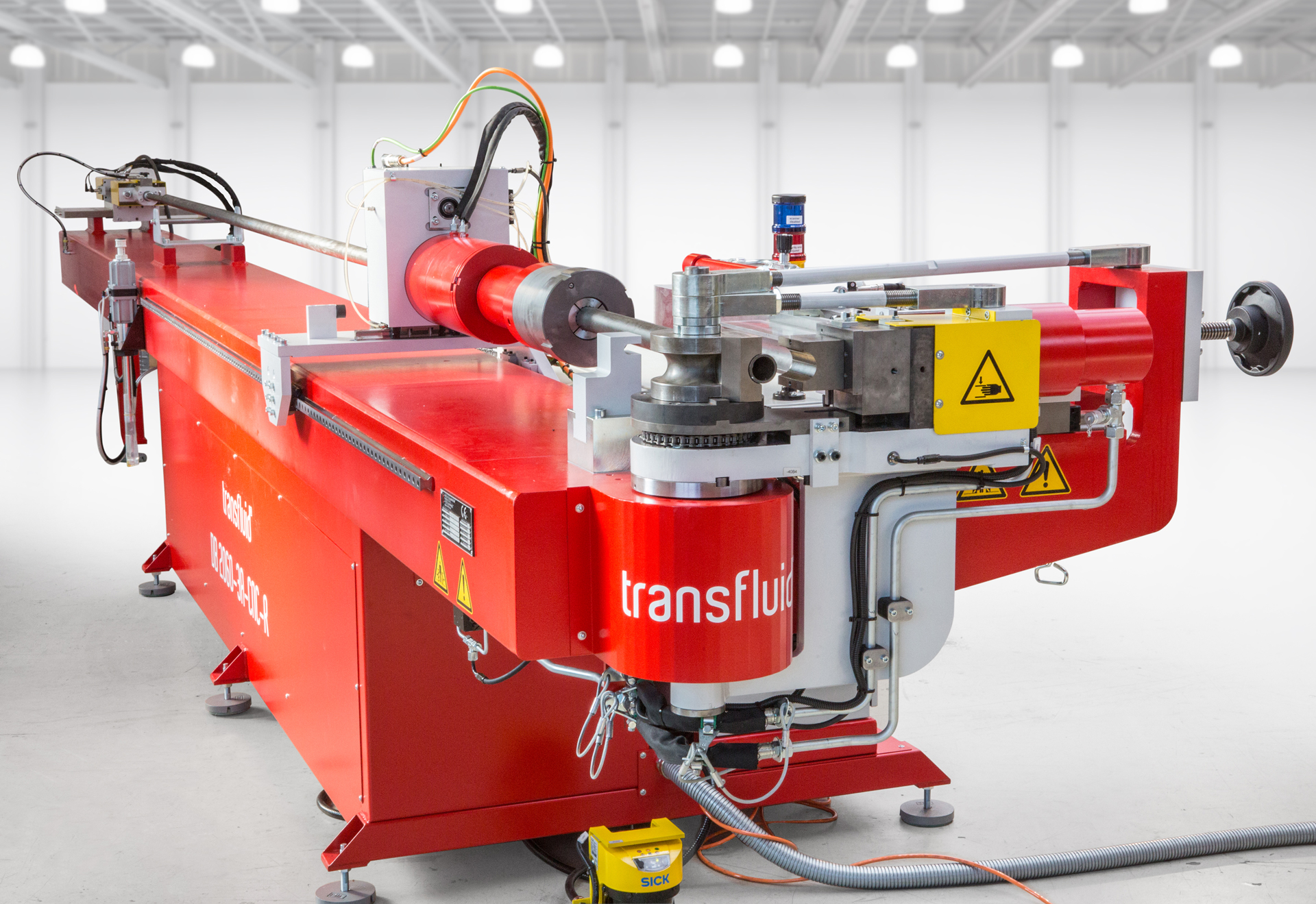

Servo-hydraulic mandrel bending machines with CNC control
| Range | 1/4" - 1 5/8" |
| Max. Max. capacity | 1 5/8" x .157" (mild steel) 1 5/8" x .120" (stainless steel) 1" x .1" (square mild steel) |
| Max. Radius | 5" |
| Usable length | 15 ft 20 ft (special) |
| Speed of the bending axis | 75 °/sec. |
| Range | 1/4" - 2 3/8" |
| Max. Capacity | 2 3/8 x 3/16"mm (mild steel) 2 3/8 x 1/8" mm (stainless steel) on request (square mild steel) |
| Max. Radius | 7 1/16" |
| Usable length | 15 ft 20 ft (special) |
| Speed of the bending axis | 35 °/sec. |
| Range | 1/4" - 3 1/2" |
| Max. Capacity | 3 1/2" x .188" (mild steel) 3 1/2" x .120" (stainless steel) on request (square mild steel) |
| Max. Radius | 10.6" |
| Usable length | 15 ft (standard) 20 ft (special) |
| Speed of the bending axis | 21°/sec. |
| Range | 3/4" - 5" |
| Max. Max. capacity | 4 1/2" x .177" (mild steel) 4 1/2" x .125" (stainless steel) on request (square mild steel) |
| Max. Radius | 14.2" |
| Usable length | 20 ft (standard) |
| Speed of the bending axis | 15 °/sec. |
| Range | 1 1/2" - 5.1/2" |
| Max. Capacity | 5 1/2" x .236" (mild steel) 5 1/2" x .157" (stainless steel) on request (square mild steel) |
| Max. Radius | 16.5" |
| Usable length | 20 ft (standard) |
| Speed of the bending axis | 10 °/sec. |
| Range | 1 5/8 - 6 3/4" |
| Max. Capacity | 6 3/4 x 5/16" (mild steel) 6 3/4 x 1/4" (stainless steel) on request (square mild steel) |
| Max. Radius | 20" |
| Usable length | 20 ft (standard) |
| Speed of the bending axis | 7 °/sec. |
| Range | 1 1/2" - 6 5/8" |
| Max. Max. capacity | 6 5/8" x .315" (mild steel) 6 5/8" x .236" (stainless steel) on request (square mild steel) |
| Max. Radius | 20" |
| Usable length | 20 ft (standard) |
| Speed of the bending axis | 7 °/sec. |
| Range | 2 3/8" - 10 1/2" |
| Max. Max. capacity | 10 1/2" x .630" (mild steel) 10 1/2" x .551" (stainless steel) on request (square mild steel) |
| Max. Radius | 32.3" |
| Usable length | 20 ft |
| Speed of the bending axis | 3 °/sec. |
| Range | 3 1/8" - 12 3/4" |
| Max. Max. capacity | 12 3/4" x .787" (mild steel) 12 3/4" x .709" (stainless steel) on request (square mild steel) |
| Max. Radius | 38.4" |
| Usable length | 20 ft |
| Speed of the bending axis | 3 °/sec. |
Your advantages at a glance
-

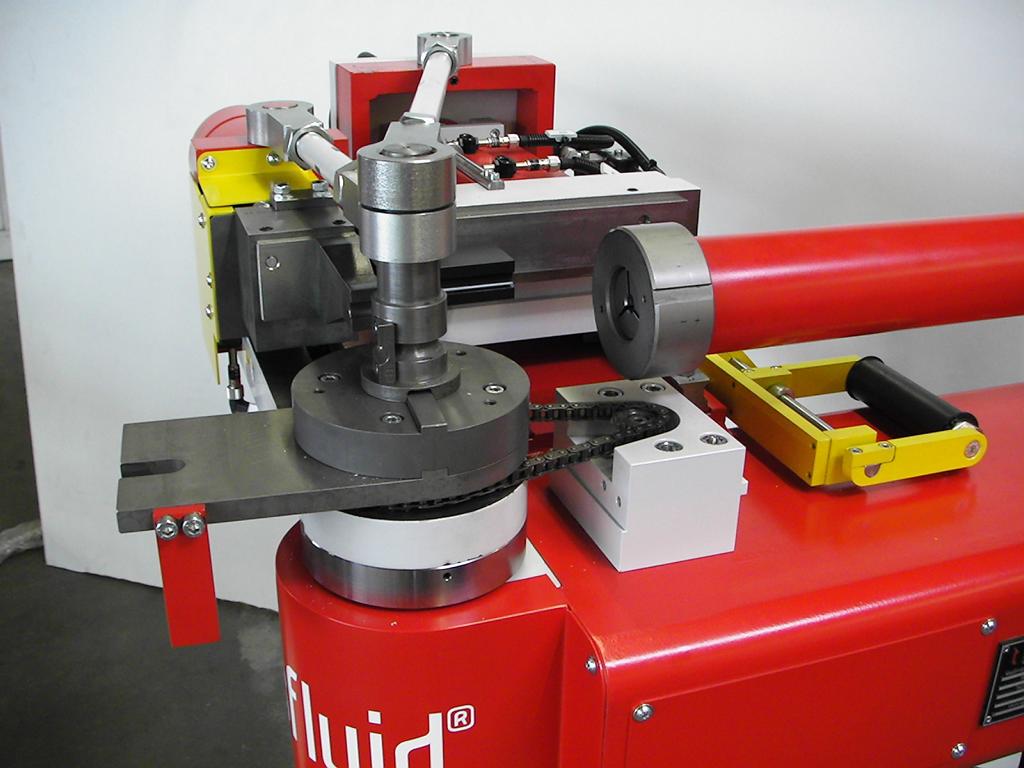

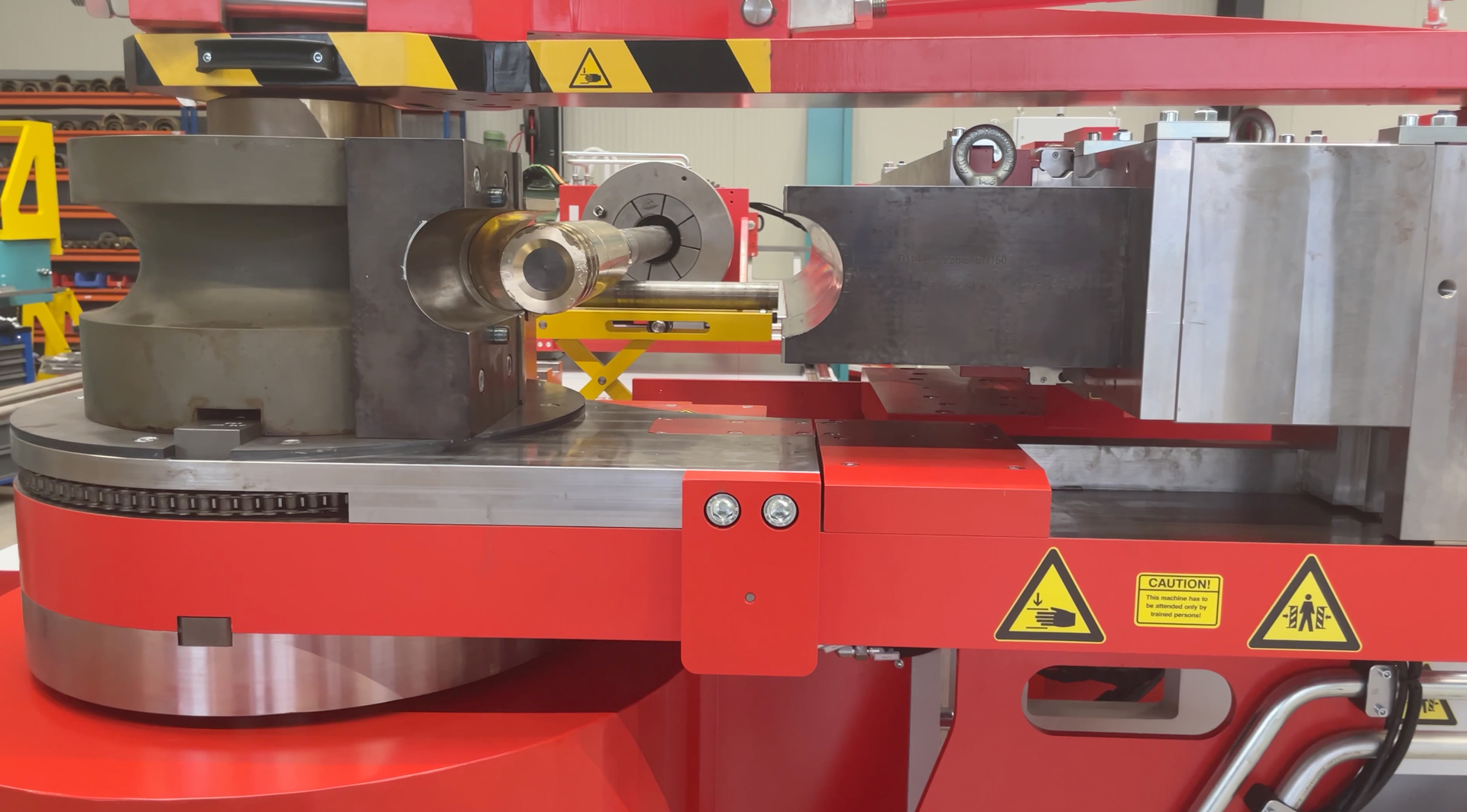

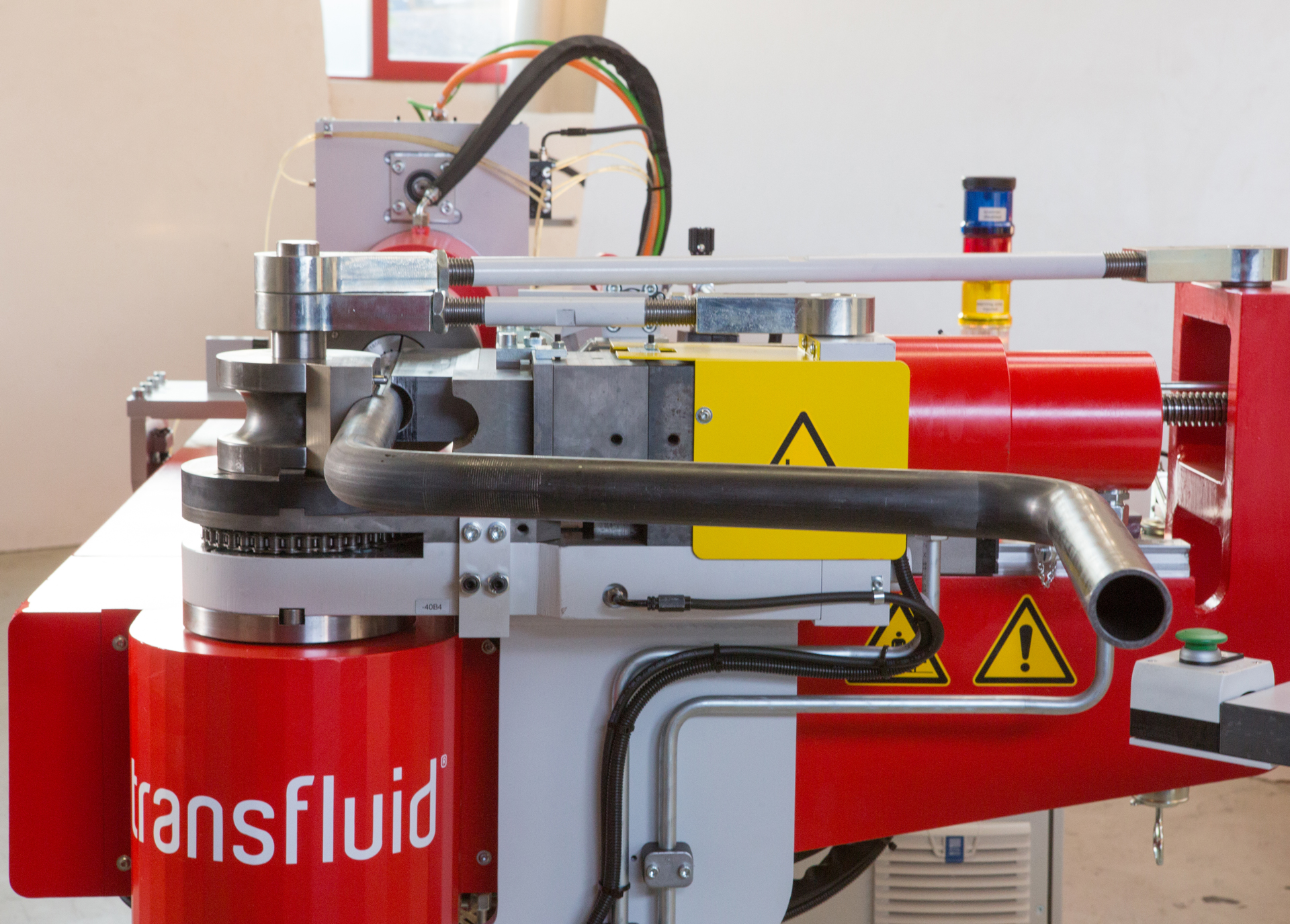

MULTI-STAGE BENDING
Each bending head can be equipped with at least two bending levels, e.g. with different bending radii or shaped clamping pieces to accommodate forming or bends in the case of short clamping lengths.
Bending tools for tubes with already formed tube ends.
-

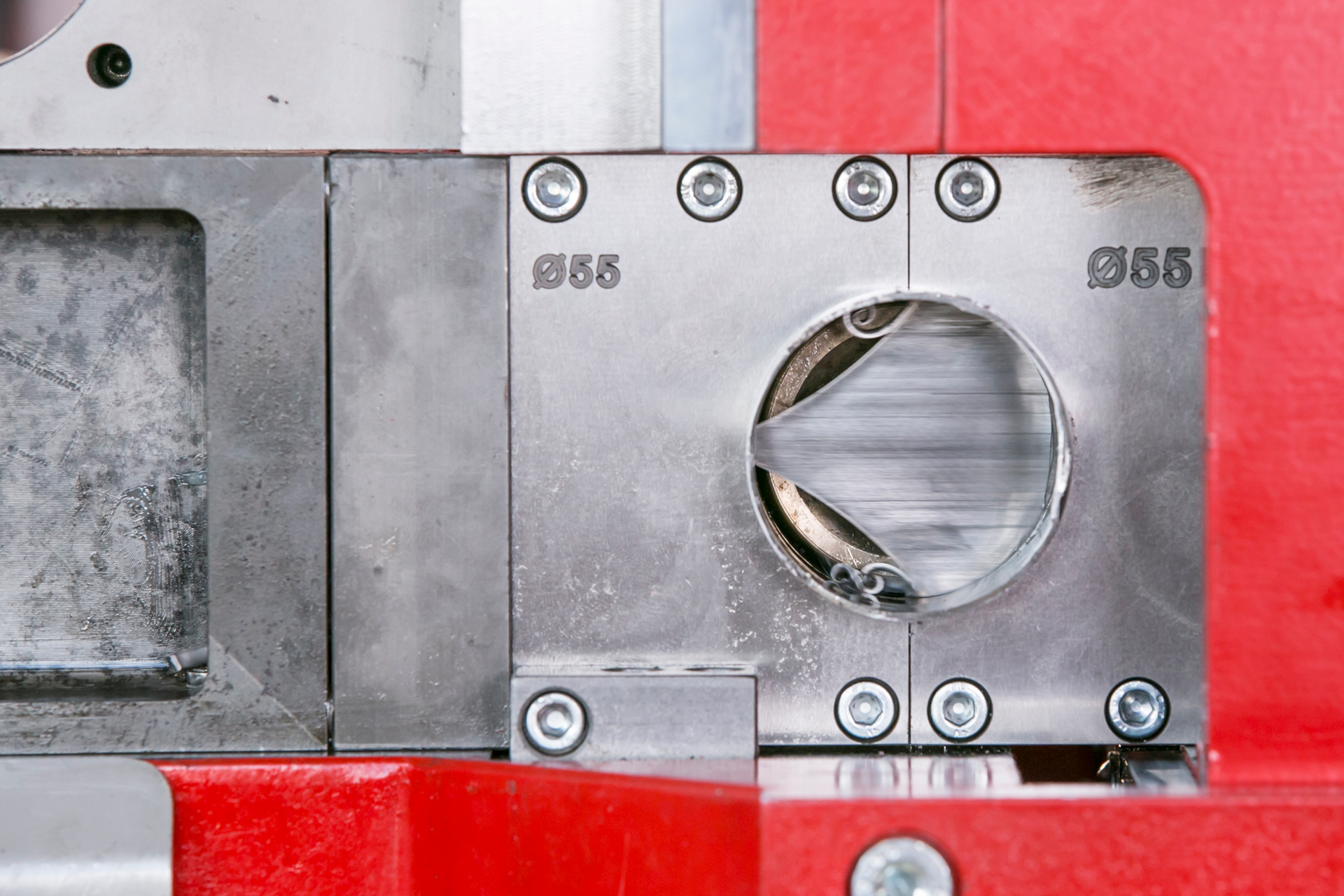

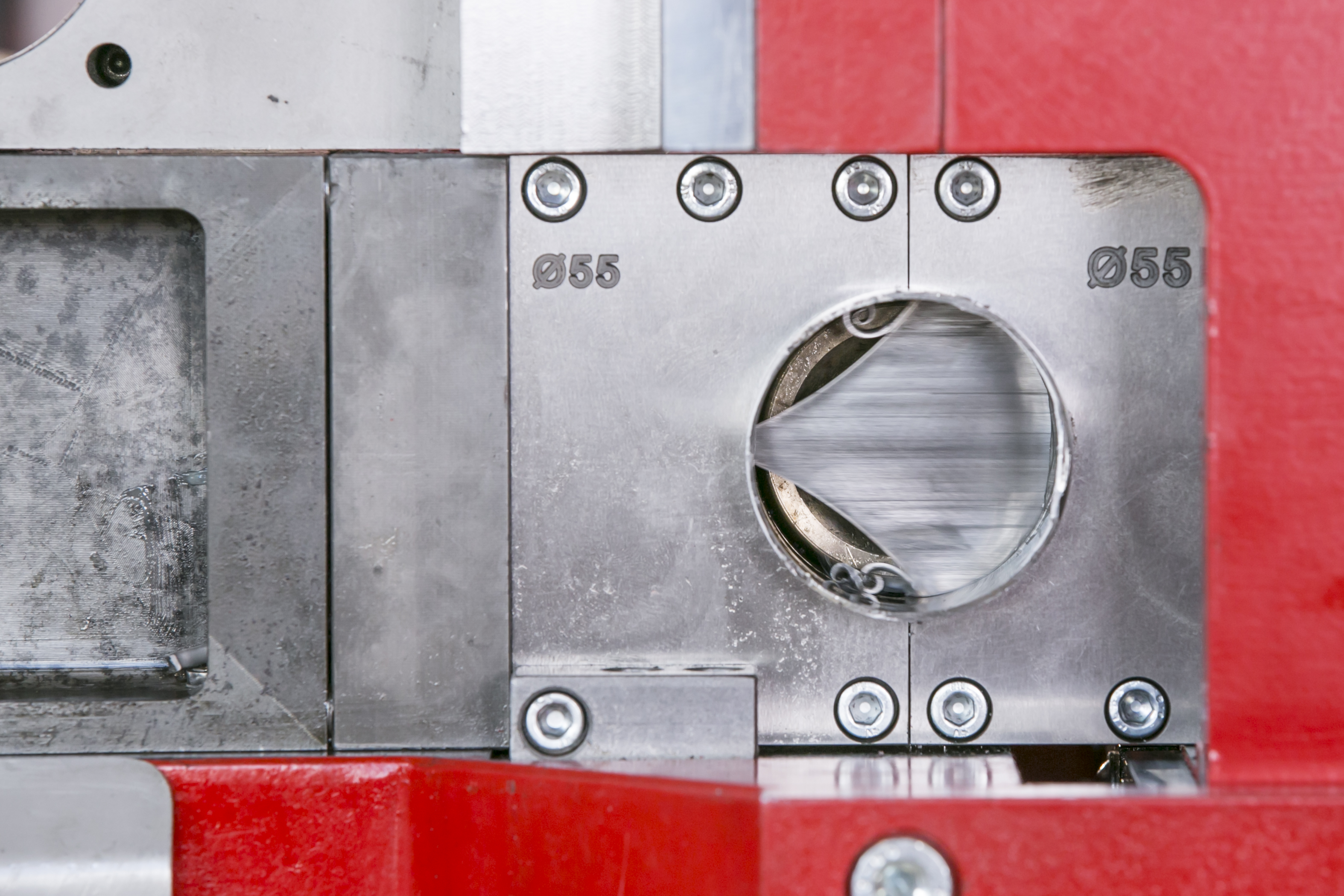

CUTTING DURING THE BENDING PROCESS
The separating cut is made directly after the last bend. No further re-cutting is required.
-

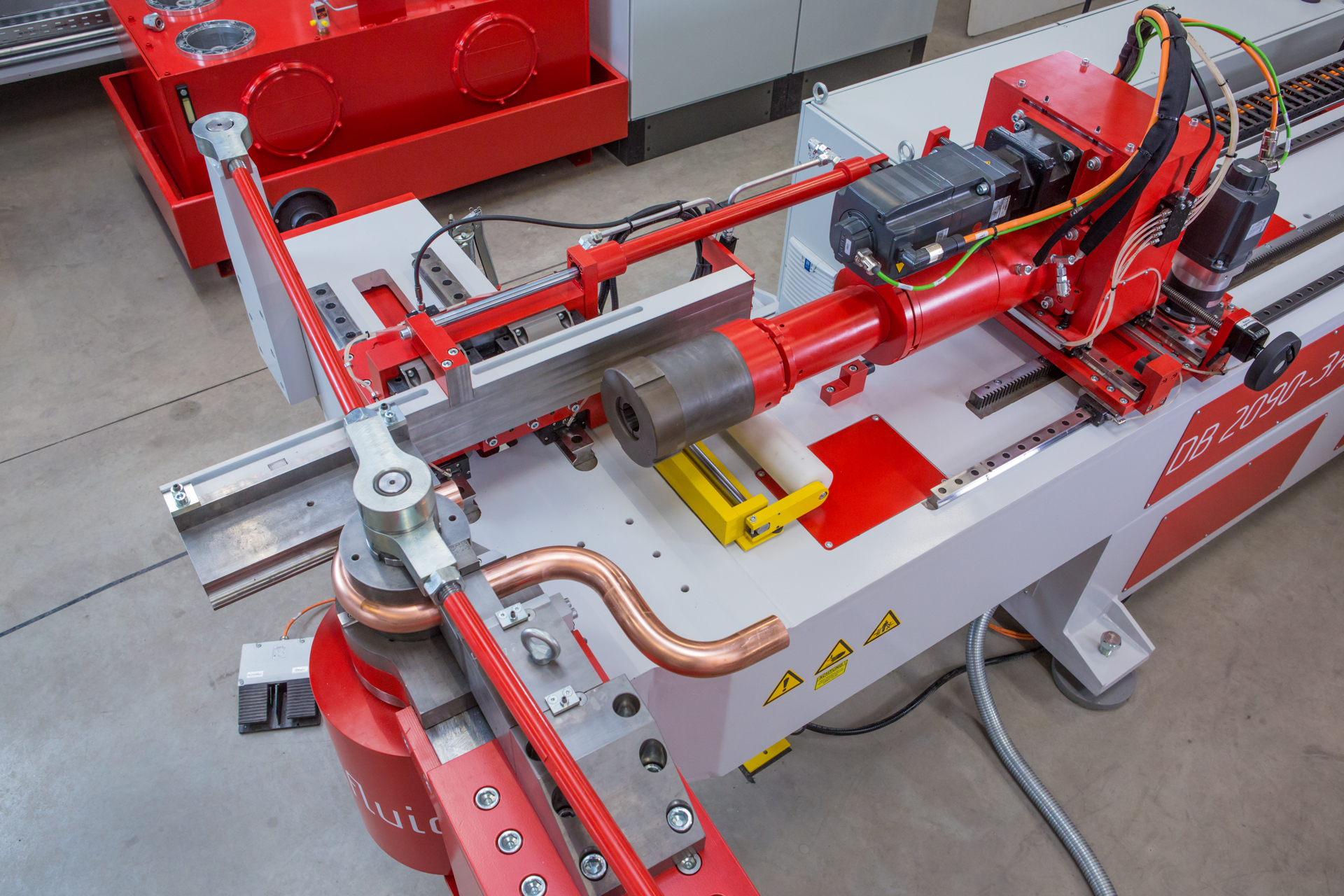

FULL MATERIAL
Adaptation of the bending machine for bending busbars / flat conductors.
-

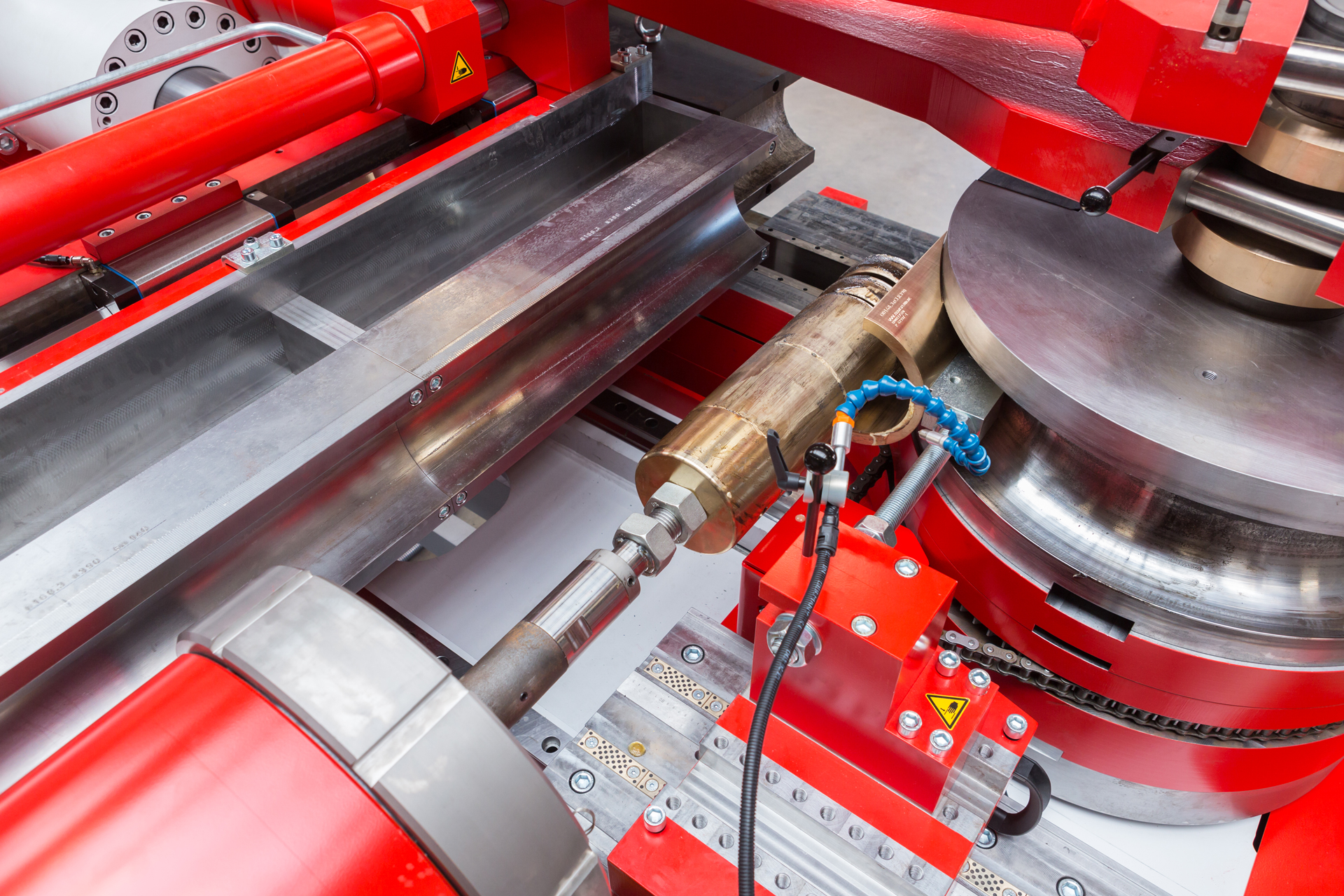

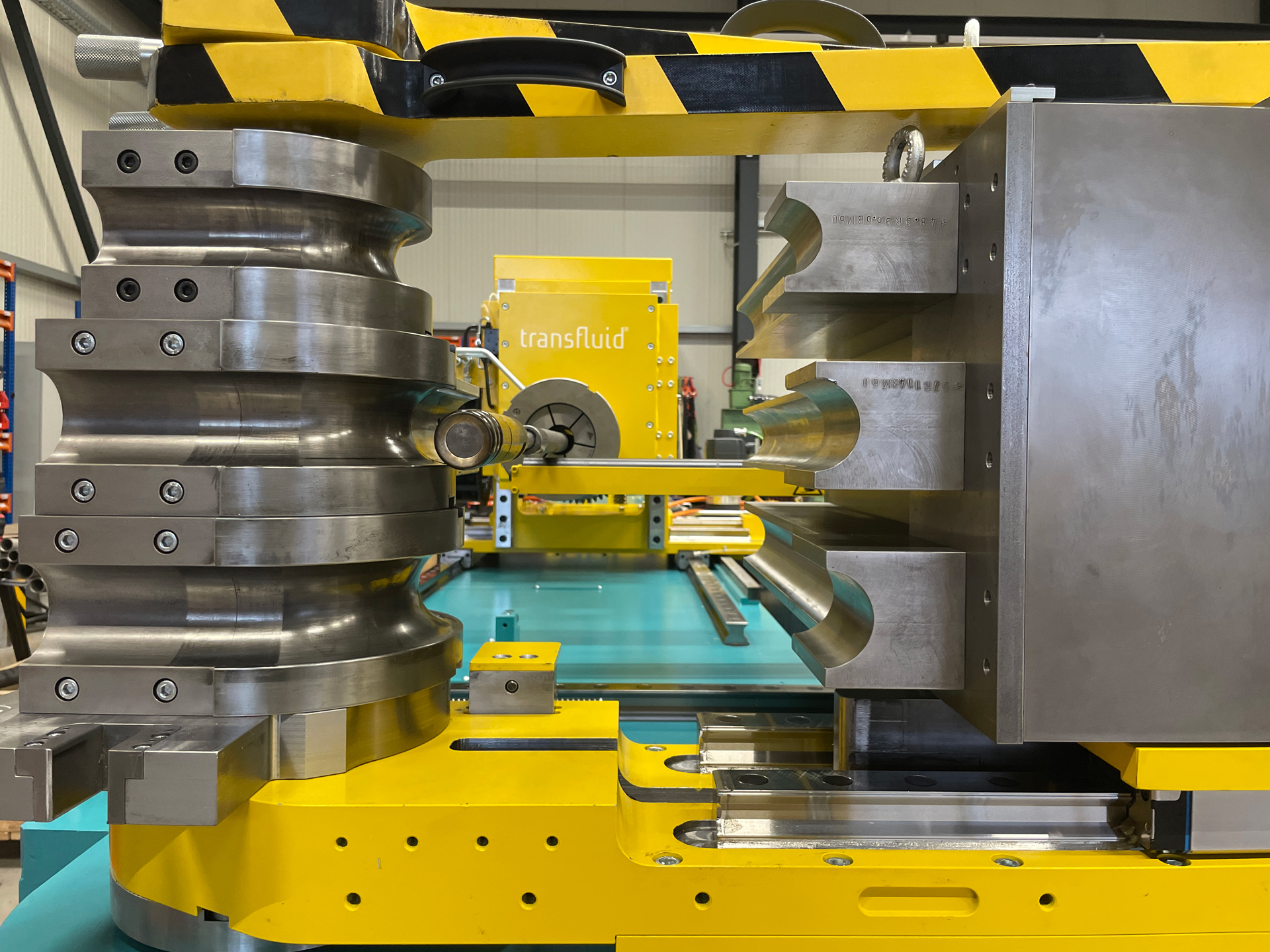

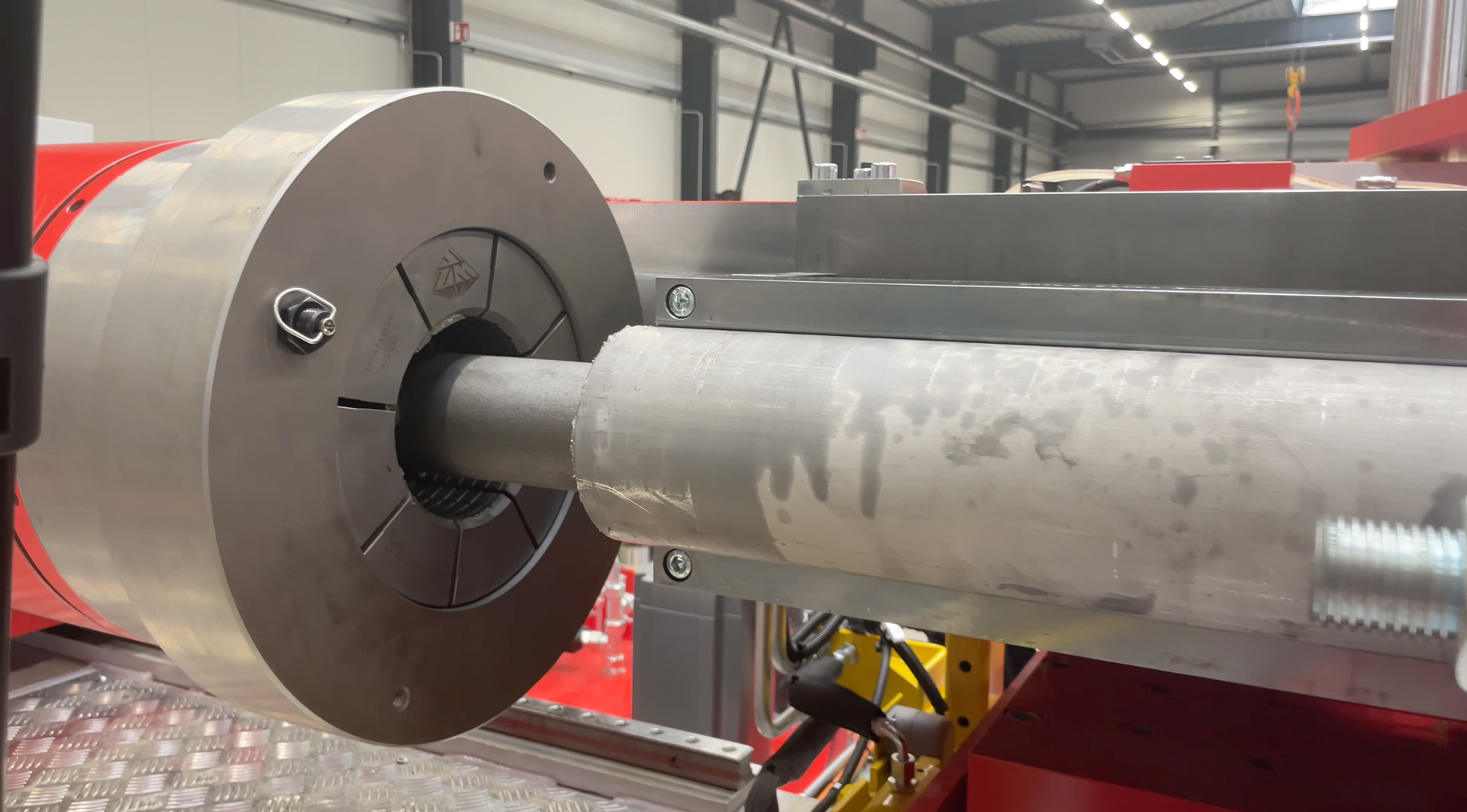

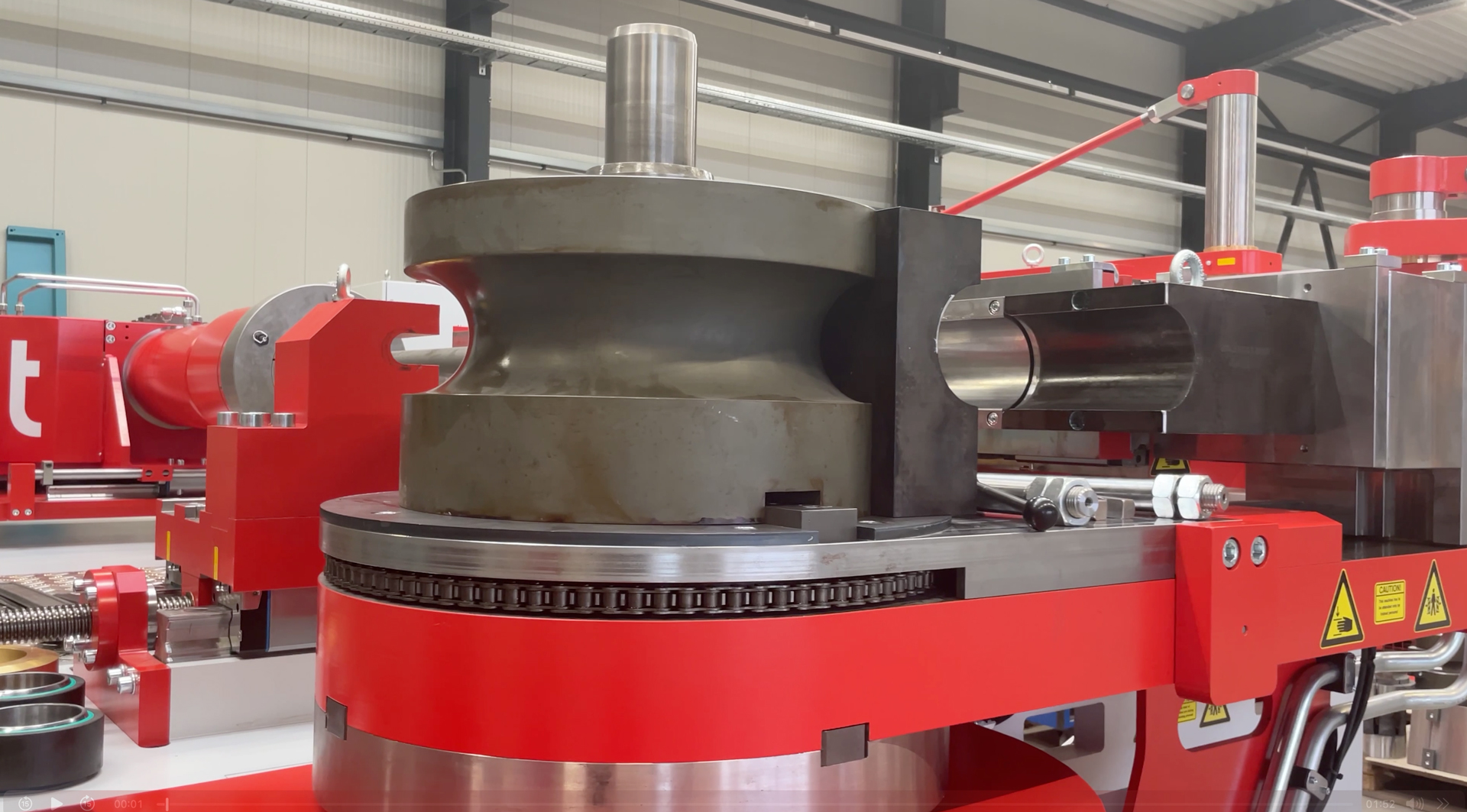

BENDING MANDRELS
Bending mandrels for a wide range of materials and requirements.
-
WIPER DIE
Prevents the formation of creases inside the curve that occur when the material exceeds its elastic limit and settles in the curve.
-

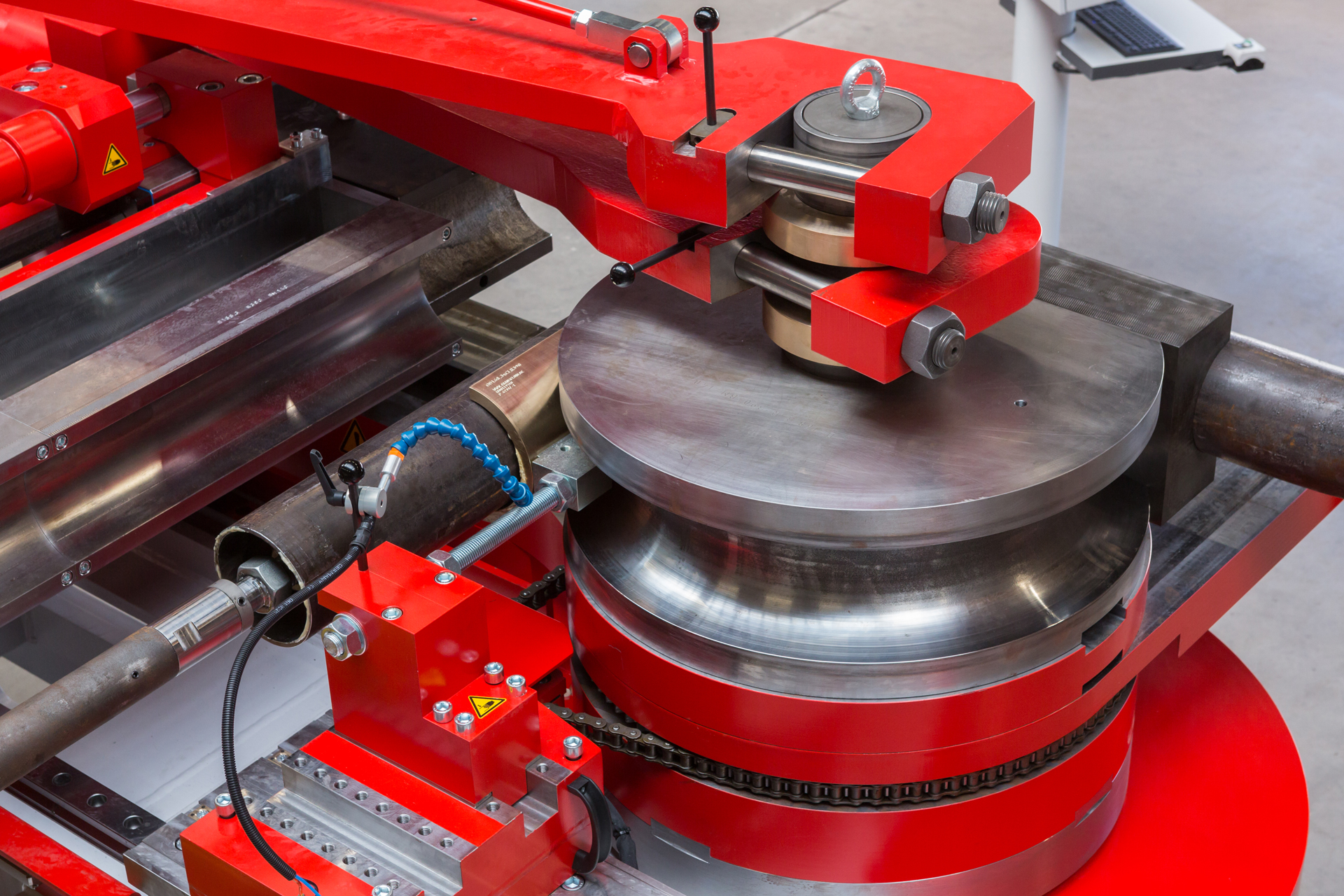

EFFICIENCY AND COST BENEFITS
Short set-up times thanks to swivelling bridges, plug-in tools and optimized clamping technology. The set-up processes are optimized for speed and simplicity from the smallest to the largest machine.
-

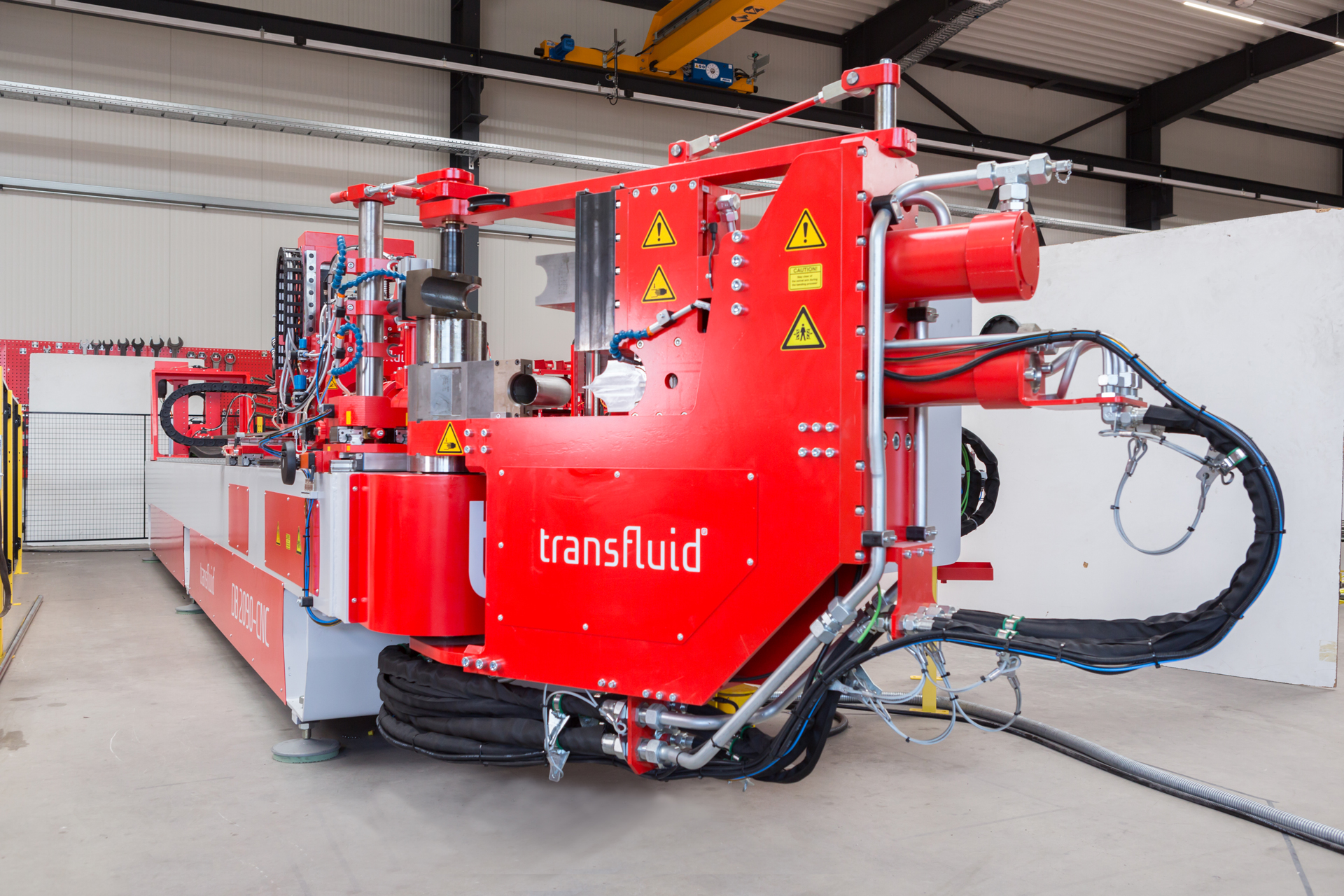

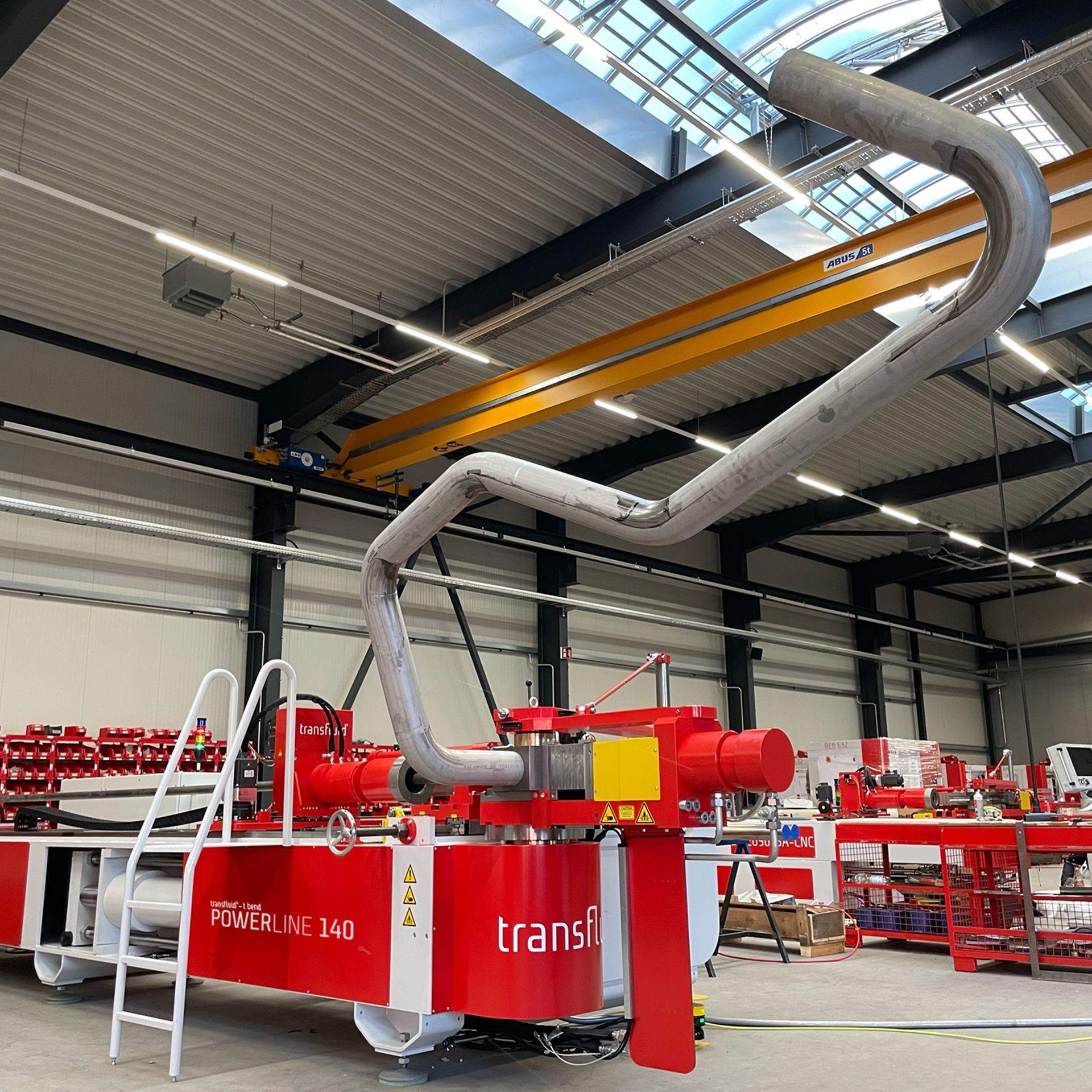

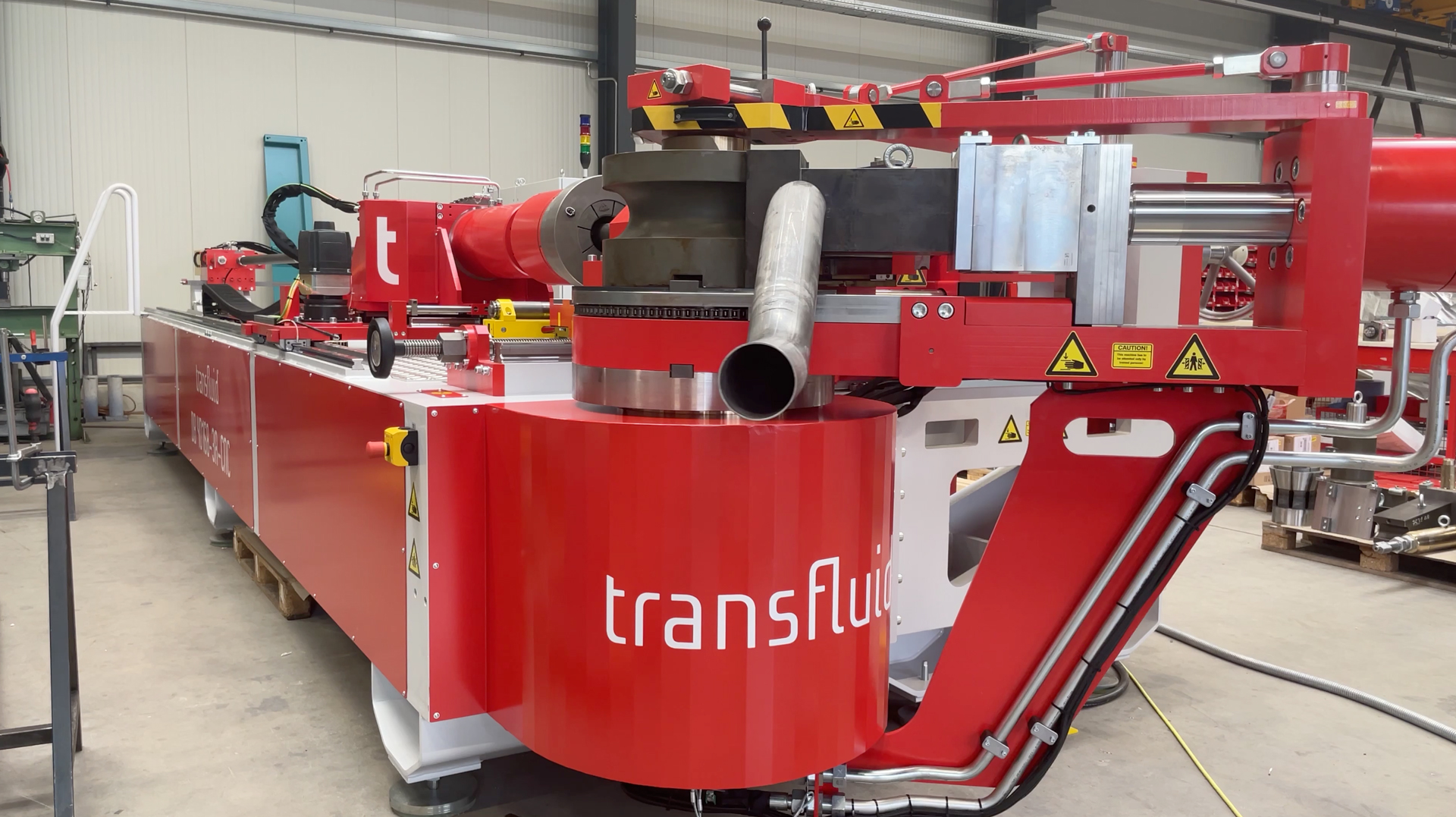

ROBUST CONSTRUCTION AND OPTIMIZED EQUIPMENT
Solid welded machine structure, quick-change tools, bayonet locks, multiple bending levels (multi-stage bending).
Bending mandrels of various materials, forming tools, crease smoothers etc. ensure versatility and durability.

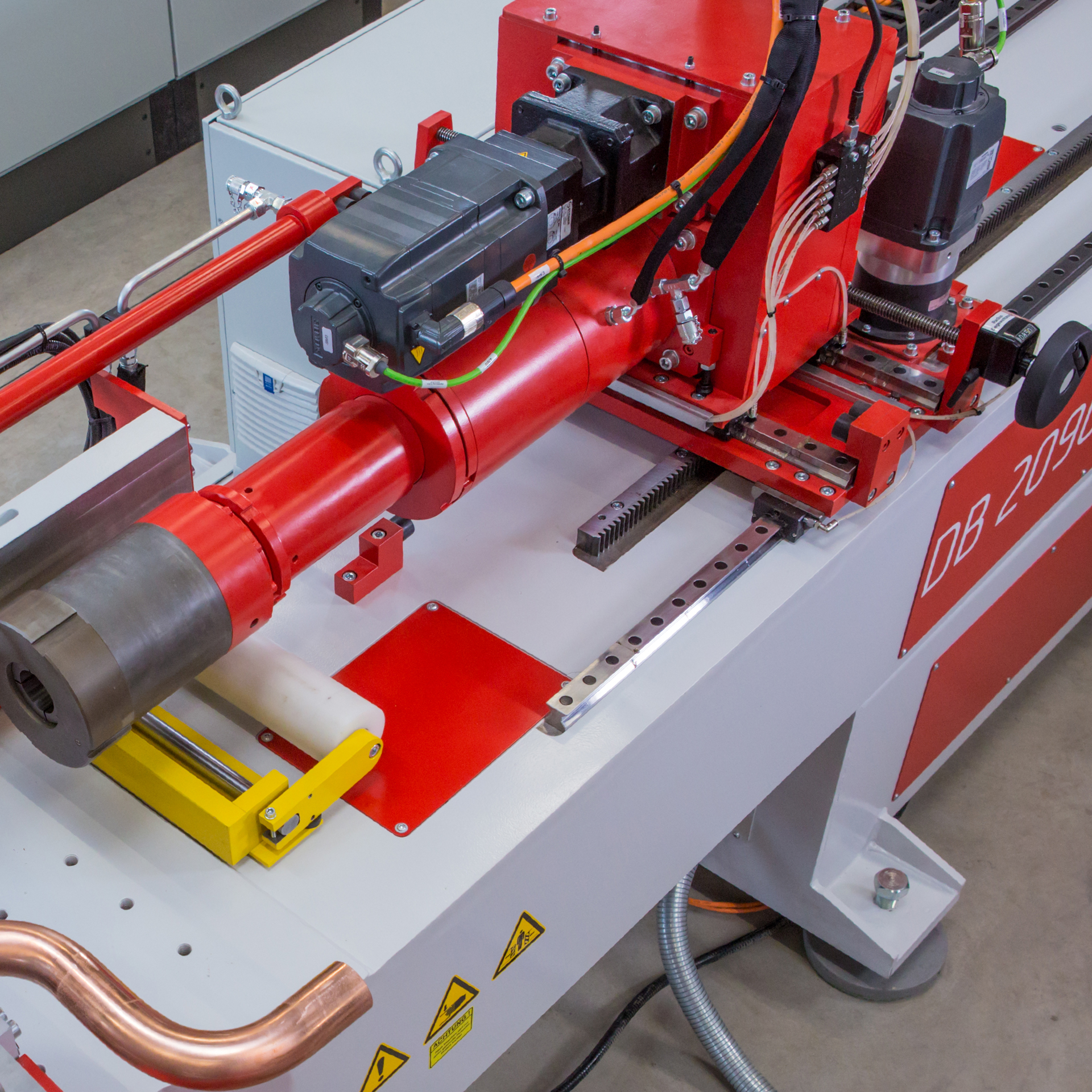

INNOVATIVE SERVO-HYDRAULIC SYSTEM
- Energy savings of up to 70 % by controlling the hydraulic pump via a servomotor.
- The demand-controlled system only runs when hydraulic pressure is required; this reduces the total operating time and increases the service life of all hydraulic components.
- The speed and volume of the pump can be precisely adjusted as required.
- The pressure is programmable and is stored with the program so that the operator does not have to intervene.
- There is no need to heat the oil, so no additional cooling unit is required for the oil.
- The pumps and motors can be specified to a smaller size exactly for the application, which increases efficiency.
CATALOG DOWNLOAD
transfluid offers the complete package for the production of tubes.
Download our new catalog.
