Roll forming machines for support ring and tube end processing

Metallrohr mit geformtem ORFS-Rohrende nach der Bearbeitung auf einer Rohrumformmaschine.

NEW - t form FLARELINE 28 with automatic ORFS ring feeder

INCORRECT ASSEMBLY

IMPOSSIBLE!

ORFS CONNECTIONS MANUFACTURED SEMI-AUTOMATICALLY

t form FLARELINE 28 Rohrumformmaschine mit automatischer Ringzuführung und Beispiel eines geformten ORFS-Rohrendes.

t form FLARELINE ROLLFORMING MACHINES

Create safe, effective and cost-efficient ORFS connections.

With the semi-automatic ORFS ring feeder, transfluid has developed a cost-effective solution for the safe and effective production of small, medium and even large batch sizes. Feeding via a magazine with a poka-yoke system eliminates incorrect assembly, ensuring consistently high quality. Short cycle times make assembly more economical and the automated solution significantly reduces the workload of the machine operator. Machine instruction and training can be reduced to a minimum.

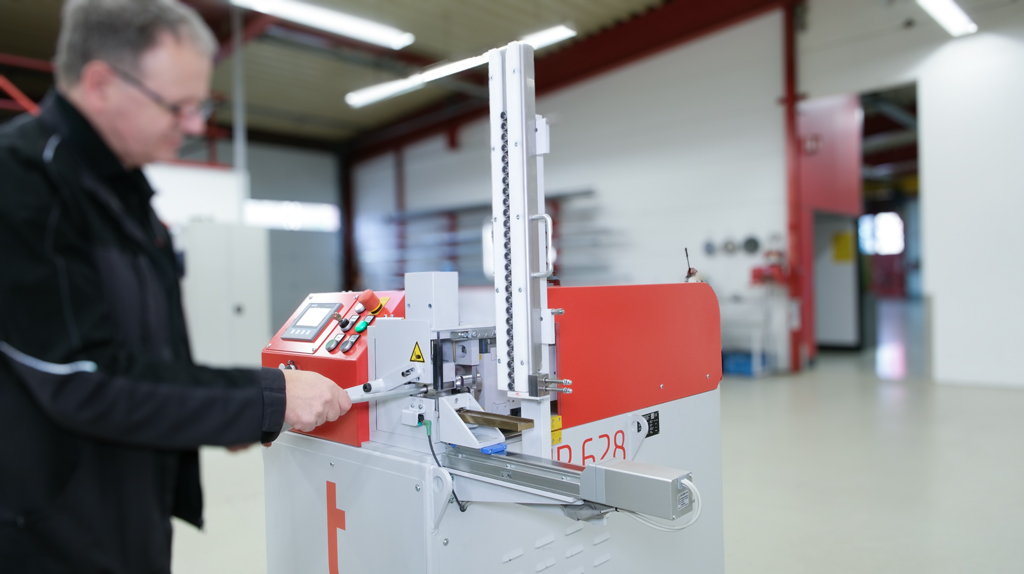

transfluid t form FLARELINE 28 Rohrumformmaschine mit automatischer ORFS-Ringzuführung und zwei Bedienern.

TubeTalk Episode 3

NEW - t form FLARELINE 28 Automatic ORFS-ring feeder.

In our latest TubeTalk video, Yannick and Sharif present our t form FLARELINE 28 with the new optional automatic ORFS ring feeder in detail.

The benefits

AUTOMATIC LOADING

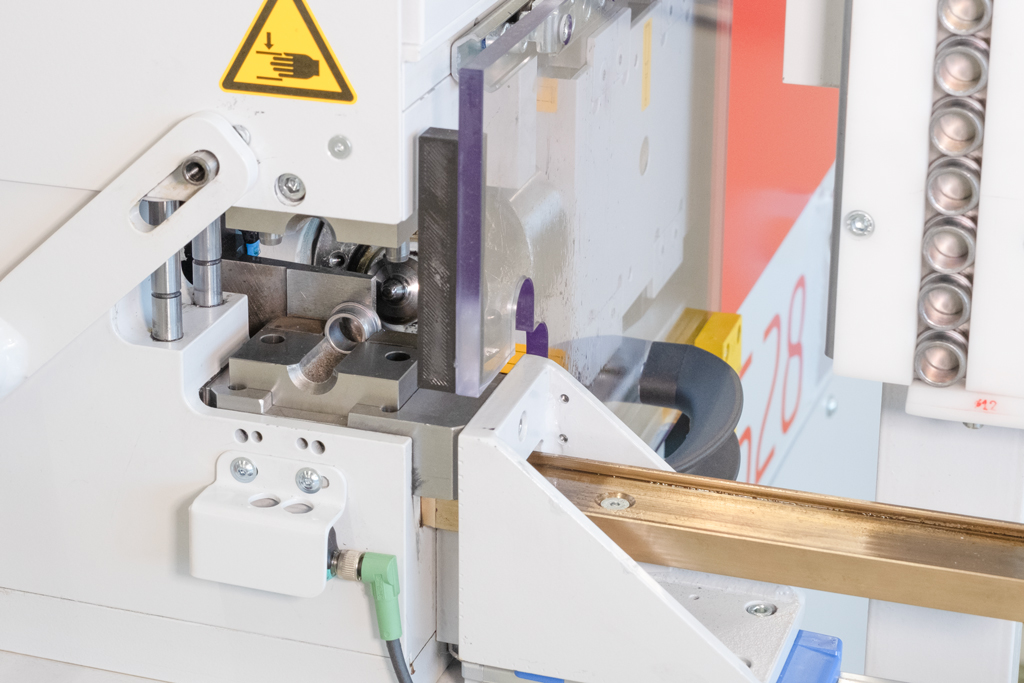

ORFS rings always 100% in the correct position.
COMPACT DESIGN

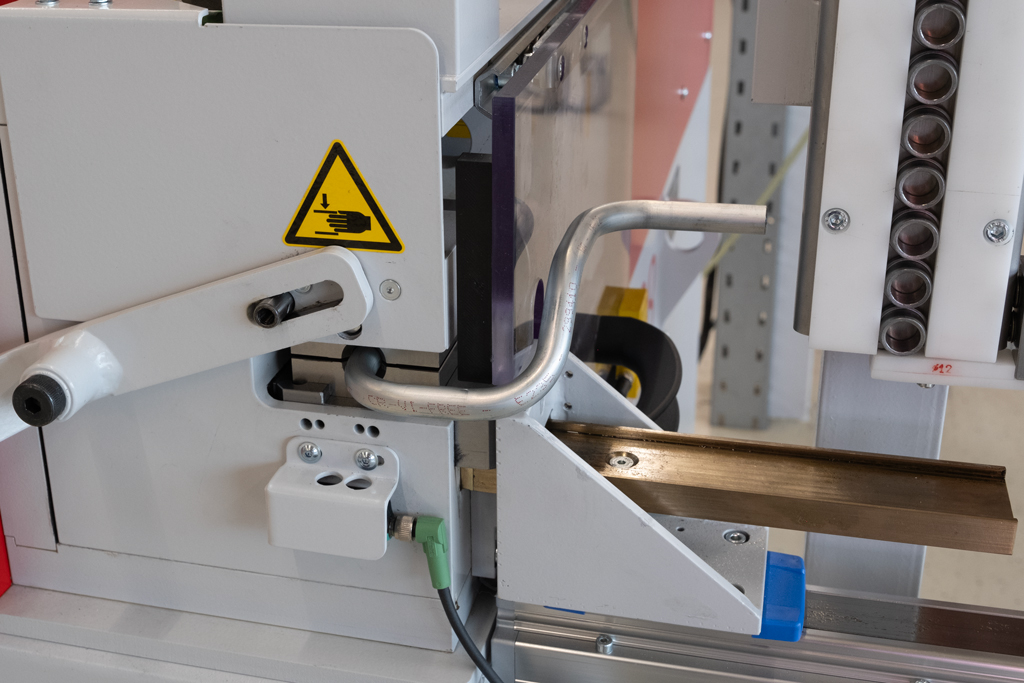

Straight or curved geometries with minimal collision points.
ELECTRIC STOP

Specifies the exact pipe length for forming.
EASY CONTROL VIA TOUCH PANEL

Setting of all parameters centrally in the machine control system, controlled positioning of the forming axis and the stop position.
TOOL CHANGE

Uncomplicated changeover to all ring and pipe diameter sizes.
ERROR-FREE OPERATION

Massive relief for the machine operator.
PERFECT RESULTS

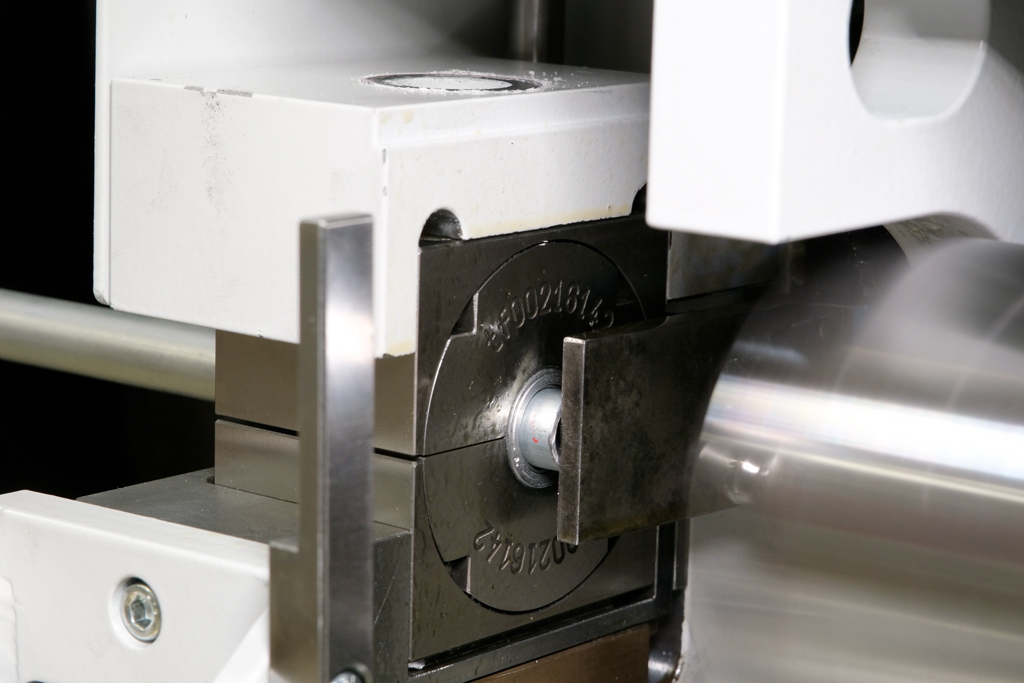

This creates perfect, mirror-smooth sealing surfaces.

Images 1/0

Automatische t form FLARELINE 28 Rohrumformmaschine mit Magazin und Rohrbearbeitungssystem.

EASY CONTROL VIA TOUCH PANEL

Setting of all parameters centrally in the machine control system, controlled positioning of the forming axis and the stop position.

The t form FLARELINE is equipped with a completely electronic preselection of the flanging geometry. The stop position and all strokes and machining operations are servo-electrically controlled and can be called up via a touch panel.

Decisive for the exact machining time is which material is used and which shaping is to be implemented. The machine carries out the processing quasi automatically if it is possible to call up the tube size with the necessary process parameters. In individual cases, the clamping lengths for machining are 1 to 1.5 x the pipe diameter.

Our new generation of t form FLARELINE 28, 42 and 115 machines reduces the set-up time when changing the tools and the operator can set up the machine in less than three minutes.

Watch movie
