transfluid - t bend ROBOLINE

Robot bending technology

Robotergestütztes Busbar-Biegesystem mit KUKA-Industrieroboter und integriertem Biegekopf für die automatisierte Stromschienenfertigung.
  • Seamless and process-optimized - no additional handling required
  • Stable and reliable - Bending on both sides prevents vibrations in long, thin-walled parts. (Automatically integrated high holders stabilize this process)
  • Dynamic and versatile - right and left bending in one clamping operation, thanks to robot head with double-sided direction of rotation

BENDING RETHOUGHT. FAST AND VERSATILE.

t bend ROBOLINE- Automated. Flexible. Future-proof.

The t bend ROBOLINE combines state-of-the-art robot technology with innovative bending performance - especially for long, unstable tubes or busbars that may also have attachments.



Whether complex geometries or variable quantities - the robot bends precisely and takes care of handling at the same time. This system adapts to your production and takes it to a new level of efficiency.



t bend ROBOLINE - bending rethought: fast and versatile.



Machine sizes     Tube sizes

t bend ROBOLINE 186-18 mm Ø
t bend ROBOLINE 226-22 mm Ø

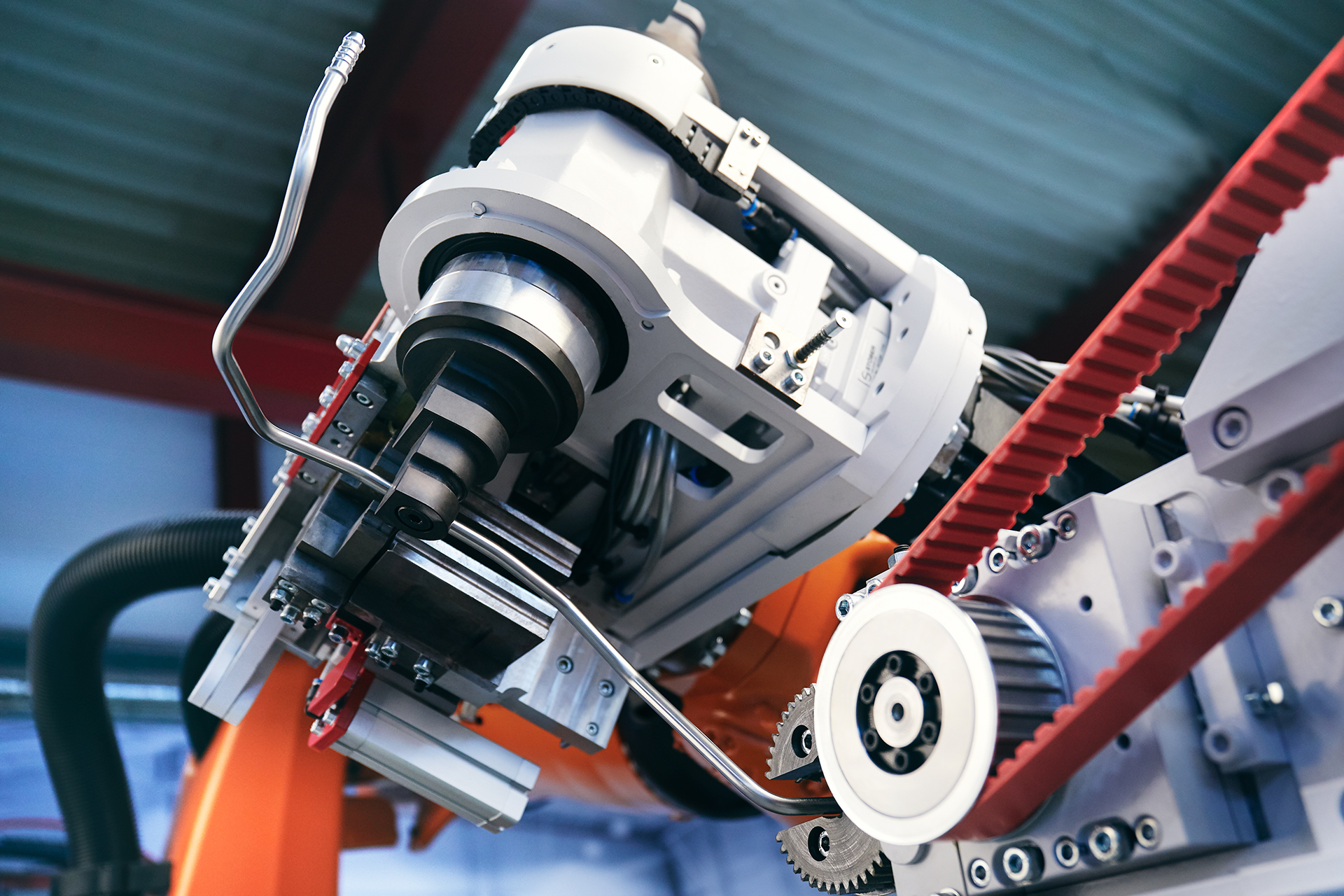

CNC-Biegekopf einer transfluid Rohr- und Busbar-Biegemaschine mit angetriebenem Riemensystem und präziser Werkzeugaufnahme.

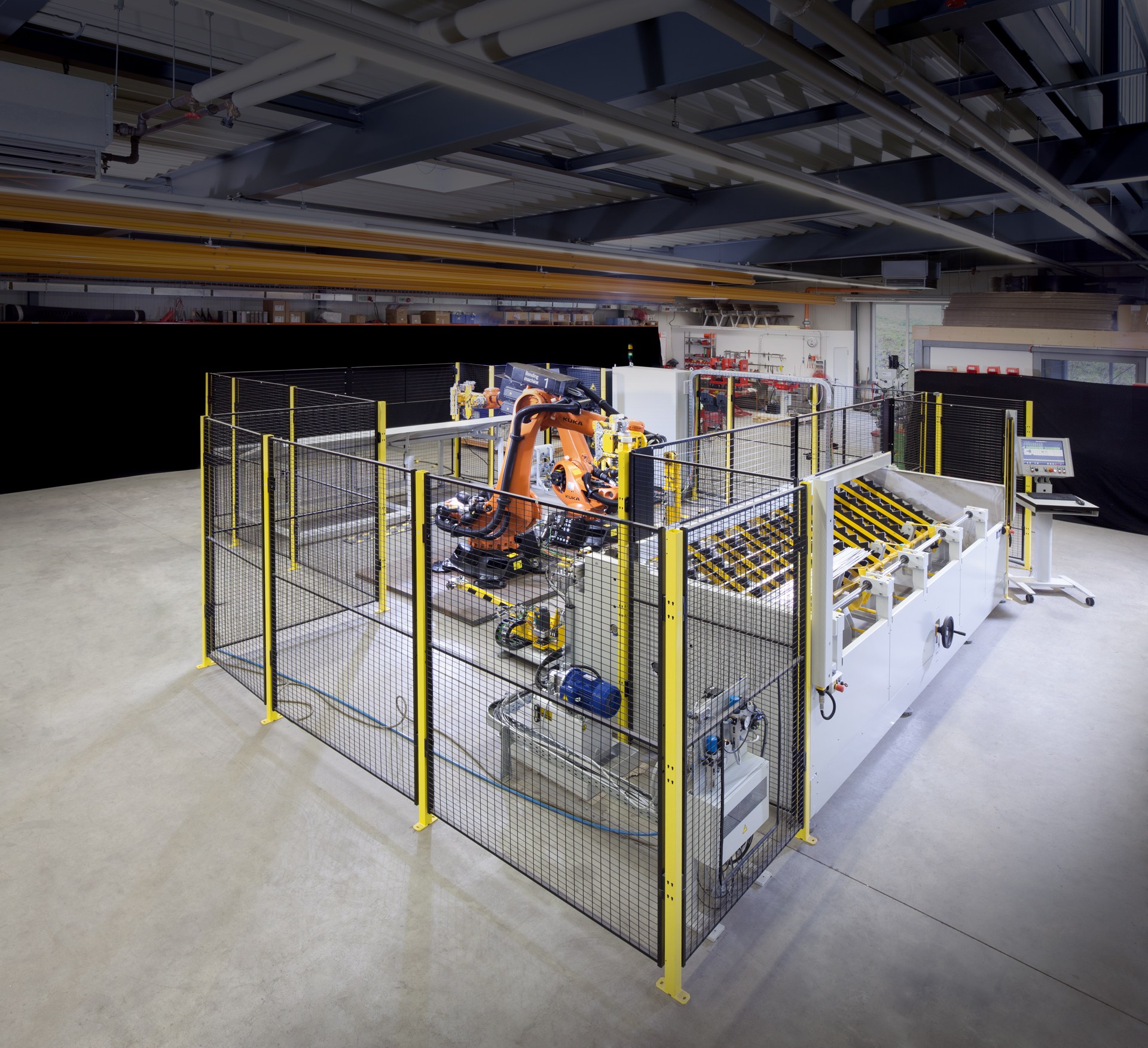

Robotergestützte Rohrbiegezelle mit Industrieroboter, Zuführsystem und Schutzumhausung.

Scalable and modular

From a single station to a production cell with several robot units that can work alternately in parallel.



Thanks to transfluid's innovation and development, a production cell with robot bending machines can not only bend a tube in both directions, but each robot is also able to process a different geometry.



Production with robot bending units makes it possible to bend long tubes largely without vibrations. The set-up process can be extremely minimized by combining bending tools.

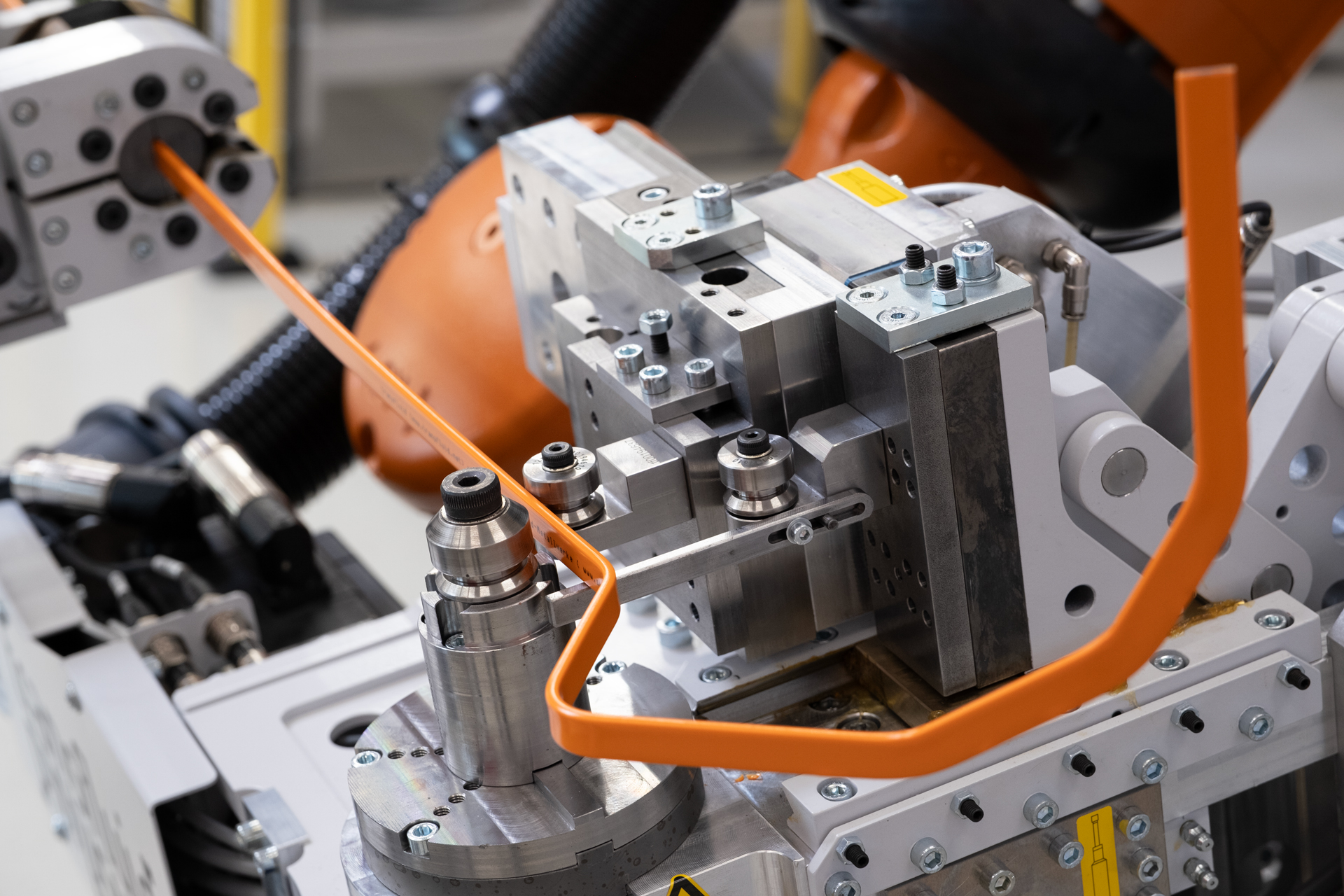

CNC-Biegeeinheit formt präzise Stromschiene in automatisierter Rohrbiegeanlage.

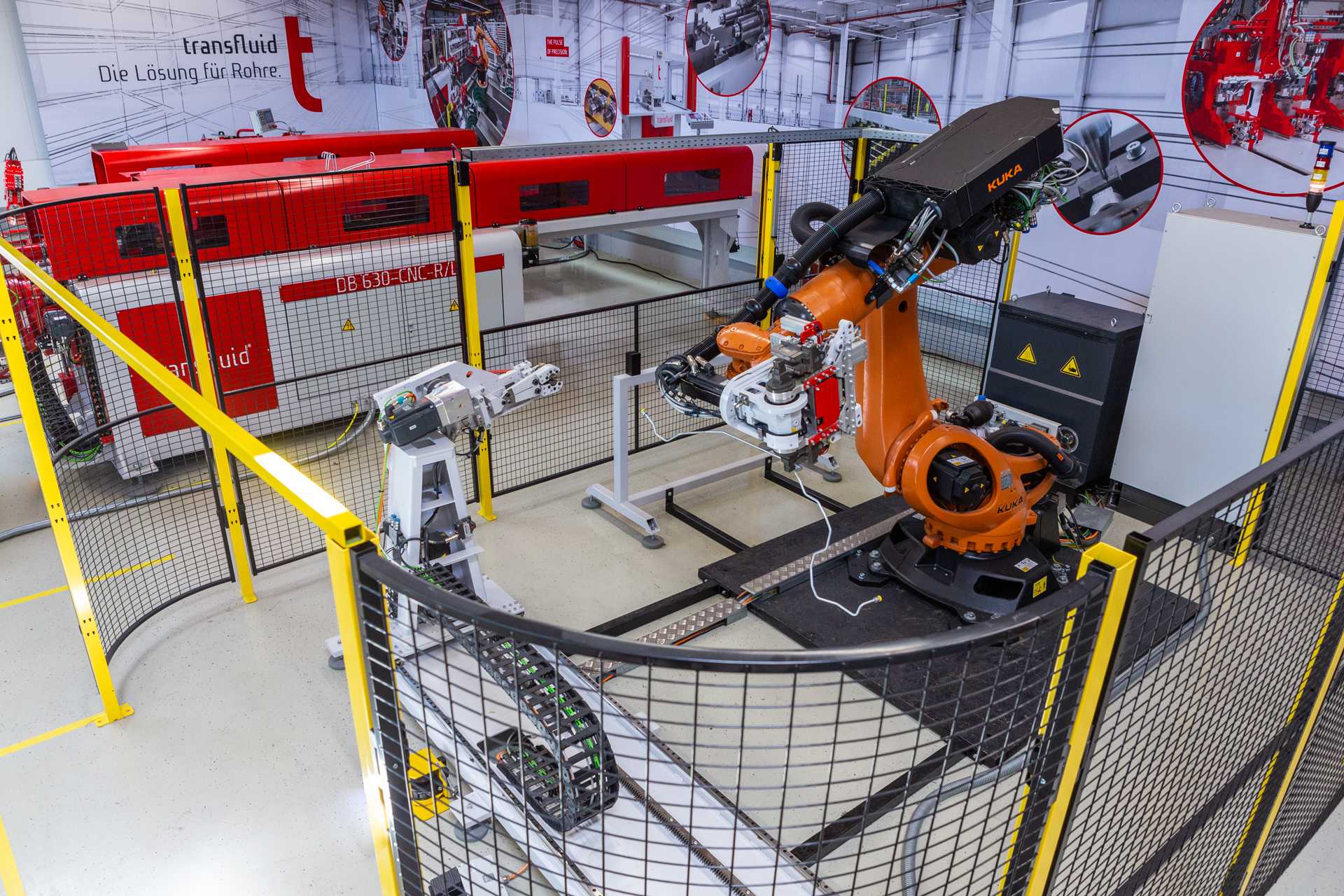

Automatisierte Rohrbiegezelle mit Industrieroboter und CNC-Biegemaschine in moderner Produktionsumgebung.

Robot and machine

The robot takes over handling and bending, even with long tubes or pre-assembled assemblies.



"In a recent project, we had to find a solution and decide whether to install a bending machine and automate it via a robot or use the robot as an additional processing machine," says Stefanie Flaeper (Managing Director of transfluid).



To do this, the engineers at transfluid simply constructed a bending machine on the robot flange. This robot bending machine is able to bend from right to left in a single clamping operation. And it is extremely flexible, especially when long tubes are to be bent or, for example, tube-hose combinations where the hose has already been assembled before the bending process.

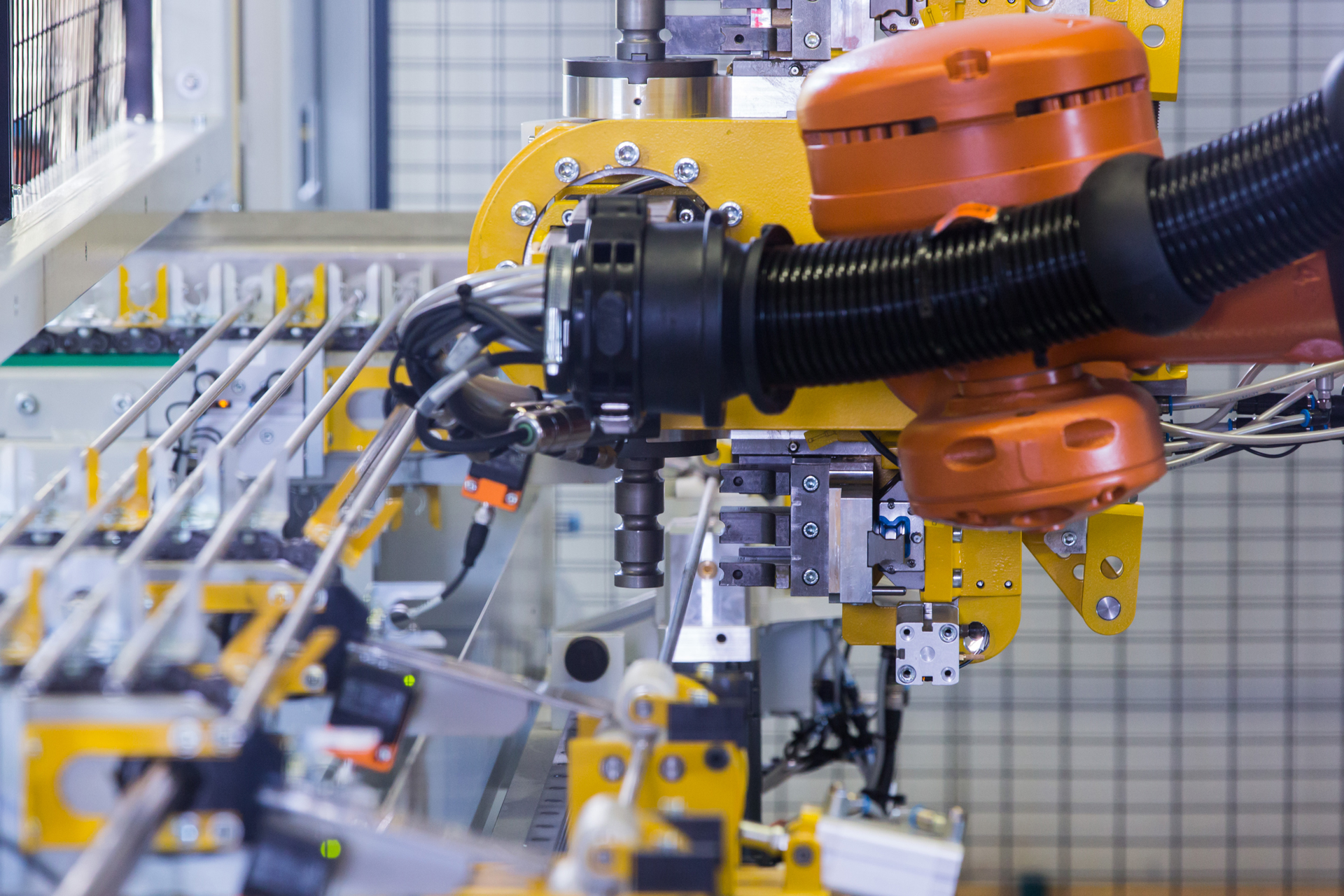

Industrieroboter beim automatisierten Biegen von Metallrohren mit integrierter Werkzeug- und Zuführeinheit.

Stable and reliable

As the bending heads can also be provided with several levels in this way, it is possible to process different tube diameters without changing tools.



The advantage of such a robot bending system is obvious: long tubes can be bent automatically without major vibrations, and the bending speed is kept relatively constant over the entire length. The robot is responsible for handling the tubes from a magazine and transferring them to a storage area after processing. This means that steel tubes up to a diameter of 22 mm can be bent without mandrels.

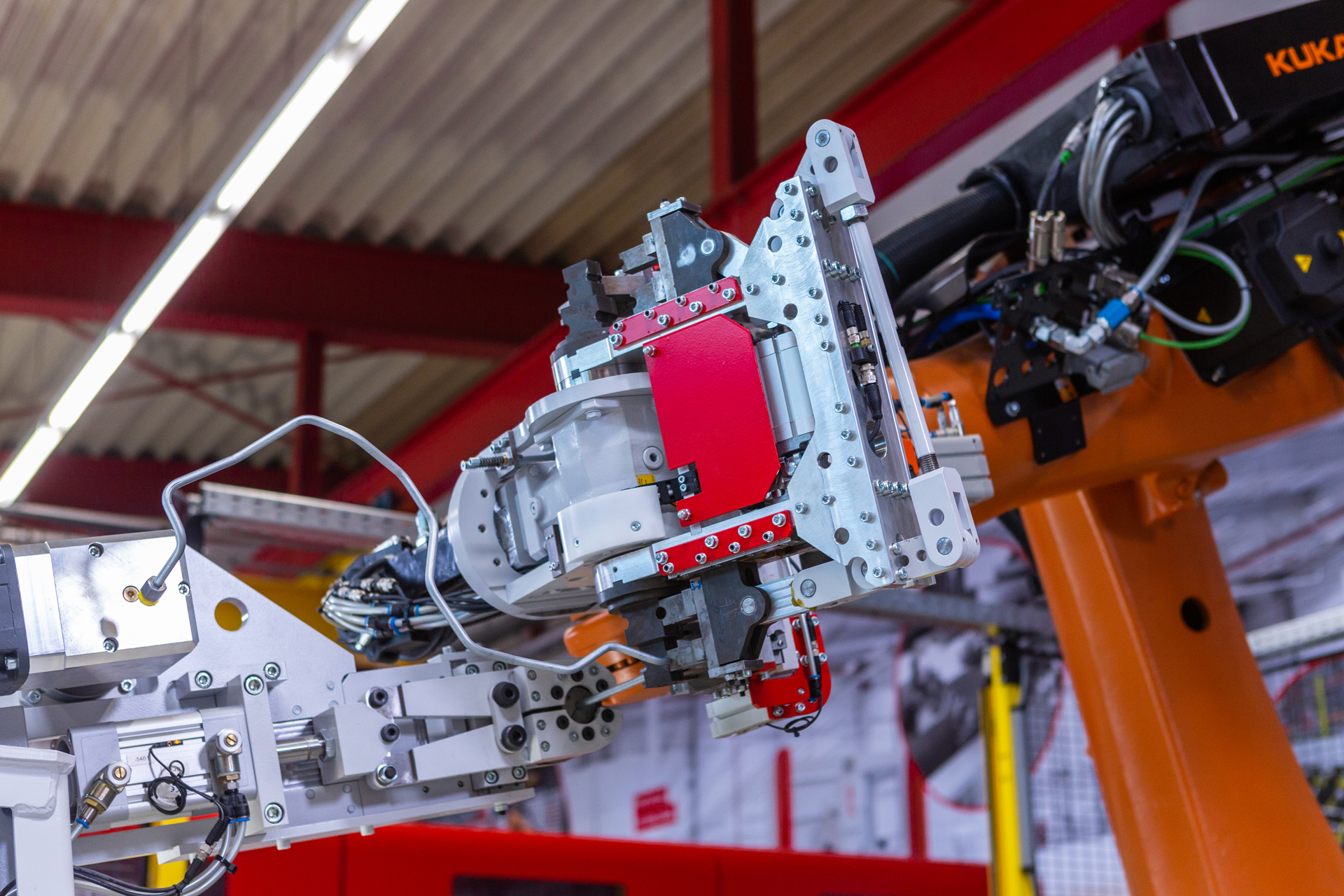

Industrieroboter mit Biegekopf für automatisiertes Rohrbiegen in moderner Produktionsanlage.

Dynamic and versatile

It gets exciting when the workpieces have been processed on both sides beforehand, for example.



The robot can then start bending from both sides. In this way, the transfluid concept opens up the impressive possibility of bending both sides into the final shape without additional length.

Programming was yesterday

"Programming robots is a completely legitimate 'hurdle' for many companies. That's why we've made it easy and it's simply not necessary with our systems with bending robots," emphasizes Stefanie Flaeper. With the transfluid systems, the coordinates are loaded from the CAD and the robot knows how to bend. In addition, connections to measuring systems are possible and manual corrections can be made very easily. This is because the robot is operated via a normal bending machine controller. This makes it possible to use the robot even more economically.
