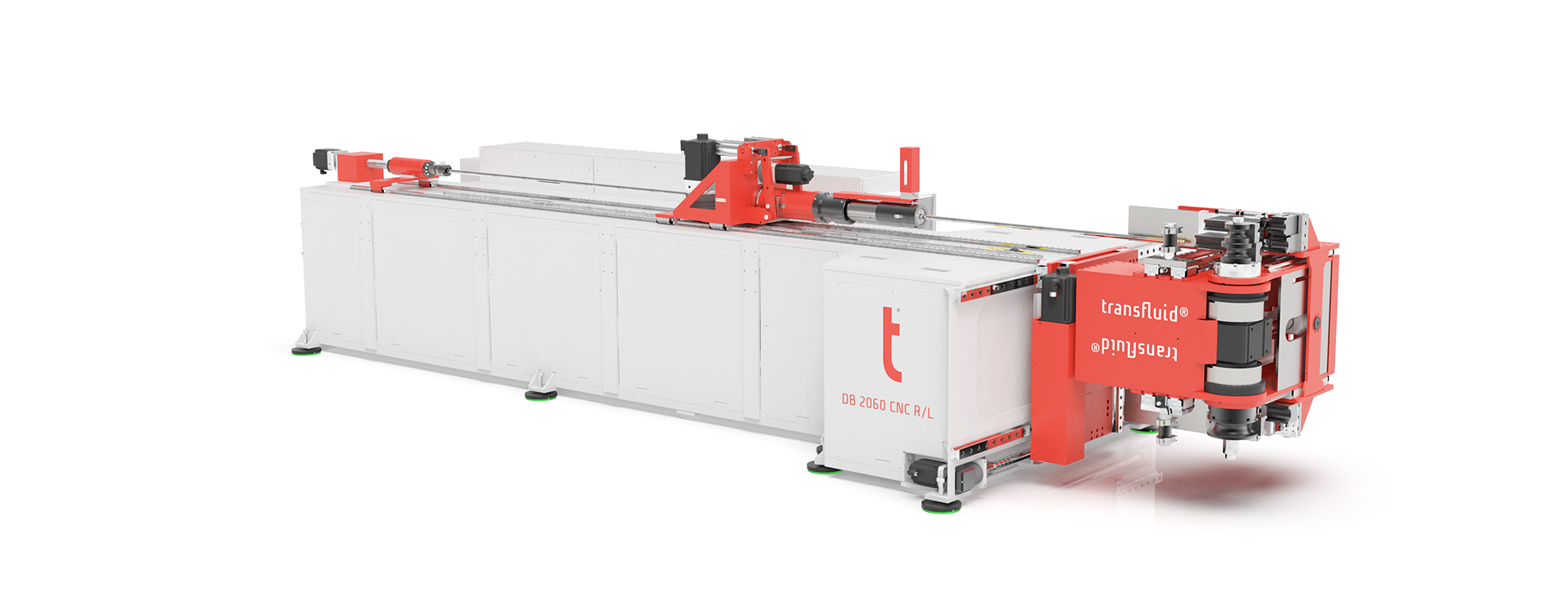

CNC Rohrbiegemaschine transfluid t bend VARIOLINE 60 als 3D Rendering in Gesamtansicht
transfluid - The solution for pipes

ABSOLUTE NOVELTY

IN TUBE BENDING TECHNOLOGY!

Right and left bending

up to ø 70 mm.

To the machine side
Draufsicht auf CNC Rohrbiegemaschine transfluid t bend VARIOLINE 60 beim Biegen eines Metallrohrs.

Powerful, fast and versatile.

The new VARIOLINE 60 t bend CNC mandrel bending machines can be used to bend steel, stainless steel and non-ferrous metal tubes as round tubes or profiles from ø 6-70 mm.



These electrically driven bending machines are designed for the production of large quantities, with efficient energy consumption thanks to economical servo technology. Small and medium wall thicknesses can be processed with perfect bending quality at tight bending radii from 0.8xD.

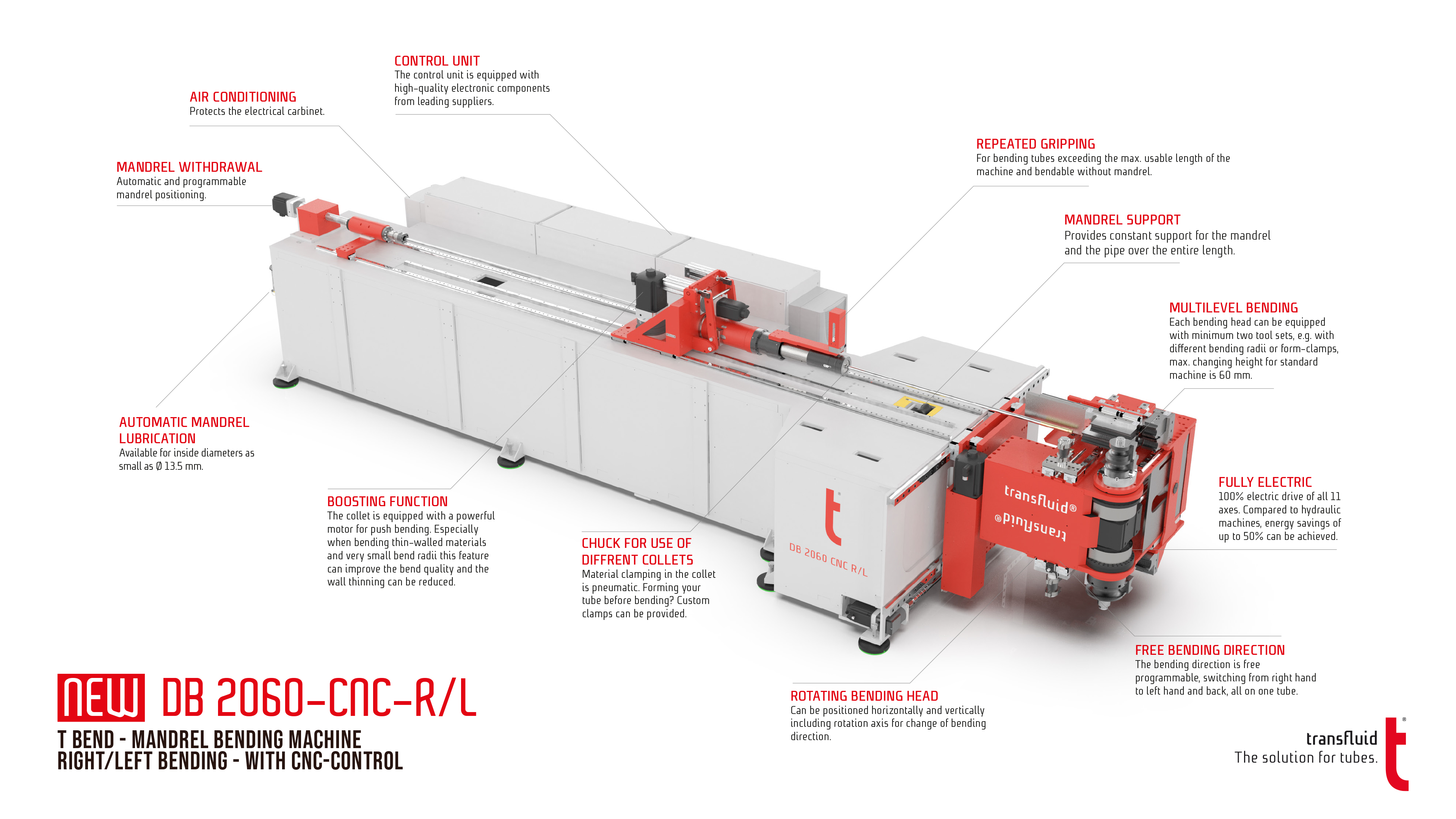

Infografik der CNC Rohrbiegemaschine transfluid t bend VARIOLINE 60 mit Funktionsübersicht.

transfluid - t bend VARIOLINE

Special tool changing systems enable fast changeover times. Extensive accessory options such as segment collets for processing tubes with already formed tube ends, boosting for free-form processing or integrated tube cutting functions enable uncompromising bending options.



All prepared for integration into production cells and "ready for Industry 4.0". With our right/left-hand bending machines - also with free-form function - the most complex bends with high precision become reality.

To the overview

The right machine for your task

Product video Product video
arrow-left
Images /
arrow-right
Product video Product video
arrow-left
Images /
arrow-right
Product video Product video
arrow-left
Images /
arrow-right
Product video Product video
arrow-left
Images /
arrow-right

Mandrel bending machines right/left bending with CNC control

Type: VARIOLINE 22
file Download technical data
Type: VARIOLINE 30
file Download technical data
Type: VARIOLINE 42
file Download technical data
Type: VARIOLINE 60
file Download technical data
Capacities3/16" - 7/8"
Max. Max. capacity7/8" x .72" (mild steel)
7/8" x .049" (stainless steel)
Max. Radius2.6"
Effective lengths6.5 ft (standard)
10 ft 15 ft 20 ft (special)
Bending axis speed300 °/sec.
Capacity3/16" - 1 1/8"
Max. Max. capacity1 1/8" x .72" (mild steel)
1 1/8" x .049" (stainless steel)
Max. Radius3.5"
Effective lengths6.5 ft (standard)
10 ft
15 ft
20 ft (special)
Bending axis speed275 °/sec.
Capacity1/4" - 1 5/8"
Max. Max. capacity1 5/8" x .120" (mild steel)
1 5/8" x .120" (stainless steel)
Max. Radius6.6"
Effective lengths6.5 ft 10 ft (standard)
15 ftmm 20 ft (special)
Bending axis speed180 °/sec.
Capacity1/4" - 2 3/4"
Max. Max. capacity2 3/4" x .154" (mild steel)
2 3/8" x .095" (stainless steel)
Max. Radius7.1"
Effective lengths10 ft (standard),
15 ft,  20 ft (special)
Bending axis speed100 °/sec.
